LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch

LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch
R2,845
The LevelOne IGS-2108 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2108 delivers 8 (10M/100M/1G) RJ45 por... Read More
Stock 3 Code 1432311 Brand LEVELONE Model IGS-2108 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

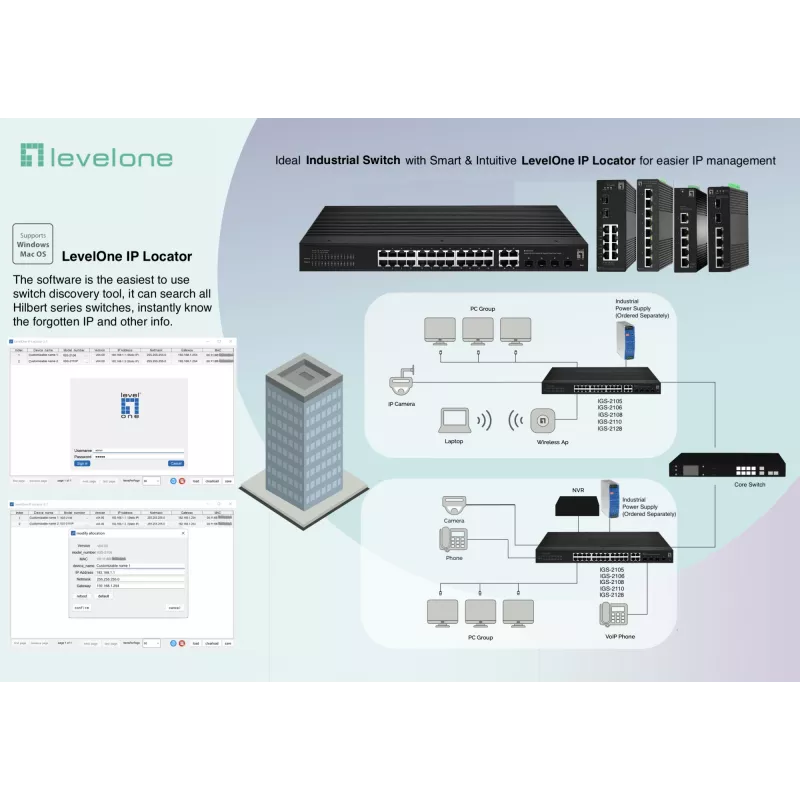

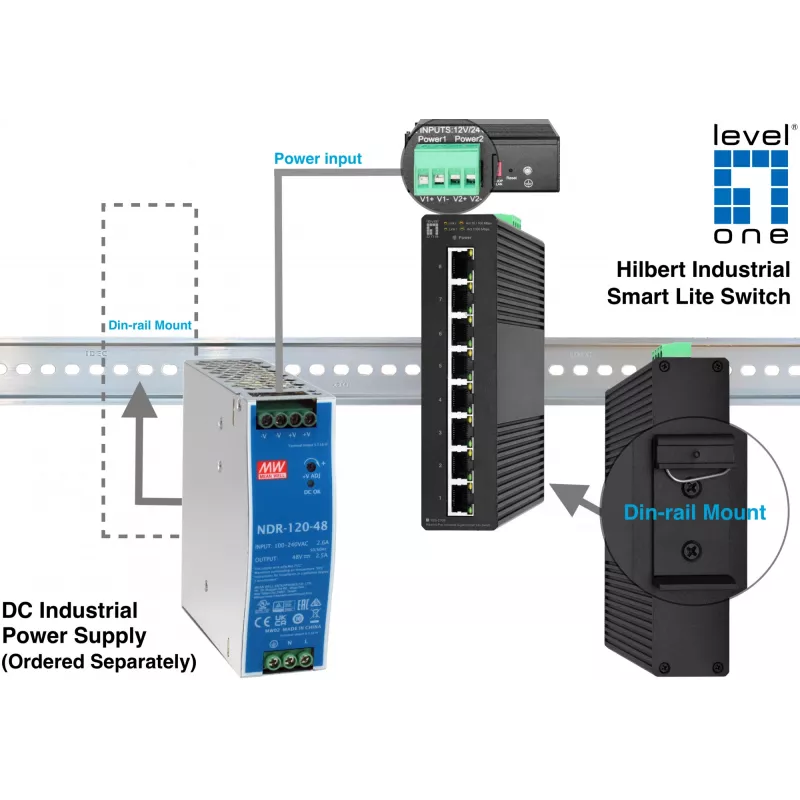

The LevelOne IGS-2108 Hilbert Industrial gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. IGS-2108 delivers 8 (10M/100M/1G) RJ45 ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne IGS-2108 provides high HW performance and environment flexibility for Enterprises. IGS-2108 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

LevelOne Hilbert 8-Port Industrial Gigabit Smart Lite Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE.... DC input voltage: 12 - 57 V

Key Highlights
  • 8 Gigabit Ethernet ports
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Supports 4K MAC address auto-learning and auto-aging
  • 9K jumbo frames to increase data transfer rates
  • IP Multicast Filtering through IGMP Snooping V1 / V2
  • 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
  • IEEE 802.1p QoS with 4 priority queues
  • Supports unknown unicast / broadcast / multicast storm control
  • Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
  • -40°C to 75°C operating temperature range

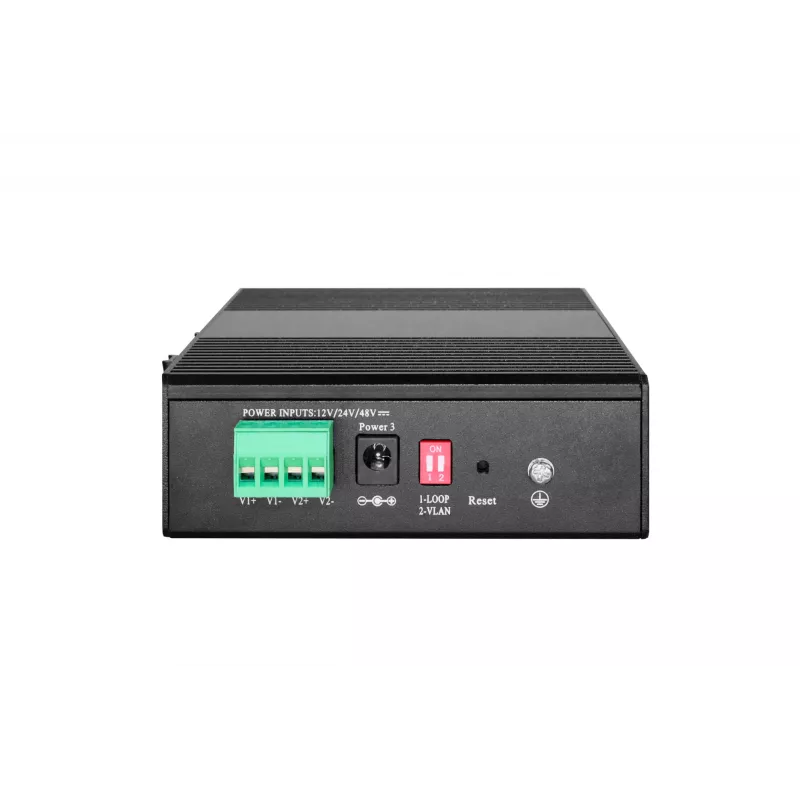

  • Redundant power inputs with Terminal Block
  • 4KV surge protection, 6KV contact / 8KV air ESD protection
  • Web-based and smart lite Management
  • Supports LevelOne IP Locator for easier IP management
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 16 Gbit/s
  • DC
Specifications
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Country of origin
China
DC input voltage
12 - 57 V
Depth
114 mm
DIN rail included
Yes
DIN rail mounting
Yes
Fanless
Yes
Flash memory
2 MB
Flow control support
Yes
Forwarding rate
11.904 Mpps
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
8
Half duplex
Yes
Harmonized System (HS) code
8517620090
Heat dissipation
20.47 BTU/h
Height
38 mm
IGMP snooping
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
International Protection (IP) code
IP30
Jumbo frames
9000
Jumbo frames support
Yes
Layers per pallet (air)
16 pc(s)
LED indicators
Activity, Link, Power
Link aggregation
Yes
MAC address auto-aging supported
Yes
MAC address auto-learning supported
Yes
MAC address table
4000 entries
Master (outer) case gross weight
16 kg
Master (outer) case height
350 mm
Master (outer) case length
395 mm
Master (outer) case width
480 mm
Mean time between failures (MTBF)
43800 h
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Noise level
0 dB
Number of VLANs
32
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 75 °C
Package depth
160 mm
Package height
73 mm
Package type
Box
Package weight
780 g
Package width
230 mm
Packet buffer memory
1.5 MB
Pallet gross height
154.4 cm
Pallet gross length
80 cm
Pallet gross width
120 cm
Port mirroring
Yes
Power consumption (typical)
6 W
Power over Ethernet (PoE)
No
Power protection features
Surge protection
Power source
DC
Power supply included
No
Product colour
Black
Products per master (outer) case
20 pc(s)
Quality of Service (QoS) support
Yes
Queue scheduling algorithms
Priority queuing (PQ)
Quick start guide
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Spanning tree protocol
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Surge protection voltage
4 kV
Sustainability compliance
Yes
Switch layer
L2
Switch type
Managed
Switching capacity
16 Gbit/s
Terminal block included
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
VLAN support
Yes
Web-based management
Yes
Weight
530 g
Width
153 mm
