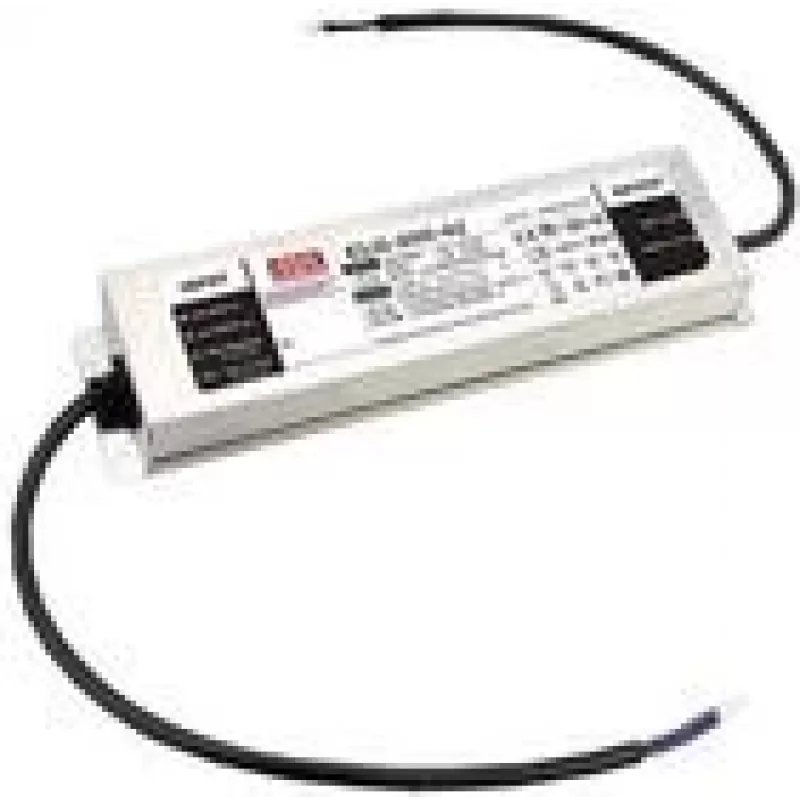

LED driver MEAN WELL ELG-200-48-3Y 200W IP20 100-305V 48V

MEAN WELL ELG-200-48-3Y is an AC-DC single output LED driver combining constant voltage and constant current operation (CV+CC) with active PFC. It accepts a wide input range of 100–305VAC and delivers a fixed 48VDC output at up to 4.16A (200W). The unit has a cable output and compact dimensions for integration into indoor lighting systems; IP20 enclosure rating indicates protection suitable for dry, indoor environments.

Advantages

The ELG-200-48-3Y offers both CV and CC control for stable LED operation and includes power factor correction to reduce mains distortion. Its wide input voltage range makes it compatible with global AC supplies. The fixed 48V output and 200W power capacity allow driving medium- to large-scale LED arrays, while the cable output simplifies wiring during installation. The compact footprint eases placement inside luminaires or junction boxes designed for indoor use.

Suitable for

• Indoor LED panel and strip lighting
• Architectural and commercial indoor lighting fixtures
• Retrofit LED installations requiring 48V supply

Key specifications

• Brand: mean well
• Model: ELG-200-48-3Y (MPN: ELG-200-48-3Y)
• Output: 48VDC, 4.16A (fixed CC/CV), 200W
• Input voltage: 100–305VAC
• Configuration: AC-DC single output, CV+CC with PFC
• Protection rating: IP20 (indoor use)
• Physical size (approx.): 71mm × 244mm × 37.5mm
• Output type: cable output

How to use

Connect the three-wire AC input (live, neutral, earth) to a compatible supply in the 100–305VAC range. Route the DC cable output to the LED load ensuring polarity and connector compatibility. Mount the driver in a dry, indoor location consistent with its IP20 rating and allow adequate ventilation around the unit. Verify that the total LED forward voltage and current requirements do not exceed the fixed 48V/4.16A rating.

Recommendations

Use the ELG-200-48-3Y in indoor lighting applications where a reliable 48V, 200W supply is required. Avoid exposure to moisture or dust beyond IP20 conditions and ensure proper thermal management to maintain performance and longevity.
