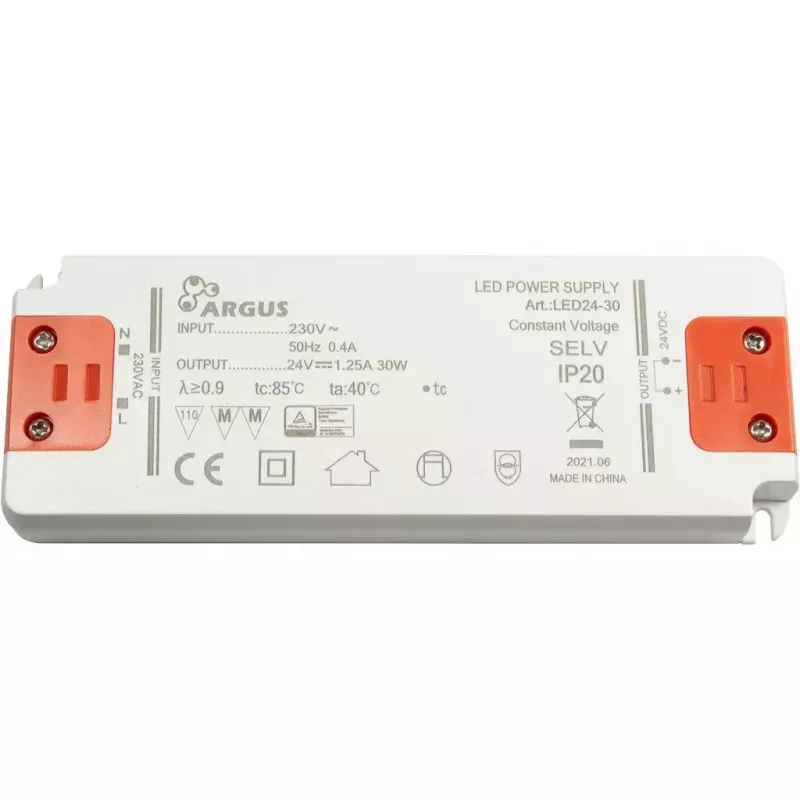

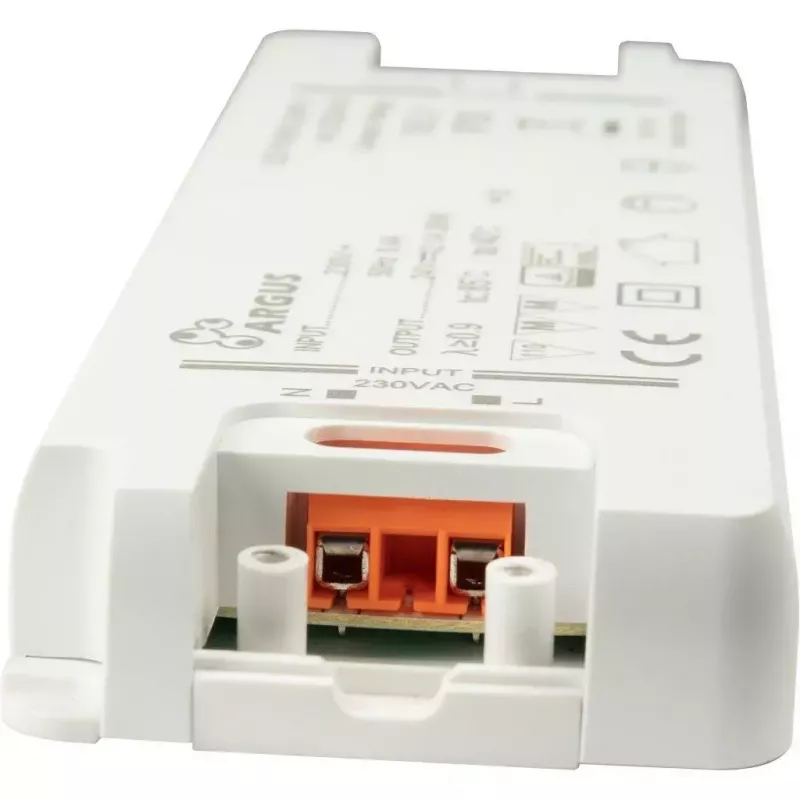

LED Driver Inter-Tech LED24-30 30W IP20 100000h

The Inter-Tech LED24-30 is a 30W LED driver with a 24V output and a constant current rating of 1250 mA. Designed for indoor lighting applications, it features an IP20 protection class, a rated lifetime (MTBF) of 100,000 hours and accepts AC input voltage in the 207–253V range at 50/60 Hz. Its compact dimensions (58 × 160 × 18 mm) make it suitable for installations with limited space.

Advantages

The LED Driver Inter-Tech LED24-30 provides stable 24V output and regulated current for reliable LED operation. It includes five protective circuits to guard connected components against common electrical faults. With IP20 protection and a long MTBF of 100,000 hours, it offers consistent performance and long service life in indoor lighting systems.

Suitable for

• Indoor LED strips and modules requiring 24V and up to 1250 mA
• Under-cabinet and display lighting
• Architectural accent lighting and recessed fixtures
• Small commercial and residential lighting installations

Key specifications

• Power: 30 W
• Output voltage: 24 V
• Output current: 1250 mA
• Input voltage: 207–253 V AC
• Frequency: 50/60 Hz
• Protection class: IP20
• MTBF: 100,000 hours
• Dimensions (W × D × H): 58 × 160 × 18 mm
• Brand: INTER-TECH, MPN: 88882206, EAN: 4260455647014

How to use

Install the LED driver in a dry, well-ventilated indoor location with sufficient clearance for heat dissipation. Connect the AC input to the mains supply within the specified 207–253 V range, and connect the 24V DC output to the LED load observing correct polarity. Ensure the total LED load does not exceed 30 W or the rated 1250 mA. Follow local electrical codes and, if required, have a qualified electrician perform the installation.

Recommendations

Use the driver only in indoor environments protected from moisture and dust (IP20). Avoid overloading the output, provide adequate cooling, and verify compatibility with the connected LEDs to ensure reliable, long-lasting operation.
