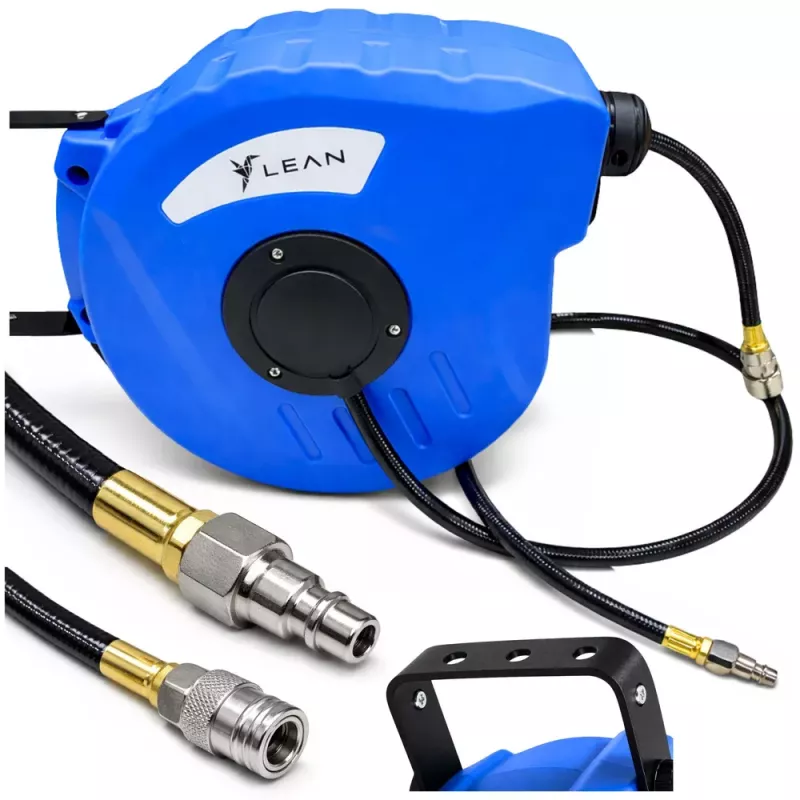

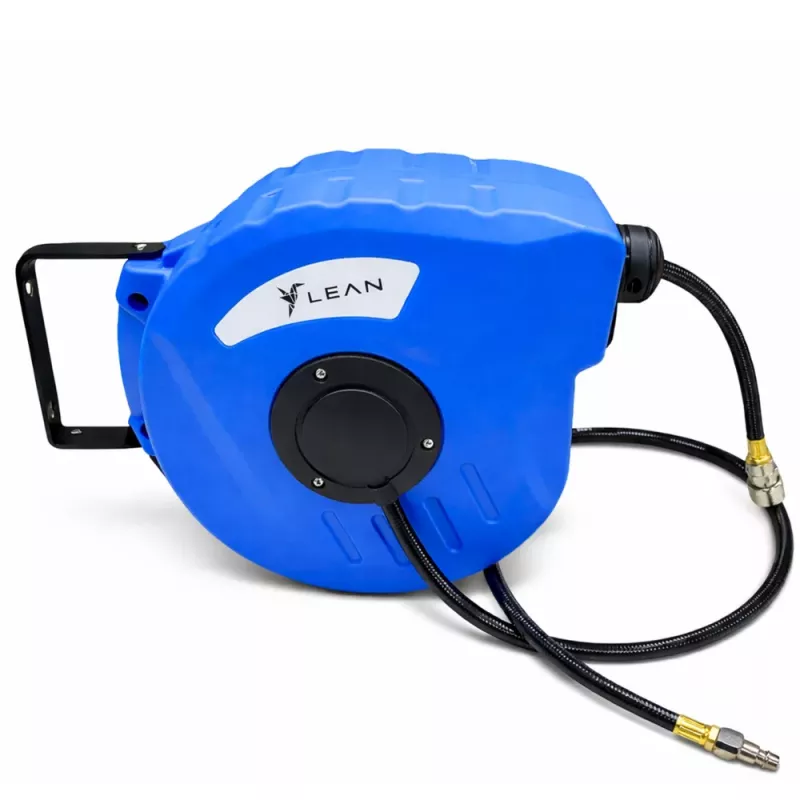

LEAN Pneumatic Hose Reel Automatic 24 Bar 8x12mm 10m

The LEAN Pneumatic Hose Reel Automatic is a high-quality, retractable hose reel designed for efficient compressed air management in workshops and industrial environments. With a 10-meter PVC hose (8x12mm) and a maximum working pressure of 24 Bar, this automatic reel ensures reliable performance and convenience.

Advantages

Automatic retraction with adjustable hose stop for easy storage. Heavy-duty steel spring ensures smooth operation. 180-degree swivel bracket allows flexible wall or ceiling mounting. Quick coupler connections for fast tool changes.

Suitable for

• Compressed air systems
• Pneumatic tools
• Workshops and garages
• Industrial maintenance

Key specifications

• Hose Length: 10 m
• Hose Inner Diameter: 8 mm
• Hose Outer Diameter: 12 mm
• Max Working Pressure: 24 Bar (350 PSI)
• Burst Pressure: 72 Bar (1044 PSI)
• Hose Material: PVC
• Reel Type: Automatic Retractable
• Casing Material: High-Impact Polypropylene
• Inlet Connection: 1/4" BSPT
• Outlet Connection: 1/4" BSPT

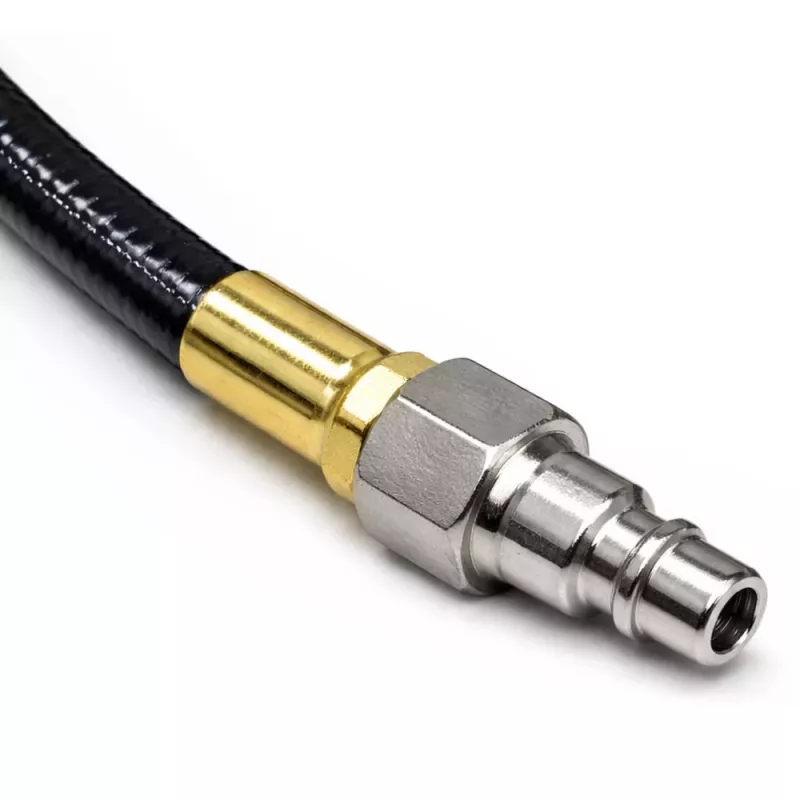

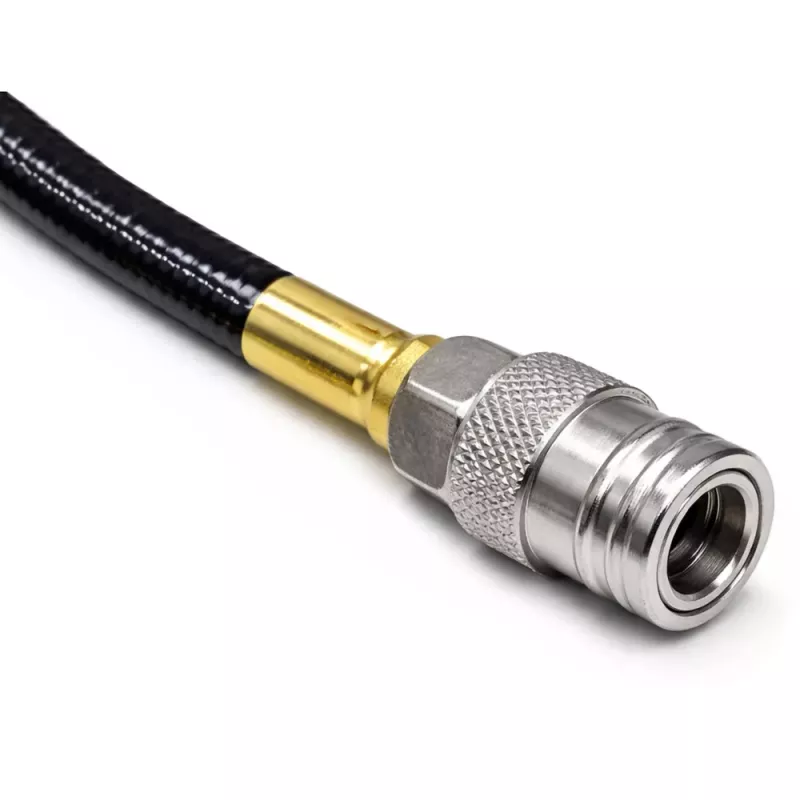

• Hose End Connection: Quick Coupler (Euro Standard)
• Mounting: Wall/Ceiling Mountable

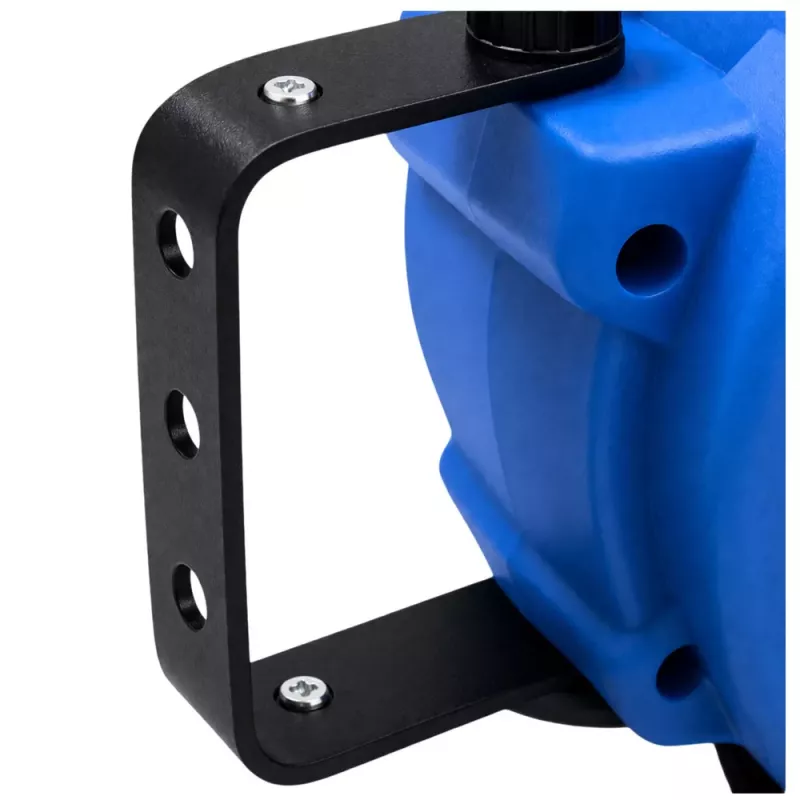

• Swivel Bracket: Yes, 180-degree rotation
• Locking Mechanism: Automatic hose stop at desired length
• Hose Stopper: Adjustable
• Operating Temperature: -5°C to +45°C
• Spring Type: Heavy-Duty Steel Spring

Recommendations

For optimal performance, ensure the reel is securely mounted and the hose is fully extended before use. Regularly check connections for leaks.
