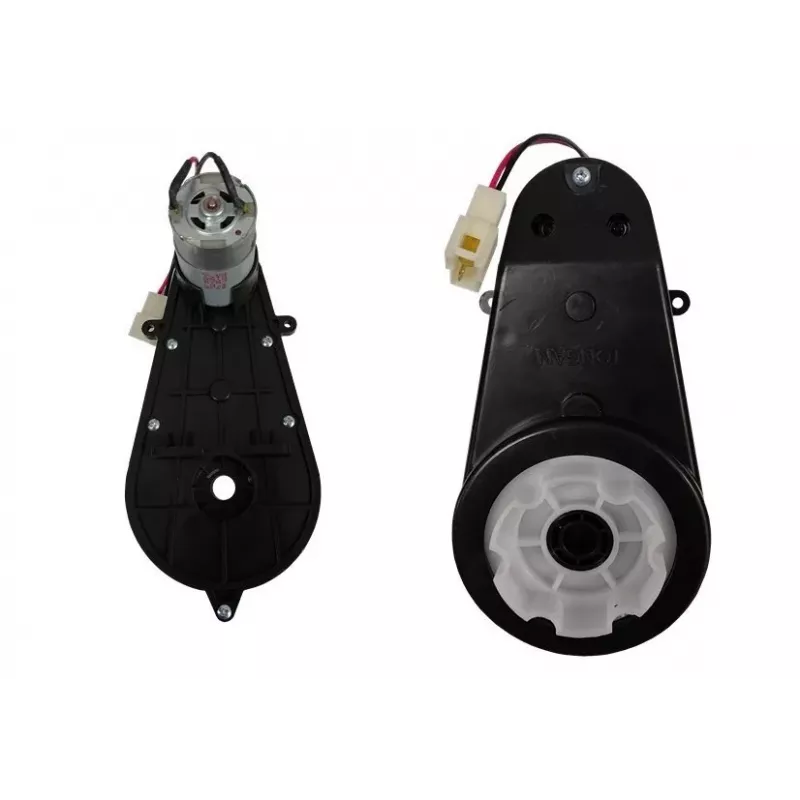

LEAN CARS Motor + Gear Train 12V 12000 RPM

This high-performance motor and gear train assembly from LEAN CARS delivers reliable power for electric ride-on toys, robotics, and automation projects. Designed with a robust RS550 brushed DC motor and an integrated spur gearbox, it provides high torque and controlled output speed.

Advantages

With a no-load motor speed of 12000 RPM and a gear reduction ratio of approximately 80:1, the output shaft delivers around 150 RPM at no load. The rated torque of 12 kg.cm and stall torque of 35 kg.cm ensure strong performance under load. The reversible rotation and D-cut output shaft (12 mm diameter) offer flexible installation. The metal motor body and high-strength plastic gearbox housing provide durability.

Suitable for

• Electric ride-on toys
• Robotics projects
• Automation systems
• DIY motorized applications

Key specifications

• Operating Voltage: 12V DC
• Motor Type: Brushed DC (RS550 Series)
• No-Load Motor Speed: 12000 RPM
• Gearbox Type: Integrated Spur Gearbox
• Gear Reduction Ratio: Approx. 80:1
• No-Load Output Shaft Speed: Approx. 150 RPM
• Rated Torque: 12 kg.cm
• Stall Torque: 35 kg.cm
• No-Load Current: 0.5 A
• Rated Current: 4 A
• Output Shaft Diameter: 12 mm
• Output Shaft Type: D-cut
• Direction of Rotation: Reversible
• Gear Material: Metal/Plastic Composite
• Mounting: Front face mounting holes
• Connector: 2-pin wire leads
• Housing Material: Metal (motor body), High-strength Plastic (gearbox housing)

Recommendations

Ensure proper voltage and current supply. For ride-on toys, verify compatibility with existing drivetrain. Always follow safety guidelines when integrating into projects.
