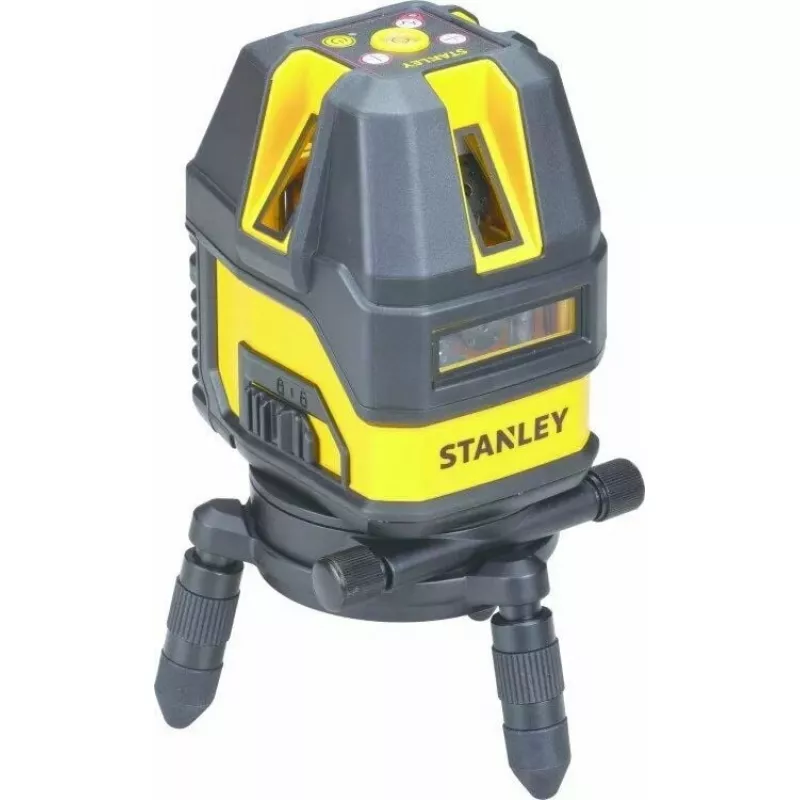

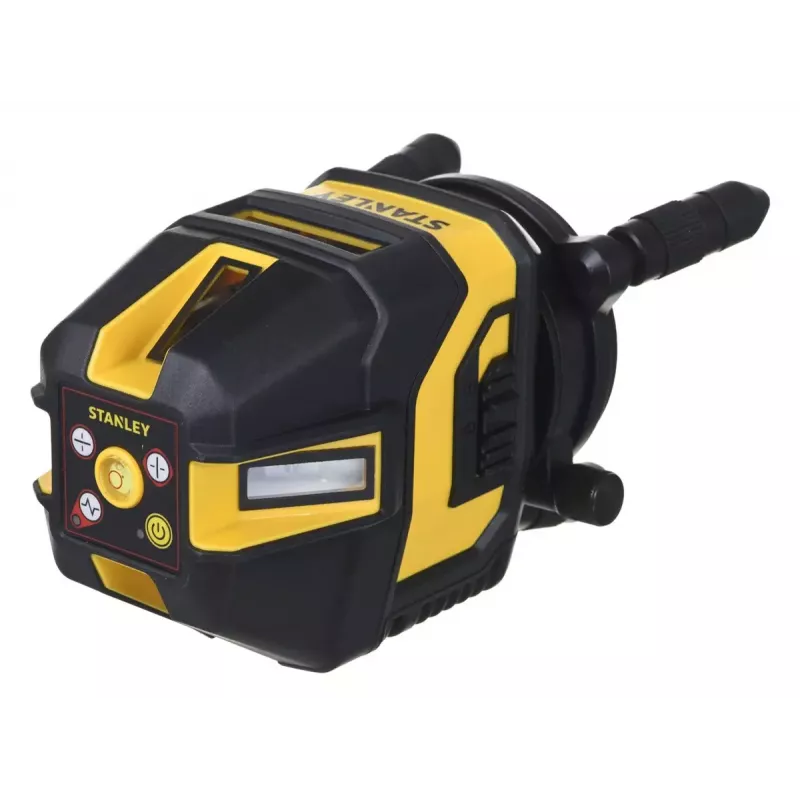

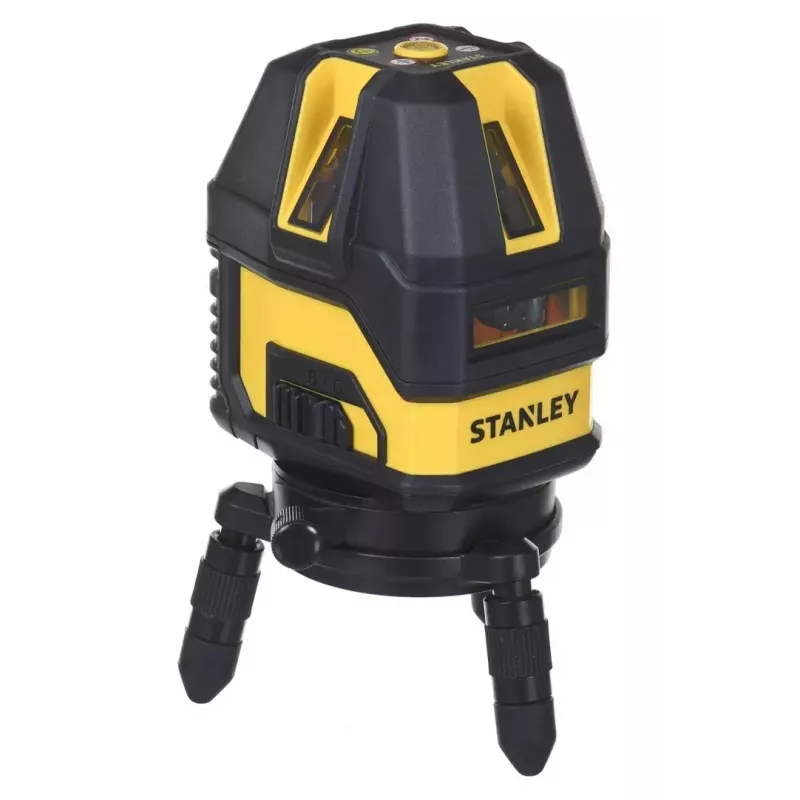

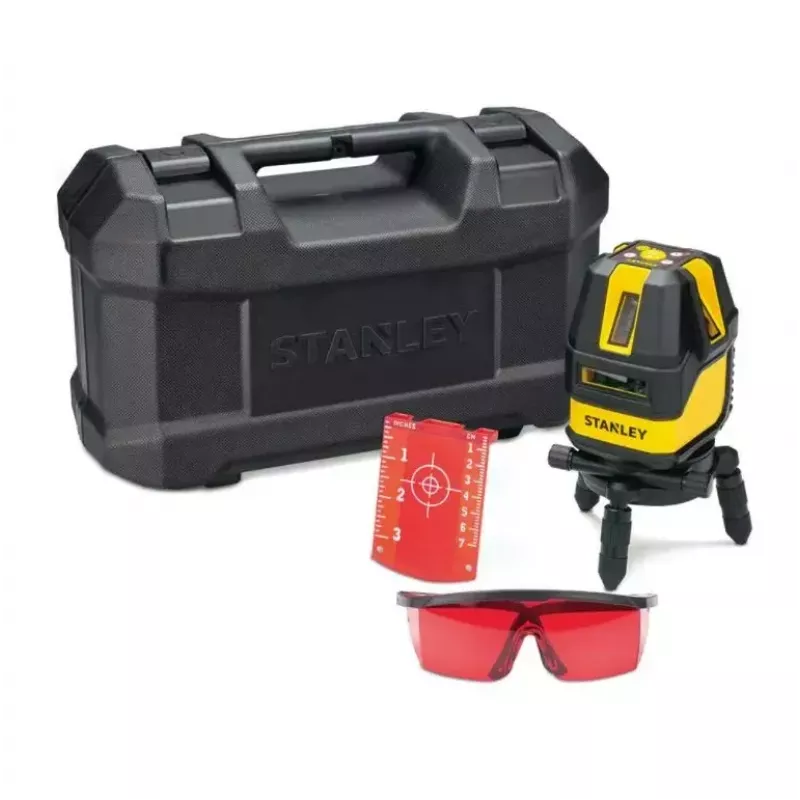

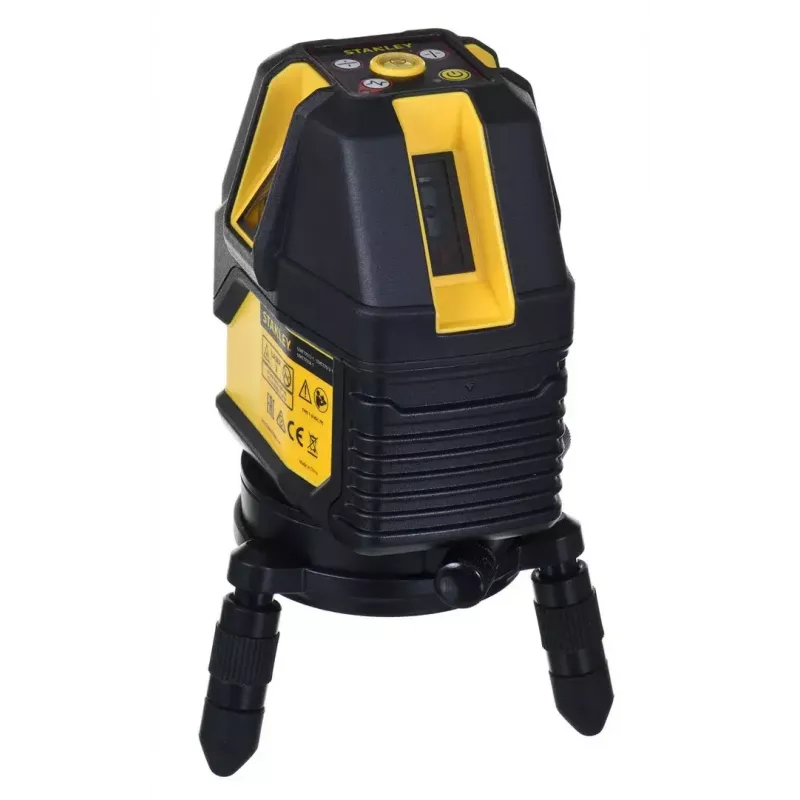

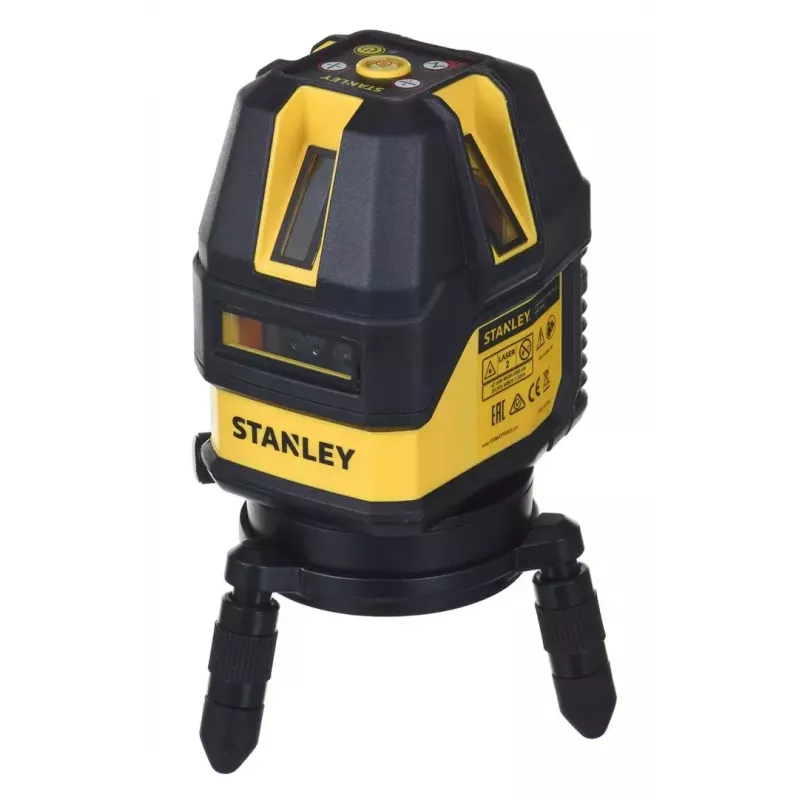

Laser level STANLEY Multi-Line STHT77514-1 — red laser, 4 vertical & 1 horizontal lines

STANLEY Multi-Line STHT77514-1 is a compact red-line laser level that projects four vertical lines and one horizontal line to help with precise layout and alignment indoors. The tool provides visible reference lines for squaring, plumb and level checks, aiding installation of tiles, frames, shelving and partitions. Its compact format and clear red laser lines make repetitive measuring tasks faster and reduce the likelihood of layout errors.

Advantages

The STANLEY Multi-Line STHT77514-1 delivers five projection lines to cover common alignment needs without frequent repositioning. Its red laser is easy to see on typical indoor surfaces and the compact housing supports straightforward handling and placement. By projecting multiple vertical lines along with a horizontal line, the tool simplifies squaring and layout workflows and helps maintain consistent alignment across a work area.

Suitable for

• Aligning wall tiles and floor tiles during installation
• Positioning picture frames, mirrors and wall-mounted fixtures
• Installing shelving and cabinetry that require level and plumb checks
• Marking partition lines and aligning stud positions

Key specifications

• Laser colour: red
• Projection: four vertical lines and one horizontal line
• Intended application: indoor layout and alignment
• Form factor: compact handheld unit

How to use

Place the STANLEY Multi-Line STHT77514-1 on a stable surface or mount it on an appropriate bracket or tripod if available. Power the unit according to the manufacturer’s instructions and position it so the projected lines intersect the start points of your layout. Use the horizontal line for level checks and the vertical lines to establish plumb lines and square references. Move the unit as required to extend alignment across the work area and verify lines against known reference points during installation.

Recommendations

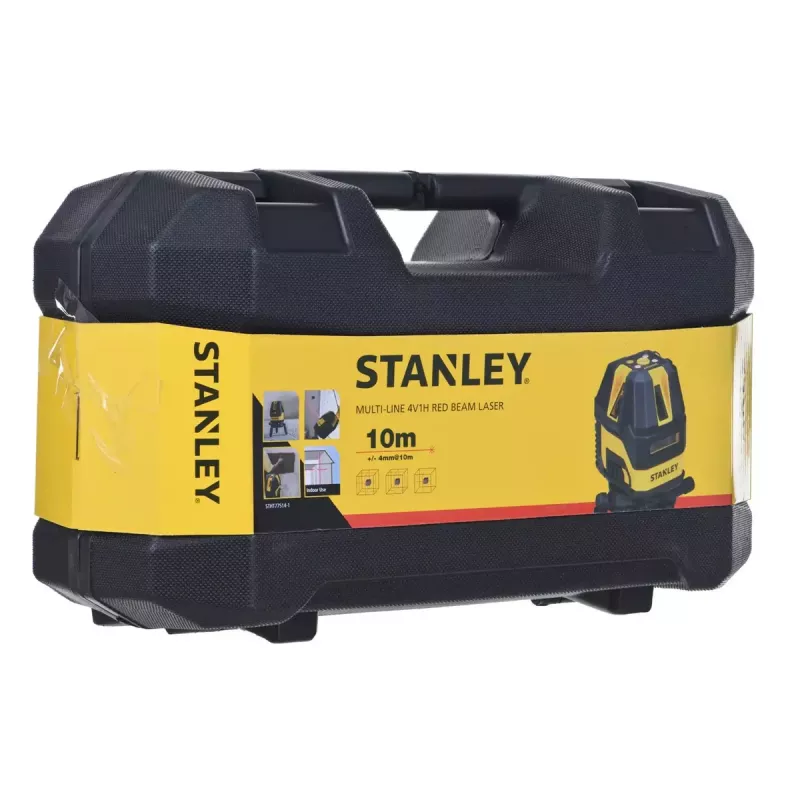

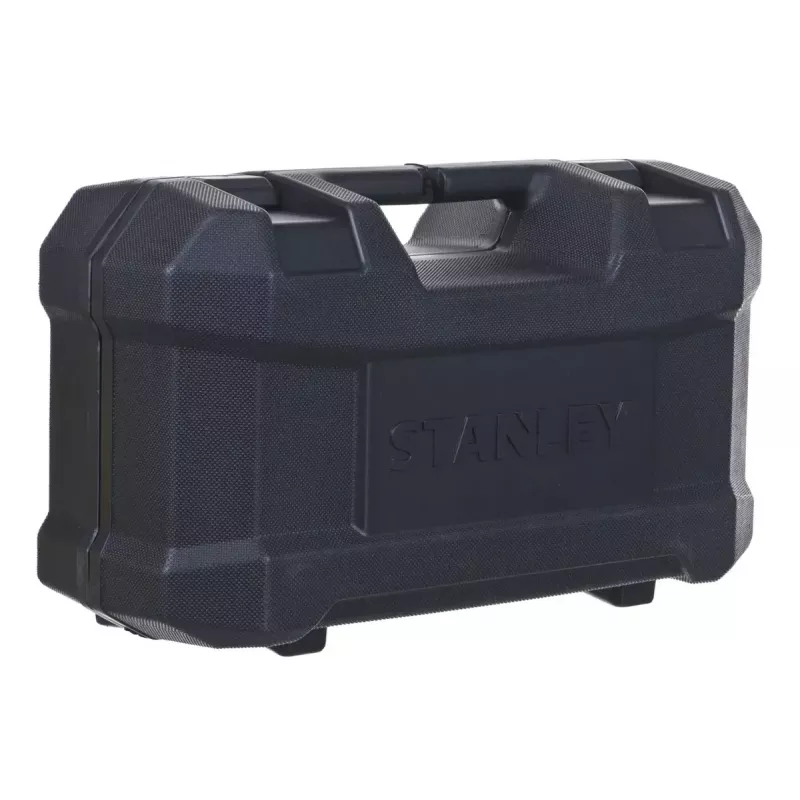

For best visibility indoors, use the red laser lines against moderately contrasting surfaces and avoid direct bright light on the projection area. Verify level and plumb references with a mechanical level or measuring tape when high-precision alignment is required. Store the tool in a protective case when not in use to maintain calibration and prolong service life.
