Laptop Dock Nedis CCBW64230AT02 USB 3.2 Gen 1 Type-C 4K Ultra HD

The Nedis Laptop Dock CCBW64230AT02 is a 6-in-1 USB 3.2 Gen 1 Type-C multi-docking adapter that converts a USB-C connection into HDMI, Ethernet and multiple USB ports. It supports up to 4K Ultra HD at 60Hz for video output, offers a Gigabit Ethernet connection with a data rate of 5000 Mbit/s, and provides Power Delivery charging up to 100 W. The compact anthracite dock includes a 0.2 m connection cable and is compatible with both PC and Mac systems.

Advantages

The dock combines HDMI video output, Gigabit Ethernet and several USB 3.2 Gen 1 ports in a single adapter to reduce cable clutter while maintaining high data-transfer speeds. Dual USB-A and a USB-C data/charging port enable fast data transfer and device charging. USB Power Delivery up to 100 W allows charging of notebooks and other USB-C devices. The device’s support for 4K@60Hz ensures high-resolution external displays are driven smoothly.

Suitable for

• Connecting a laptop to an external 4K monitor or TV
• Wired Gigabit network access for laptops without Ethernet ports
• Data transfer between USB-A/USB-C peripherals and a computer
• Charging laptops or peripherals via USB Power Delivery (up to 100 W)

Key specifications

• Manufacturer: Nedis
• Model: CCBW64230AT02
• Interface: USB 3.2 Gen 1 Type-C
• Video output: HDMI, up to 4K@60Hz
• Ethernet: Gigabit LAN, 5000 Mbit/s

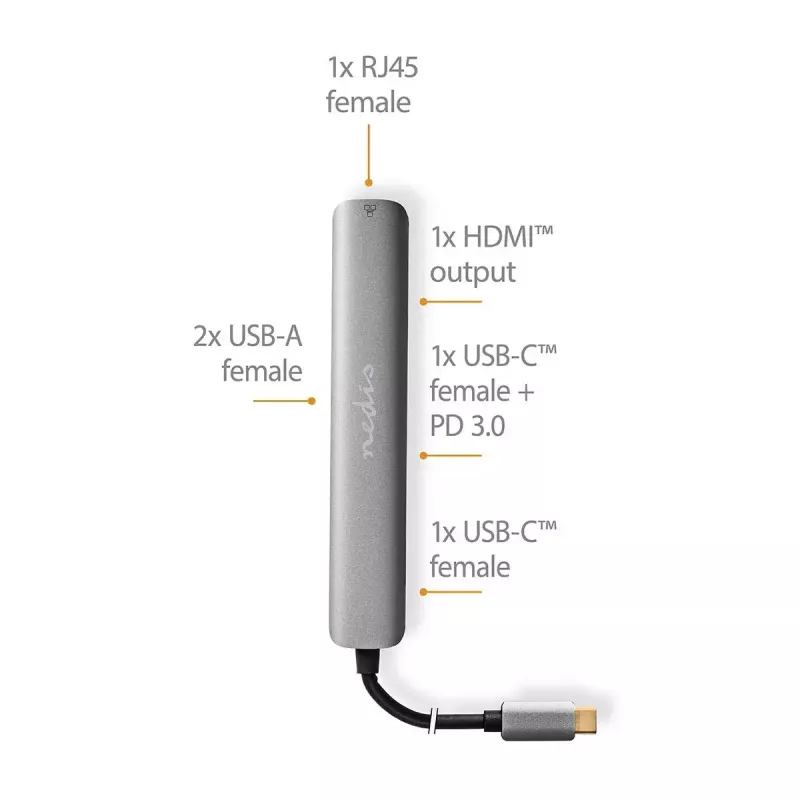

• USB ports: USB-A 3.2 Gen 1 (x2), USB-C 3.2 Gen 1 (data/charging)
• Power Delivery: up to 100 W
• Cable length: 0.2 m
• Colour: Anthracite
• Compatible with: PC and Mac

How to use

Connect the dock’s USB-C cable to a compatible USB-C port on your laptop or host device. Attach an external monitor to the HDMI port to enable video output up to 4K@60Hz, connect a network cable to the Ethernet port for wired internet access, and plug USB devices into the USB-A or USB-C ports for data transfer or charging. If required, connect the host’s USB-C power adapter to enable Power Delivery charging to the laptop or connected devices.

Recommendations

For optimal video performance use a high-quality HDMI cable rated for 4K@60Hz and ensure the host device’s USB-C port supports DisplayPort Alt Mode and sufficient Power Delivery if you intend to charge the laptop while using external displays.
