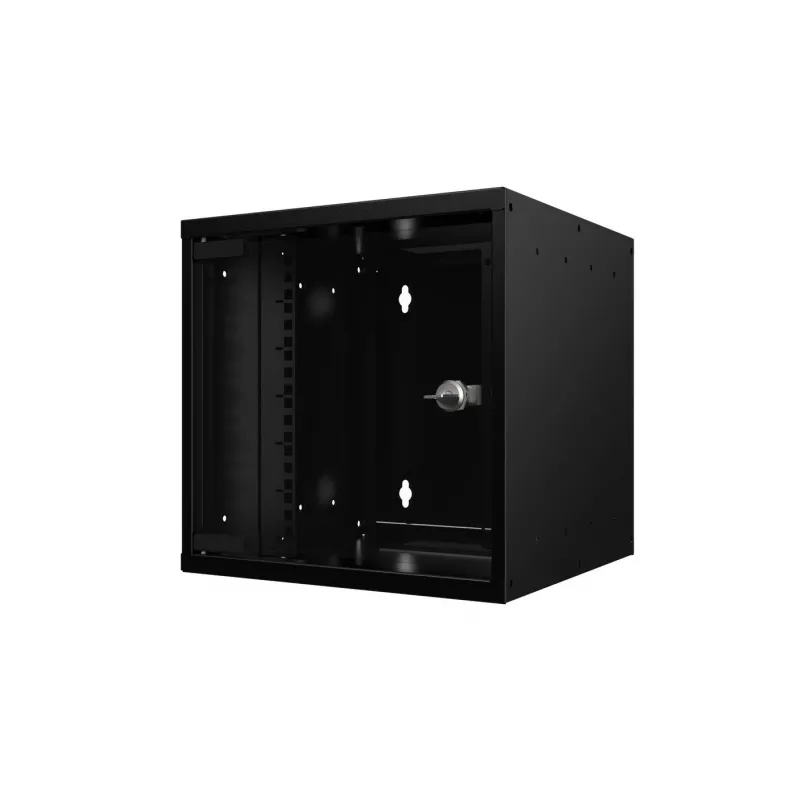

Wall mounted rack LOGON RSM09U30MNBL Black Key lock

The LOGON RSM09U30MNBL is a compact wall-mounted network cabinet in black, designed to house and protect networking equipment in small installations. It combines a low-cost design with a robust steel structure and an aesthetic smoked glass front door with full-length locking.

Advantages

The front door is made of 4 mm smoked, antistatic, tempered glass that resists fracture and provides a locked, full-length closure. The door opening direction can be changed easily and it uses a cylindrical barrel key lock for secure access. A U-type threaded hinge system ensures stable door mounting. Cable entry points are available on both the top and bottom chassis, one fitted with a cable brush and the other with a PVC cover to minimize dust ingress where cables enter.

Suitable for

• Small office or home networking racks
• Wall-mounted installations for switches, patch panels and small servers
• Environments requiring locked, space-saving equipment storage

Key specifications

• Model: LOGON RSM09U30MNBL
• Brand: Lanview
• MPN: RSM09U30MNBL
• EAN: 5420016847096
• Size (imperial): 10"
• Width: 306 mm
• Depth: 300 mm
• Height: 305 mm
• Colour: Black
• Front door: 4 mm smoked tempered antistatic glass
• Lock: Cylindrical barrel key lock

How to use

Mount the cabinet securely to a suitable wall using appropriate fixings for the wall material and the cabinet weight. Install networking equipment on the internal mounting rails and route cables through the top or bottom entry points. Use the cable brush or PVC cover to position cable entry and reduce dust ingress. Lock the front door with the supplied key when access is not required.

Recommendations

For safe operation, ensure the wall mount fixings and the wall itself can support the loaded cabinet. Allow adequate ventilation around installed equipment and avoid placing heavy or heat-generating devices that exceed the cabinet’s intended use.
