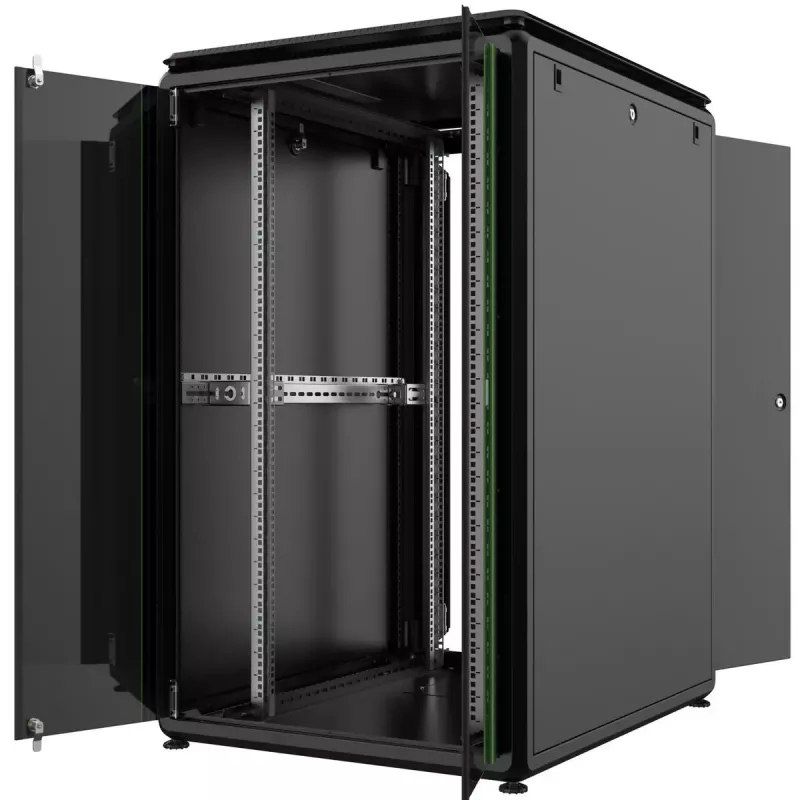

LANVIEW RDL26U81BL 26U 19-inch Free Standing Rack Cabinet, 600x800x1330 mm, Black, IP20, 600 kg

Server rooms and network closets need a rack cabinet that combines strength, security, and easy cable management. The LANVIEW RDL26U81BL is a free-standing 26U enclosure built for indoor IT installations, offering a 600 kg static load capacity and IP20 protection. Its 600 mm width fits standard 19-inch equipment, while the 800 mm depth and 1330 mm height provide ample space for switches, patch panels, and rackmount servers.

Key specifications

• 26U rack capacity, 19-inch mounting width
• External dimensions: 600 mm (W) x 800 mm (D) x 1330 mm (H)
• Static load capacity: 600 kg
• IP20 protection rating for indoor use
• Cold rolled steel construction with powder-coated black finish (RAL 9005)
• Lockable front door with full-size tempered anti-static 4 mm smoked glass
• Removable rear door with barrel lock
• Removable and lockable side panels
• Adjustable depth 19-inch mounting rails
• Top and bottom cable entry with brush strips
• Passive ventilation with provision for fan units
• Included accessories: leveling feet, castors, cage nuts, keys
• Flat-pack design for economical transport and storage
• Compliant with EIA-310-D and IEC 60297-2

Why choose it

The cabinet's rigid steel frame assembles quickly with simple tools, and adjustable rails let you configure depth to match your equipment. Integrated vertical cable managers, a wide bottom entry with rubber-edged sliding module, and tie-up side brackets keep cables organized and protected. Lockable doors and side panels secure your hardware, while the smoked glass front allows visual monitoring without opening the cabinet.

Ideal use cases

• Small to medium server rooms and network closets
• Cabinetizing switches, patch panels, and rackmount servers
• Indoor IT installations requiring IP20 protection

Good to know

The flat-pack design reduces shipping volume and cost, and the cabinet can be easily disassembled for relocation. Castors and leveling feet are included for mobility and stable placement. Passive ventilation keeps airflow moving, and optional fan units can be added for active cooling.
