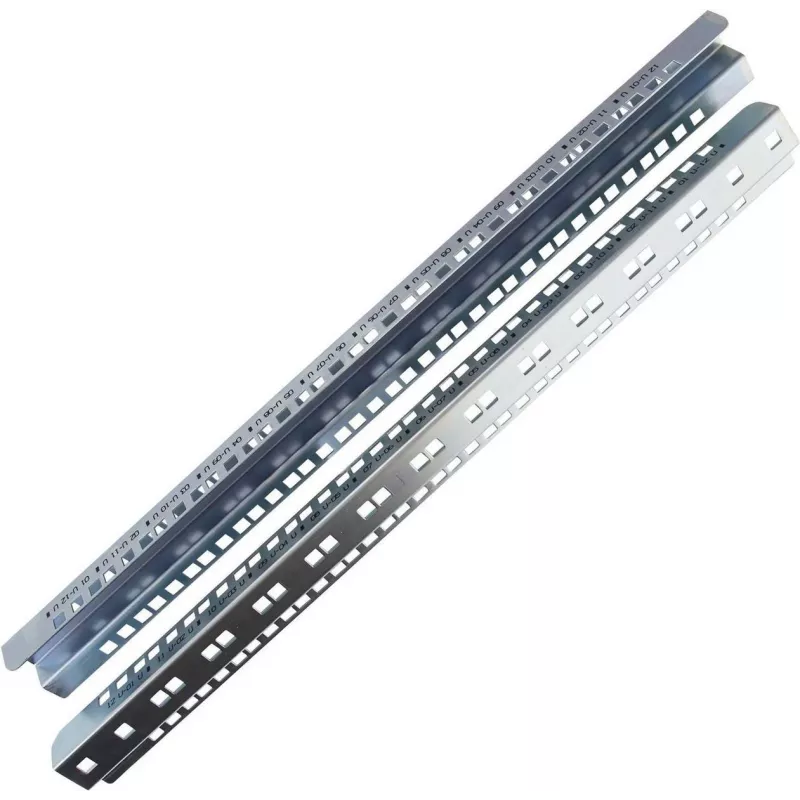

Rack rail kit LOGON RAX410 Stainless steel 48.3 cm

The LOGON RAX410 rack rail kit is a stainless steel mounting accessory for 19-inch racks. It is intended for secure installation of equipment in Wall Type and Free Standing LOGON cabinets and provides high resistance and carrying capacity thanks to its twisted structure. The kit includes two rails with a length of 48.3 cm, a width of 50 mm and a depth of 30 mm, manufactured from durable stainless steel.

Advantages

The stainless steel construction ensures corrosion resistance and long service life. The twisted-profile design increases mechanical strength and load-bearing capacity. The kit contains two matching rails for symmetrical mounting and is compatible with standard 19-inch rack cabinets produced by LOGON.

Suitable for

• Mounting servers and network switches in 19-inch racks
• Installation of patch panels and power distribution units (PDUs)
• Use in Wall Type and Free Standing LOGON cabinets
• Data centers, server rooms and telecom closets

Key specifications

• Brand: Lanview
• Model / MPN: RAX410
• EAN: 5420016848246
• Material: Stainless steel
• Length: 48.3 cm
• Width: 50 mm
• Depth: 30 mm
• Pack quantity: 2 pieces
• Compatibility: 19-inch rack, LOGON Wall Type and Free Standing cabinets

How to use

Position each rail inside the 19-inch cabinet aligned with the mounting holes, then secure using appropriate rack screws and cage nuts for the cabinet model. Ensure both rails are aligned at the same height and depth to provide even support for the equipment. After fastening the rails, mount the device onto the rails following the equipment manufacturer's instructions.

Recommendations

Use compatible M6 or 10-32 rack screws and, if needed, cage nuts supplied with your cabinet. Verify load limits of the cabinet and distribute equipment weight evenly across both rails. Inspect rail fastenings periodically to ensure secure mounting.
