Rack plinth LOGON RAP105BL Black Metal 48.3 cm 570 mm 770 mm

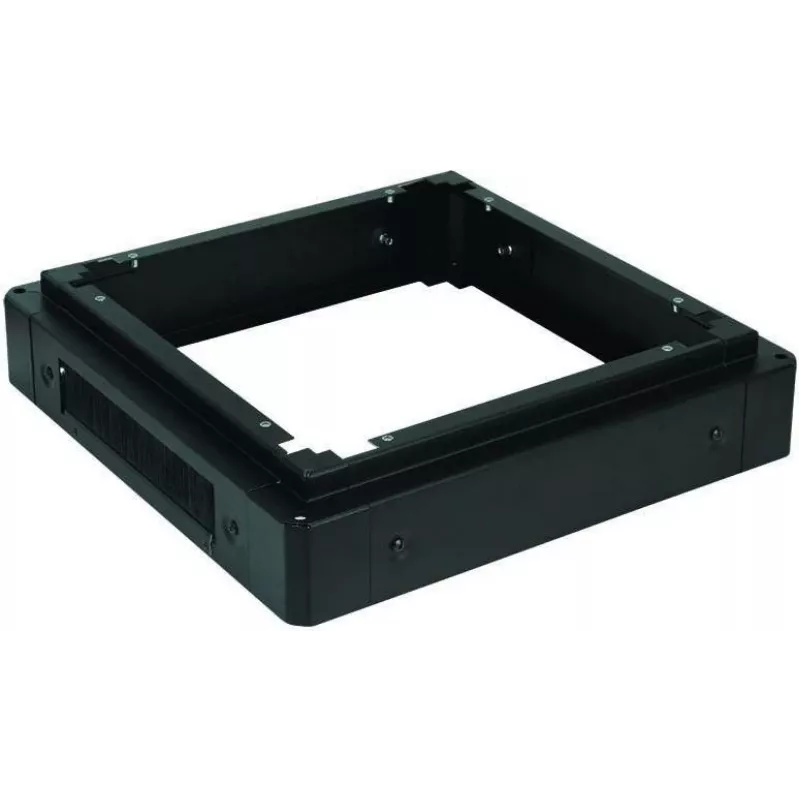

The LOGON RAP105BL rack plinth is a modular metal base designed to raise server or network cabinets 100 mm above the floor while providing additional space for cable routing underneath. Constructed from durable black metal, this plinth supports stable installation of rack-mounted equipment and helps manage cable entry and exit points.

Advantages

The plinth offers high mechanical strength and a fully closed front and side profile for a neat appearance. A brushed cable entry hole at the rear allows organized cable inlets and outlets without compromising the cabinet’s structural integrity. Its modular design simplifies installation and integration with standard rack systems.

Suitable for

• Data centre and server room racks
• Network cabinets in office environments
• Telecom and equipment closets requiring raised cabinets
• Installations where under-cabinet cable routing is needed

Key specifications

• Brand: Lanview
• Model: RAP105BL
• Height: 100 mm
• Width: 48.3 cm
• Depth: 570 mm (front-panel width) / 770 mm (cabinet depth compatibility)
• Material: Black metal
• MPN: RAP105BL
• EAN: 5420016845146

How to use

Position the plinth beneath the cabinet base so the cabinet’s feet align with the plinth mounting points. Secure the cabinet to the plinth according to the cabinet manufacturer’s instructions, using appropriate fasteners. Route network and power cables through the brushed cable entry hole at the rear of the plinth to keep cables accessible and protected beneath the cabinet.

Recommendations

Use the plinth on level, solid flooring and verify load capacity compatibility with the cabinet and equipment weight. Ensure cables are properly bundled and protected where they pass through the brushed entry to avoid abrasion. Follow all safety and grounding practices specified for your rack and equipment.
