Lanview LVN122510 networking cable Orange 500 m Cat7 S/FTP (S-STP)

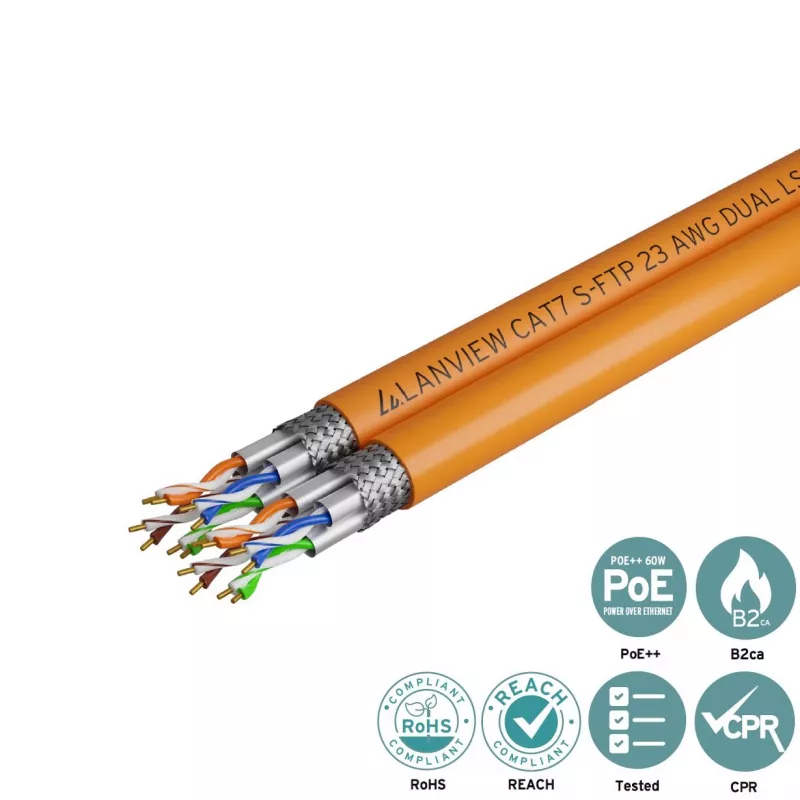

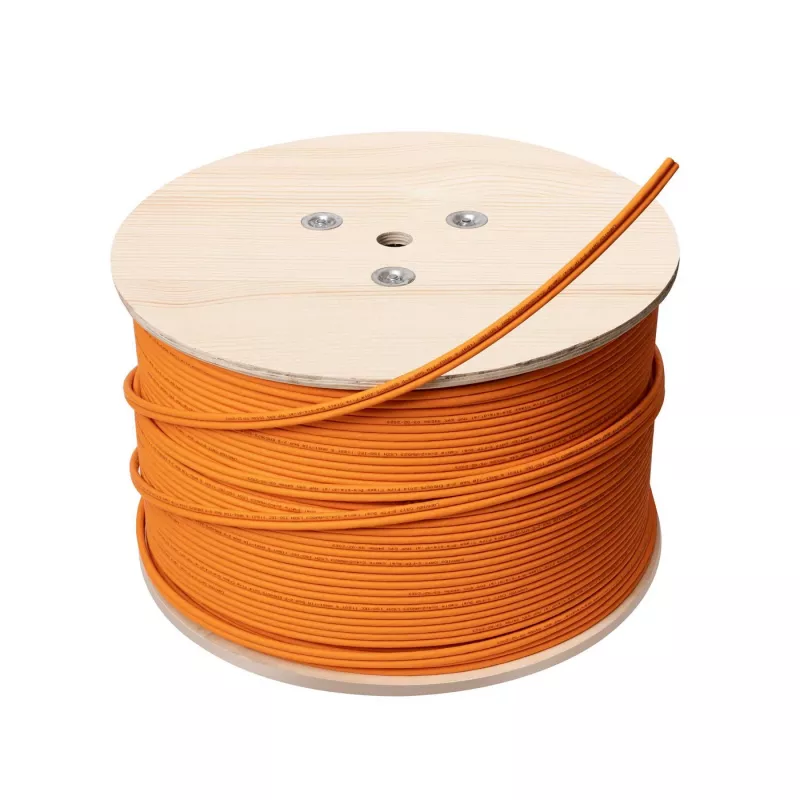

Lanview LVN122510 S/FTP Cat7 networking cable, 500 m reel, designed for high-speed cabling systems that require large data throughput. The cable features S/FTP construction with individually foil-screened twisted pairs, an overall foil shield and an overall braided shield, providing maximum protection against RFI/EMI, crosstalk and alien crosstalk. It is manufactured to ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards and contains 2x4x2 color-coded PE insulated conductors. The orange jacket improves visibility and identification in installations.

Advantages

The S/FTP Cat7 design delivers enhanced shielding performance and improved grounding thanks to the braid, which reduces interference from external sources and minimizes near-end, far-end and alien crosstalk. Compliance with international cabling standards ensures predictable performance for 10GBase-T applications and supports data rates up to 10000 Mbit/s. A 500 m reel format simplifies long runs and professional installations.

Suitable for

• Data centers and server rooms requiring high bandwidth and low interference
• Noisy electromagnetic environments or industrial sites
• Long cable runs and backbone cabling in commercial buildings
• 10GBase-T network segments and high-speed LAN backbones

Key specifications

• Cable type: S/FTP Cat7 on reel
• Length: 500 m
• Cabling technology: 10GBase-T
• Conductors: 2x4x2 color-coded PE insulated
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• Max data rate: up to 10000 Mbit/s
• Color: Orange
• Weight (approx.): 60 kg

How to use

Install the Lanview LVN122510 cable according to standard cabling practices: route the cable on trays or in conduits, avoid sharp bends and sources of mechanical stress, and maintain recommended bend radius. Terminate twisted pairs with compatible Cat7 or rated connectors and ensure shield continuity by properly grounding the overall braid and connecting foil drains at patch panels or outlet terminations. Follow site-specific safety and installation regulations during handling and deployment.

Recommendations

For optimal performance maintain proper shielding continuity throughout the link and avoid running the cable in close parallel to high-voltage power lines. Use the cable for 10GBase-T links and backbone runs in environments where RFI/EMI immunity and reduced crosstalk are required.
