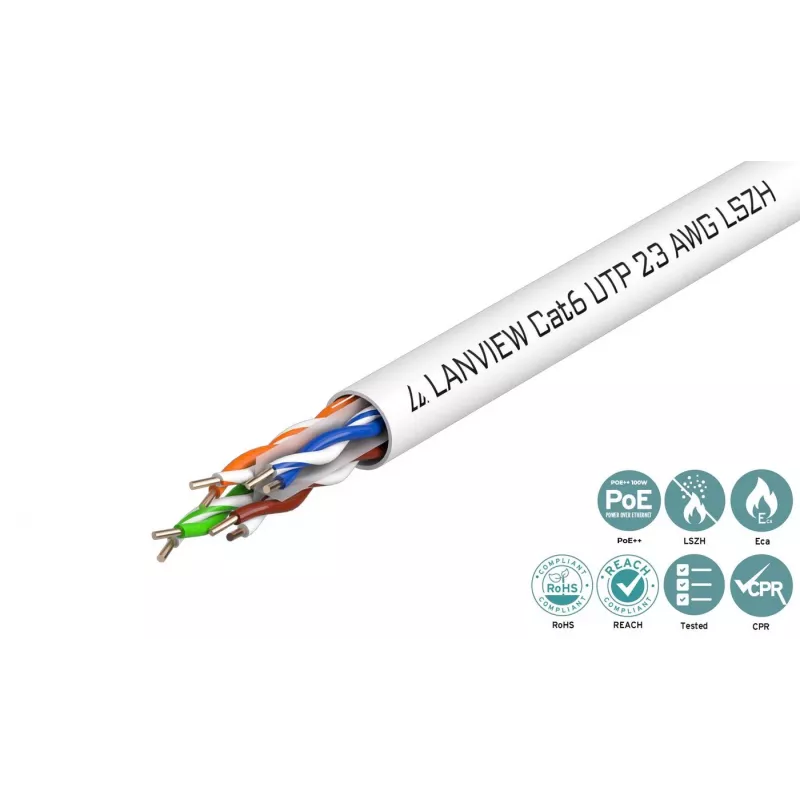

Lanview LVN122112 networking cable White 305 m Cat6 U/UTP (UTP)

The Lanview LVN122112 is a 305 m Cat6 U/UTP networking cable designed for transmission of telecommunications and high-speed data up to 10000 Mbit/s. Manufactured to meet ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards, the cable contains four pairs of color-coded PE insulated conductors and features a Low Smoke Zero Halogen (LSZH) jacket for reduced smoke and toxic gas emission in case of fire.

Advantages

Lanview Cat6 Unshielded LSZH cables are tested to international structured cabling standards, offering consistent electrical performance for gigabit and 10-gigabit applications. The U/UTP construction provides basic unshielded twisted-pair design suitable for typical office and residential environments while minimizing alien crosstalk when installed correctly. The 305 m reel length supports continuous runs and larger installations without frequent jointing.

Suitable for

• Structured cabling in offices and commercial buildings
• High-speed Ethernet networks up to 10 Gbit/s
• Telecommunications and data center horizontal cabling
• Installations requiring LSZH jackets for reduced smoke and halogen emissions

Key specifications

• Length: 305 m
• Category: Cat6
• Construction: U/UTP (unshielded twisted pair)
• Conductor insulation: PE (color-coded pairs)
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• Performance: up to 10000 Mbit/s
• Jacket: LSZH
• Brand: Lanview
• MPN: LVN122112
• EAN: 5704174318545

How to use

Route the cable according to your structured cabling plan, avoiding sharp bends and sources of electrical interference. Terminate each end with compatible Cat6 connectors or patch panels following EIA/TIA 568B pinout. Use cable management accessories such as trays and clips to maintain proper bend radius and to separate power and data lines where required. After installation, perform certification testing to verify performance up to the intended data rate.

Recommendations

For best results, install in environments that comply with building codes for LSZH materials, keep run lengths within standards for horizontal cabling, and use certified termination and testing tools to ensure the cable meets Cat6 performance parameters.
