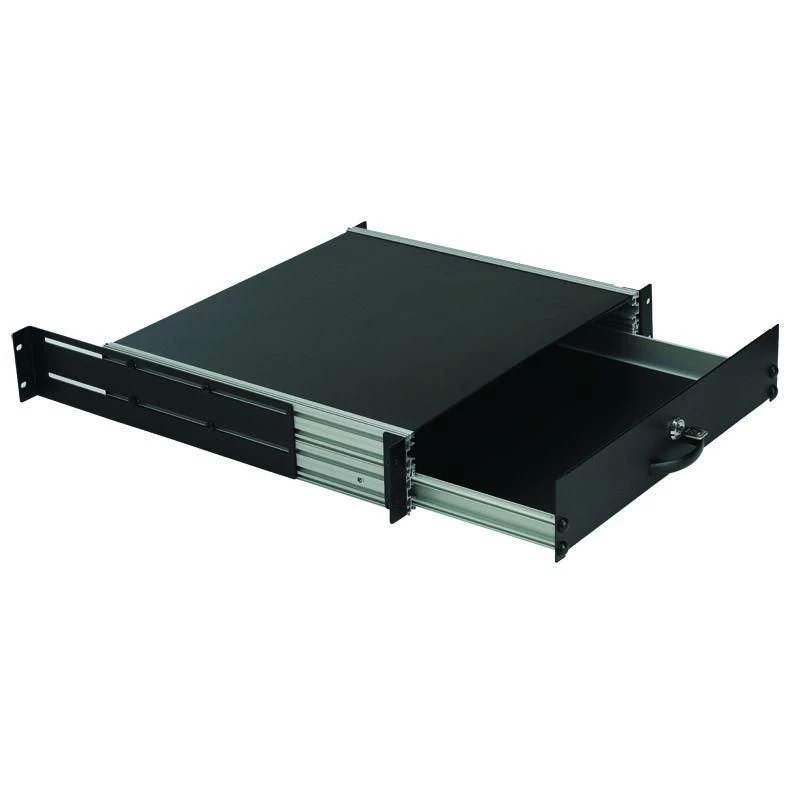

Drawer unit LOGON RAD105BL Black Aluminium 19 inch

The LOGON RAD105BL Black Aluminium 19 inch drawer unit by Lanview is a lockable rack module designed for 19" cabinets. Constructed with extruded aluminum side panels, the unit provides a robust and corrosion-resistant structure and fits standard 19" mounting rails. The drawer unit measures 482 mm in width and 400 mm in depth and can be adjusted for different cabinet depths using the supplied adjustable side brackets for front and rear mounting.

Advantages

The aluminum construction keeps the unit lightweight while maintaining high structural strength and resistance to wear. Its lockable design secures stored items, and the adjustable depth brackets allow installation in cabinets of varying internal depths. The 19" compatibility ensures straightforward integration into professional rack systems.

Suitable for

• Storing tools and small equipment in 19" server and network racks
• Organizing cables, adapters and spare parts in data centers and telecommunication cabinets
• Containing documents or accessories in studio and broadcast racks

Key specifications

• Model: LOGON RAD105BL
• Brand: Lanview
• MPN: RAD105BL
• EAN: 5420016839862
• Format: 19" rack drawer unit
• Width: 482 mm
• Depth: 400 mm
• Material: extruded aluminum (side panels)
• Color: Black
• Lockable: Yes

How to use

Mount the drawer unit into the 19" cabinet by aligning the unit with the rack rails and securing it using the front and rear adjustable depth side brackets. Adjust the brackets to match the cabinet depth, tighten the fixing screws, and lock the drawer as needed. Slide the drawer to store or retrieve tools and accessories; ensure load is evenly distributed to avoid obstructing drawer movement.

Recommendations

Install the RAD105BL in a compatible 19" enclosure and avoid overloading the drawer beyond its intended weight capacity. Regularly check and tighten mounting brackets and lock mechanisms to maintain secure installation and smooth operation.
