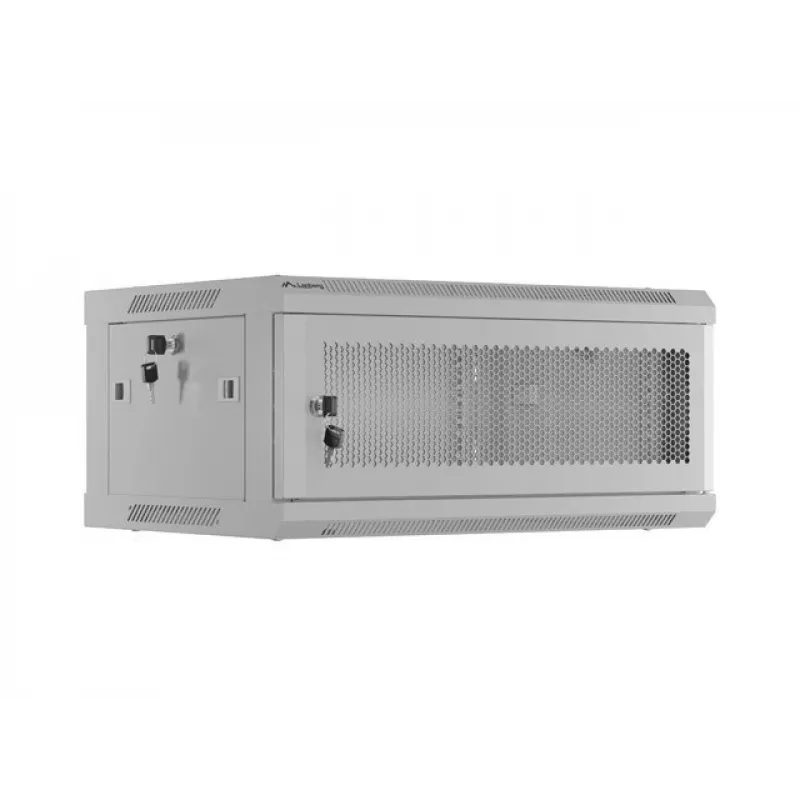

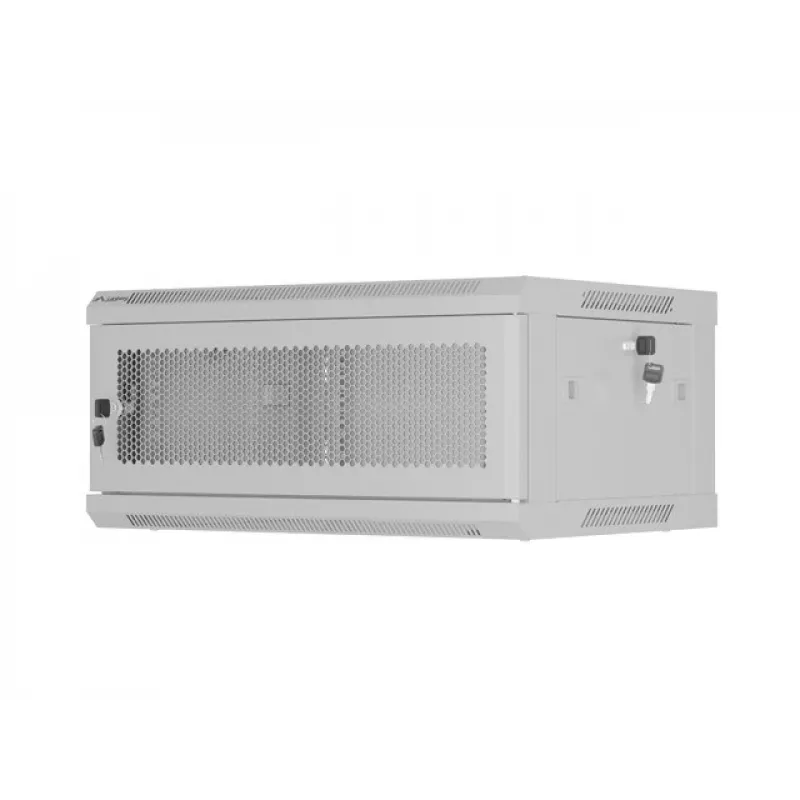

Lanberg WF01-6404-23S 19 inch 4U Wall-Mount Rack Cabinet 600x450 mm Grey Perforated Door Flat Pack

With a 60 kg static load capacity and 1.5 mm thick adjustable mounting rails, the Lanberg WF01-6404-23S is built to hold your network gear securely. This 19-inch 4U wall-mount cabinet in grey (RAL 7044) keeps switches, patch panels, and compact servers organized in tight spaces, while perforated front and rear doors promote passive airflow.

Overview

The Lanberg WF01-6404-23S is a wall-mount rack cabinet engineered for 19-inch equipment up to 4U. Its steel enclosure measures 600 mm wide and 450 mm deep, providing a compact footprint for small comms closets, offices, or branch sites. The cabinet ships flat-packed with a complete mounting kit, two keys, and ten M6 cage nuts, so assembly is straightforward.

What stands out

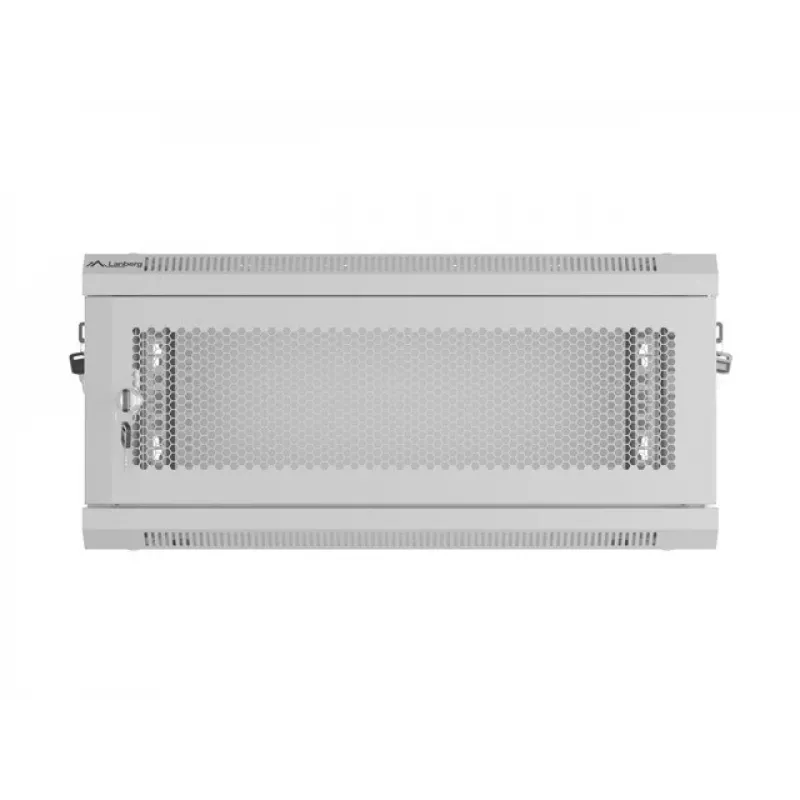

• Perforated steel front door with single-point lock and 180° opening angle for easy access and ventilation.
• Removable side panels and solid rear panel simplify cable routing and equipment installation.
• Adjustable front and rear mounting rails (1.5 mm thick) accommodate various device depths.
• Fan-ready design with top and bottom cable entry points supports active cooling if needed.
• IP20 protection rating suits indoor, climate-controlled environments.

Technical details

• Rack type: Wall-mount, 19-inch standard
• Rack units: 4U
• Dimensions (W x D x H): 600 x 450 x 4U (height in rack units)
• Material: High-grade rolled steel, 1.2 mm body thickness
• Colour: Grey (RAL 7044)
• Front door: Perforated steel, lockable, 180° opening
• Rear panel: Solid; side panels removable
• Max static load: 60 kg
• Ventilation: Passive openings, fan-ready
• Cable entry: Top and bottom
• Protection class: IP20
• Included: Mounting kit, 2 keys, 10 M6 cage nuts

Our verdict

The Lanberg WF01-6404-23S delivers a robust, space-efficient solution for edge networking. Its perforated doors and fan-ready design keep equipment cool, while the 60 kg load rating and adjustable rails ensure secure, flexible mounting. A solid choice for small server rooms, retail back offices, or branch locations.
