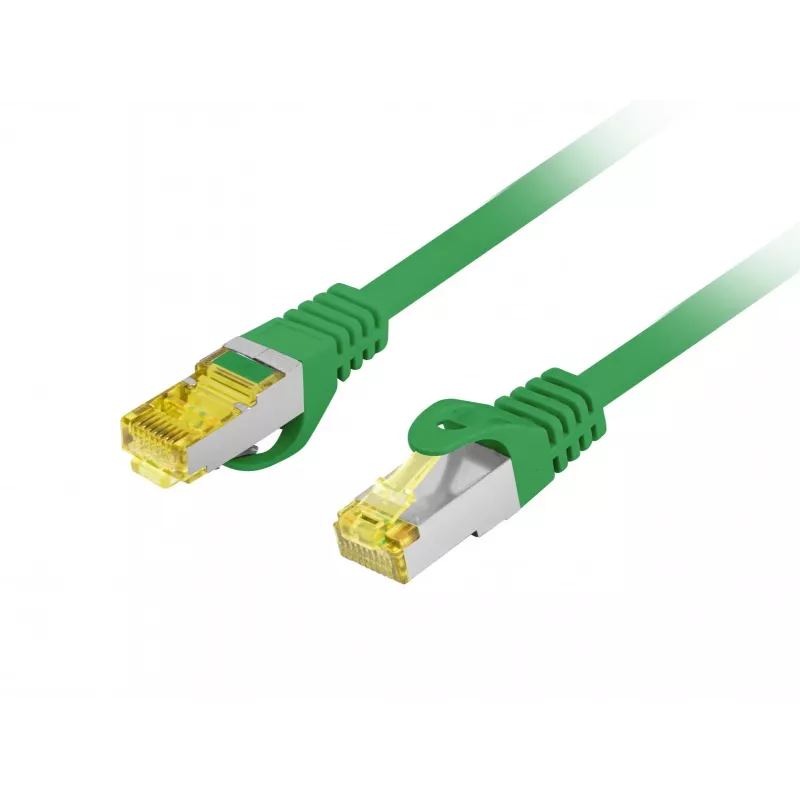

Lanberg PCF6A-10CU-2000-G Cat.6A S/FTP LSZH Copper Patch Cable 20m Green Fluke Passed

Network downtime and slow data transfer are often caused by substandard cabling that cannot handle high-speed demands. The Lanberg PCF6A-10CU-2000-G Cat.6A patch cable eliminates these bottlenecks with pure copper conductors and superior S/FTP shielding, delivering reliable 10 Gigabit Ethernet performance over a 20-meter run. Its LSZH jacket ensures safety in enclosed spaces by minimizing toxic smoke and corrosive gases in the event of fire.

Who is it for

This cable is ideal for IT professionals, data center operators, and businesses that require stable, high-bandwidth connections for servers, switches, and workstations. It is also suitable for advanced home users who demand maximum throughput for gaming, 4K streaming, or large file transfers, and for installations in public buildings where fire safety regulations mandate halogen-free cabling.

Main features

• Cat.6A performance with up to 500 MHz bandwidth and 10 Gbps data transfer rate.
• S/FTP construction: each pair is individually foil-shielded and the overall cable has a braided screen for excellent EMI/RFI rejection.
• Pure copper (CU) conductors, 26 AWG, ensure superior signal integrity and support for Power over Ethernet.
• LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety.
• Gold-plated RJ45 connectors (50µm) for corrosion resistance and reliable contacts.
• 100% Fluke Channel Test Passed, guaranteeing performance compliance.
• Green color for easy identification and organization.

Specifications

• Cable length: 20 m
• Cable standard: Cat.6a
• Cable shielding: S/FTP
• Conductor material: Copper (CU)
• Conductor gauge: 26 AWG
• Jacket material: LSZH
• Connector type: RJ45 (8P8C)
• Connector plating: 50µm Gold
• Wiring standard: TIA/EIA-568B (straight-through)
• Bandwidth: up to 500 MHz
• Data transfer rate: 10 Gbps
• Outer diameter: approx. 6.2 mm
• Number of pairs: 4
• Operating temperature: -20°C to 60°C
• Storage temperature: -20°C to 75°C
• Compliance: RoHS, REACH, ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

To maintain optimal performance, avoid sharp bends and do not exceed the minimum bend radius (typically 4 times the cable diameter). When routing through walls or conduits, use cable ties or Velcro straps to secure the cable without crushing the jacket. For best results, pair this cable with Cat.6a rated connectors and patch panels to ensure end-to-end channel compliance.
