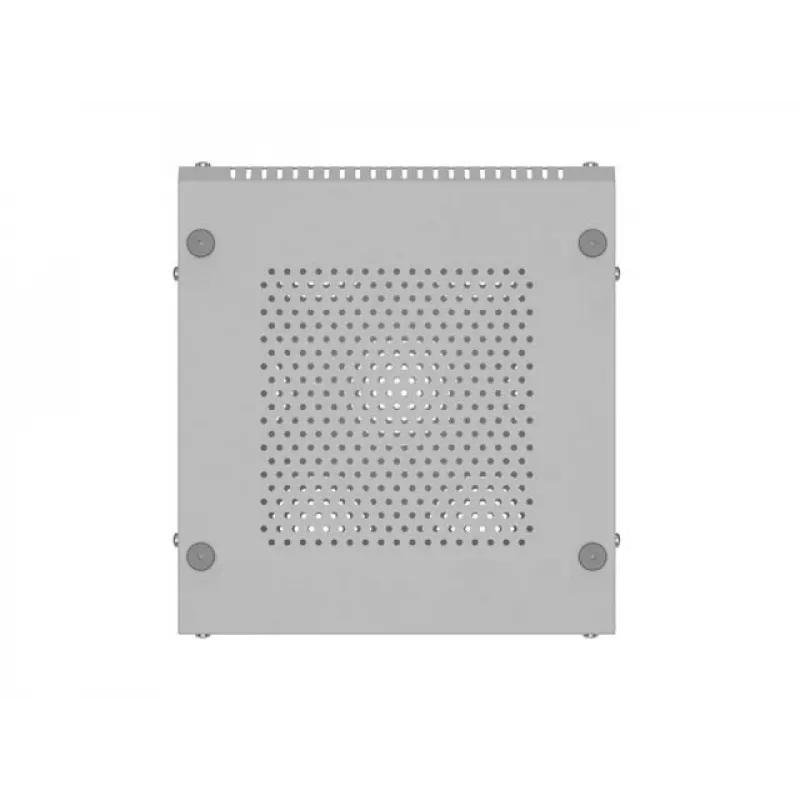

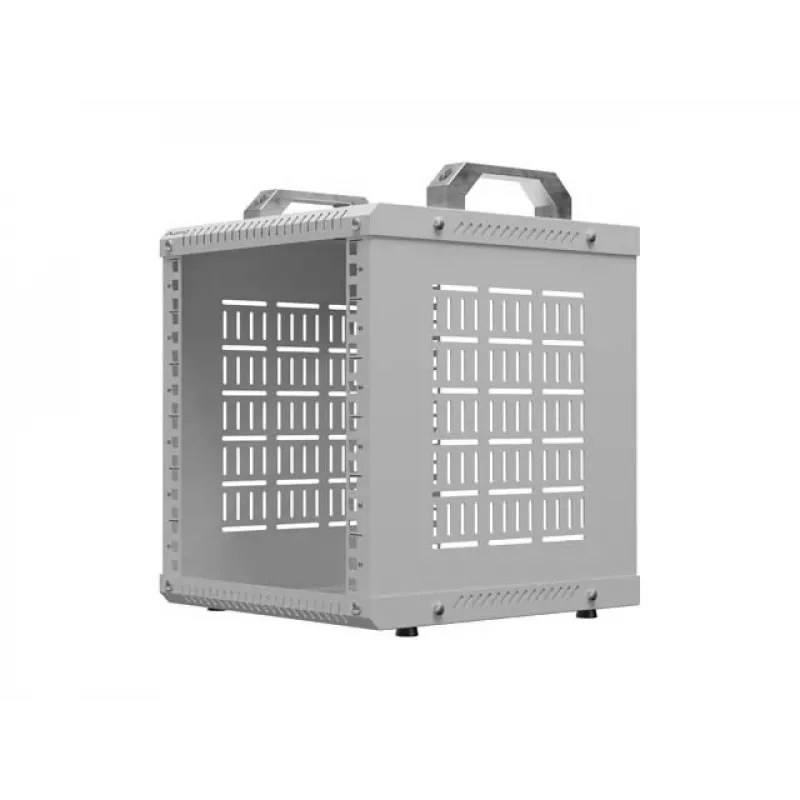

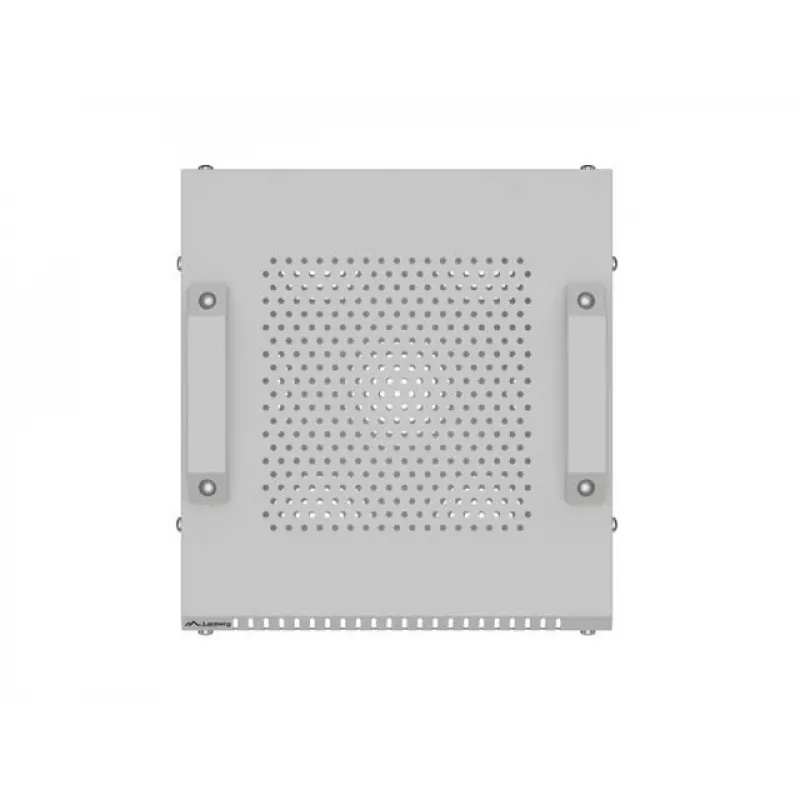

LANBERG Open Rack 10 inch 6U 280x300 Grey OR10-2306-S

Network installers and IT technicians often need a compact, wall-mountable frame for small 10-inch equipment in offices, retail back rooms, or home labs. The LANBERG OR10-2306-S delivers a 6U open rack with a 280x300 mm footprint, finished in light grey RAL 7035. Its open design keeps patch panels, switches, and other 10-inch devices easily accessible for quick changes and natural airflow.

Key specifications

• Rack type: open frame, 10-inch standard
• Capacity: 6U
• External dimensions: 280 mm width, 300 mm depth, 300 mm height
• Usable mounting depth: approx. 280 mm
• Material: steel, powder coated
• Colour: grey (RAL 7035)
• Maximum static load: 20 kg
• Mounting: wall-mountable or desktop
• Assembly: flat-pack, self-assembly with included hardware
• Compliance: RoHS, CE

Why choose it

The open frame design eliminates the need for side panels or doors, reducing weight and cost while maximizing ventilation. Wall mounting keeps equipment off the floor and out of the way, and the 10-inch format is ideal for compact networking gear. The light grey powder coat blends into modern interiors and resists scratches.

Ideal use cases

• Small office or home network distribution points
• Retail back-office equipment closets
• Test benches and lab setups for 10-inch devices
• Wall-mounted patch panel and switch installations

Good to know

Assembly hardware is included, but wall anchors and screws for the mounting surface are not. The rack supports up to 20 kg of equipment, so check the total weight of your devices before loading. The open frame provides easy cable access from all sides, simplifying cable management.
