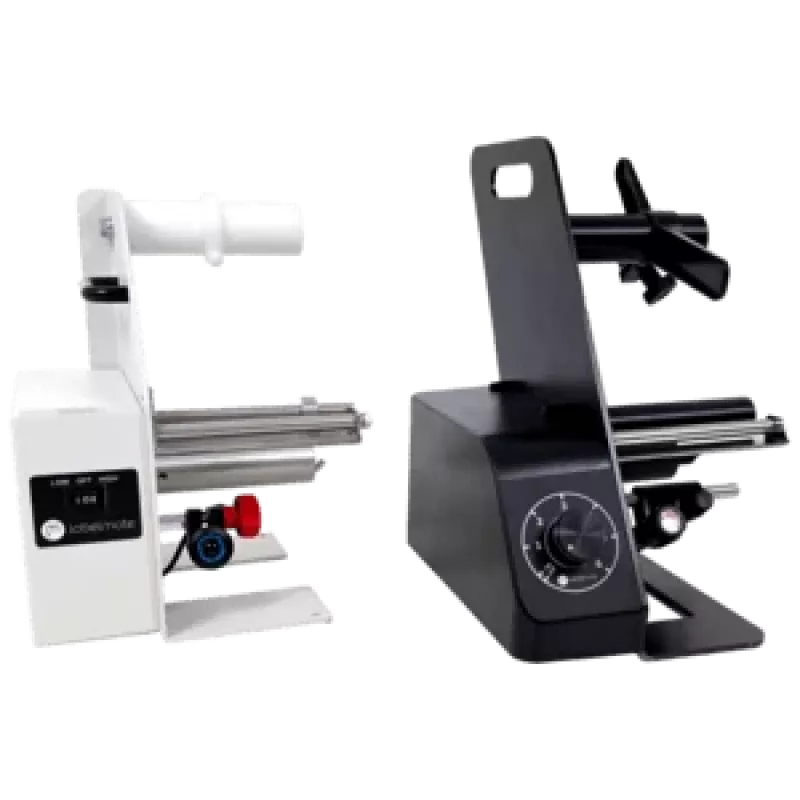

Labelmate LD-165-RS up to 165mm labelwidth 6mm min label length

In busy shipping departments, warehouse packing stations, and retail back offices, label application can become a bottleneck. The LABELMATE LMD031 LD-165-RS automatic label dispenser removes that friction by peeling and presenting labels one after another, hands-free. Operators simply take the next label and apply it, keeping their workflow smooth and uninterrupted.

Key specifications

• Maximum label width: 165 mm (6.5 inches)
• Minimum label length: 6 mm (0.24 inches)
• Maximum roll diameter: 220 mm (8.66 inches)
• Core compatibility: 25 mm (1"), 38 mm (1.5"), 76 mm (3")
• Dispensing speed: up to 11 cm/sec (4.3 in/sec)
• Photoelectric sensor for precise label detection
• Compatible with die-cut, butt-cut, opaque, and transparent labels
• Heavy-duty steel chassis for durability
• Single-button operation
• Power: 12V DC, 1.5A via AC adapter (100-240V AC, 50/60 Hz)
• Warranty: 3 years parts and labor

Why choose it

Built around a rugged steel frame, the LD-165-RS withstands daily industrial use while maintaining consistent dispensing accuracy. Its adjustable sensor reliably handles both opaque and transparent labels, reducing misfeeds and downtime. The compact desktop footprint saves valuable workspace, and the low-voltage design enhances operator safety.

Ideal use cases

• High-volume shipping and receiving operations
• Product labeling on assembly lines
• Retail price marking and barcode labeling
• Food packaging and date coding
• Laboratory sample identification

Good to know

The dispenser includes an AC power adapter and user manual. It accepts rolls up to 220 mm in diameter, minimizing roll changes. The peel-and-present mechanism reduces repetitive motion strain compared to manual peeling, improving ergonomics and throughput.
