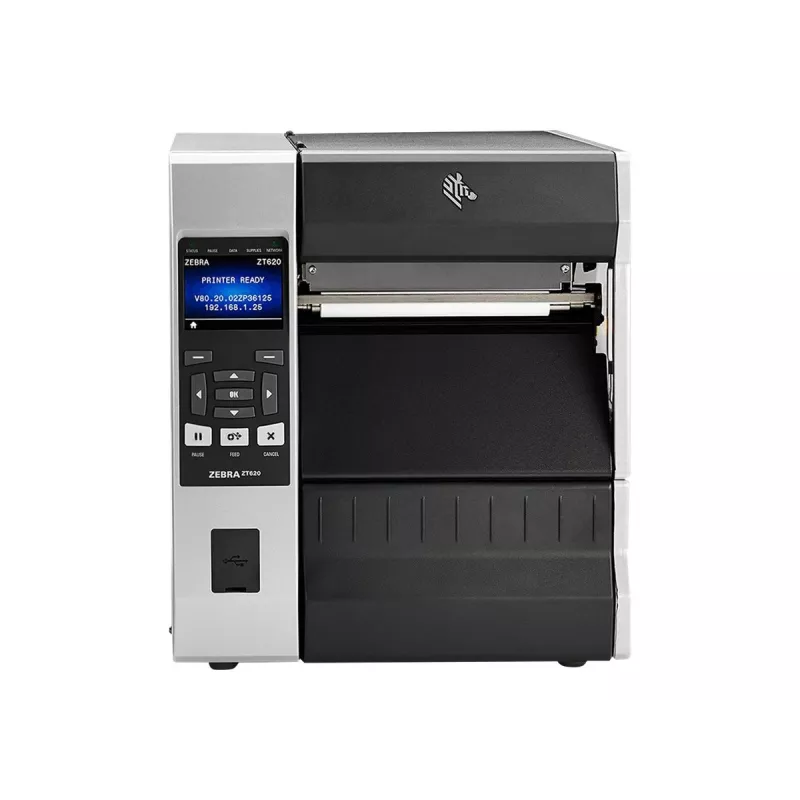

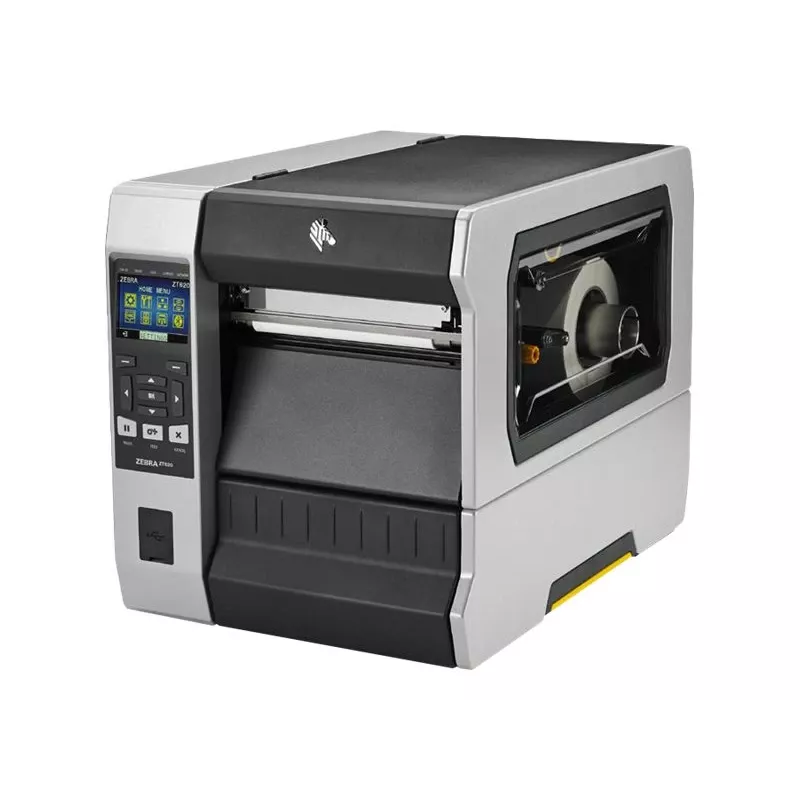

Label printer Zebra ZT620 — thermal transfer, 300×300 DPI, 168 mm print width, LCD, Ethernet, Bluetooth, Grey/Black

The Zebra ZT620 is an industrial thermal transfer label printer designed for high-volume and demanding production environments. It offers a maximum print resolution of 300 × 300 dpi and a maximum print width of 168 mm, an LCD display for local control, and wired Ethernet plus Bluetooth connectivity. Built with a robust steel frame and engineered mechanisms, the ZT620 delivers reliable, consistent printing for applications that require durable, high-resolution labels.

Advantages

The ZT620 combines durable steel structural components and precision print mechanisms to provide continuous operation in harsh industrial conditions. Its thermal transfer technology supports long-lasting, high-quality labels, while side-loading media and ribbon paths, color-coded indicators, and an LCD simplify setup and daily use. Network connectivity and multiple expansion options enable remote management and integration with existing systems.

Suitable for

• High-volume shipping and warehouse labeling
• Manufacturing and production line identification
• Asset tracking and compliance labeling
• Environments with dust, debris or wide temperature ranges

Key specifications

• Print technology: Thermal transfer
• Maximum resolution: 300 × 300 dpi
• Maximum printing width: 168 mm
• Display: LCD
• Connectivity: Ethernet LAN, Bluetooth
• Weight: 26 kg
• Color: Grey / Black
• Brand / MPN / EAN: Zebra / ZT62063-T1E0100Z / 8596375178489

How to use

Install the printer on a stable surface near a suitable power source and network connection. Load thermal transfer ribbon and label media using the side-loading path, following the color-coded guides visible along the media and ribbon channels. Use the LCD interface to configure print parameters such as resolution, print width, and label formatting, and connect the printer to your network via Ethernet or Bluetooth for software integration. Perform initial test prints and adjust printhead pressure if necessary using the provided pressure toggles and indicators.

Recommendations

Use media and ribbon types recommended by Zebra for thermal transfer printing to ensure label durability and print quality. Schedule periodic inspection and cleaning of the printhead and media paths to maintain reliable operation in dusty or demanding industrial settings.
