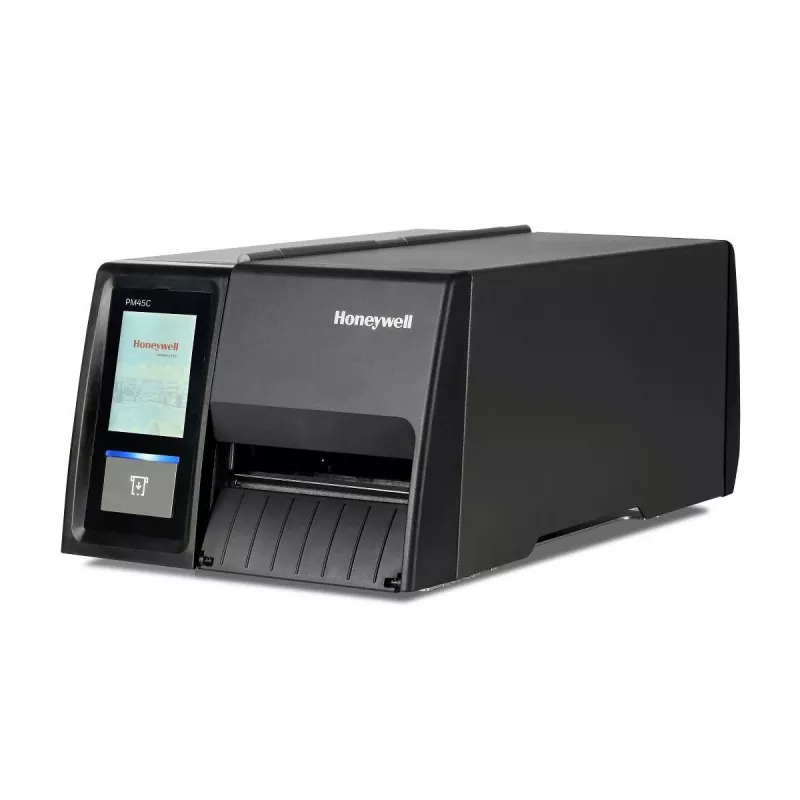

Label printer Honeywell PM45C Thermal transfer 203x203 DPI 350 mm/sec

The Honeywell PM45C is a thermal transfer label printer designed for high-volume and industrial label applications. It provides a maximum resolution of 203 x 203 DPI and a top print speed of 350 mm/sec (up to 14 ips), making it suitable for manufacturing, warehouse, and distribution environments that require reliable, precise label printing. The printer supports a broad range of media and ribbon options and includes a durable all-metal print mechanism for continuous operation with reduced maintenance.

Advantages

The PM45C offers accurate print registration (up to ±0.5 mm) for crisp barcodes, text, and images even on small labels. It is built on Honeywell's proven print platform with tool-free platen roller and printhead replacement to minimize downtime. The model supports multiple connectivity and interface options, enhanced WWAN capability, and compatibility with RFID and applicator interfaces. Embedded Smart Parse and Operational Intelligence software simplify label changes and remote monitoring without requiring backend system modifications.

Suitable for

• Industrial label printing in manufacturing
• Warehouse and distribution center labeling
• Food and beverage and pharmaceutical labeling
• Tracking and traceability applications

Key specifications

• Print technology: Thermal transfer
• Maximum resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/sec (approx. 14 ips)
• Maximum printing width: 108 mm
• Display: LCD
• Connectivity: Wired Ethernet LAN (WWAN capability available)
• Product colour: Black
• Weight: 12.6 kg
• Compatible media: wide range of label stocks and ribbons (including 1-inch core ribbons)

How to use

Load the appropriate label media and thermal transfer ribbon according to the media guides, set the print width and resolution in the printer settings to 203 x 203 DPI, and configure the desired print speed (up to 350 mm/sec) for your application. Connect the PM45C to your network via Ethernet and install the required drivers or select the printer's supported print language for integration with your labeling software or ERP. Use Smart Parse to adjust label object positions, barcode sizing, or fonts on the printer without changing backend systems. For RFID or applicator use, attach the optional interfaces and follow the interface-specific setup instructions.

Recommendations

For consistent print quality and longer service intervals, use compatible thermal transfer ribbons and label media, perform regular cleaning of the printhead and platen roller, and use the tool-free features for quick maintenance. Monitor device health and output remotely with Honeywell Operational Intelligence to plan media resupplies and address issues proactively.
