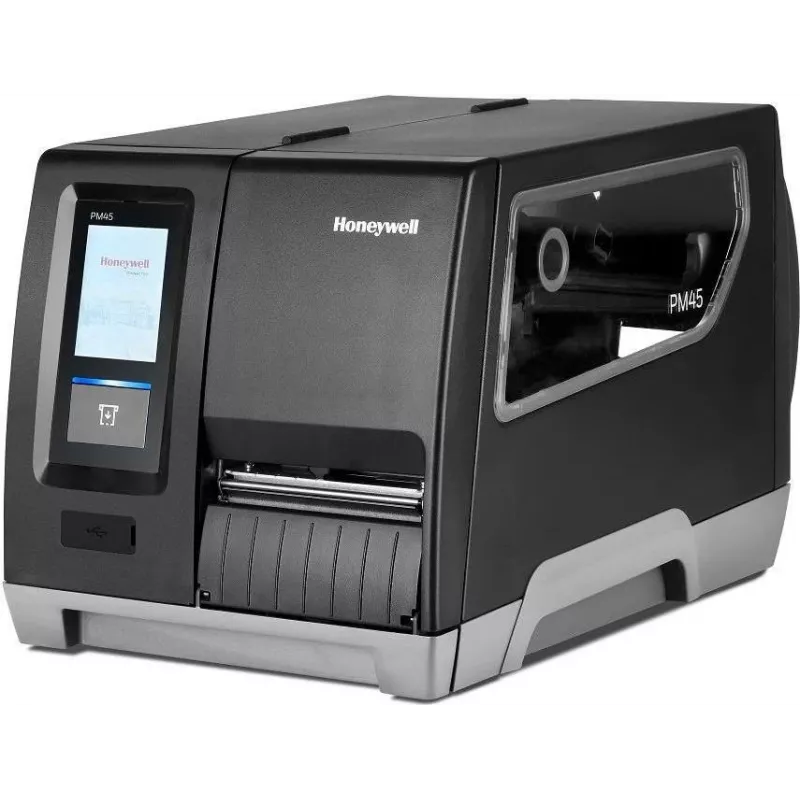

Label printer Honeywell PM45A Thermal transfer 406 x 406 DPI 250 mm/sec Wired Wireless

The Honeywell PM45A is a high-performance industrial label printer designed for thermal transfer printing at up to 406 x 406 DPI and a maximum speed of 250 mm/sec (up to 14 ips). Built for smart label solutions, the PM45A supports wired and wireless connectivity and is intended to improve automation and traceability across manufacturing, warehousing, distribution, food and beverage, and pharmaceutical environments.

Advantages

The PM45A offers precise print registration (up to ±0.5 mm) for clear barcodes, text and images, suitable for small electronic component and medical device labels. Its durable all-metal print mechanism and tool-free maintenance (easy printhead and platen roller replacement) reduce downtime. The printer provides flexible connectivity including enhanced WWAN, multiple network protocols, and support for RFID, parallel and applicator interfaces. Embedded Smart Parse enables label format adjustments without backend changes, and Operational Intelligence allows remote diagnostics and performance monitoring. The device accepts a wide range of media, including 1-inch core ribbons, to extend time between media resupplies.

Suitable for

• High-volume label printing in manufacturing
• Warehouse and distribution center labeling
• Food and beverage product traceability
• Pharmaceutical and medical device labeling
• Replacement of existing Honeywell or mixed-brand industrial printers

Key specifications

• Print technology: Thermal transfer
• Maximum resolution: 406 x 406 DPI
• Maximum print speed: 250 mm/sec (up to 14 ips)
• Print registration accuracy: up to ±0.5 mm
• Connectivity: Wired and wireless options, enhanced WWAN support
• Interfaces: Optional RFID, parallel, industrial and applicator interfaces
• Media support: Wide range of media; supports ink-in and ink-out ribbons with 1-inch core
• Build: Rugged all-metal print mechanism
• Model / MPN: Honeywell PM45A, PM45A10000000400

How to use

Install the PM45A on a stable surface, connect power and select the desired network connection (wired or wireless). Load the thermal transfer media and ribbon following the user guide, ensuring correct orientation for ink-in or ink-out ribbons with the supported 1-inch core. Configure print language and network settings to match your system environment or cloud integration. Use the embedded Smart Parse to adjust label layouts, barcode sizes, and font types without altering backend systems. For routine operation, monitor printer status and output via Honeywell Operational Intelligence or local management tools.

Recommendations

Use manufacturer-recommended media and ribbons to maintain print quality and prolong printhead life. Schedule regular visual inspections and replace platen rollers or printheads using the tool-free mechanisms when wear is detected. For remote monitoring and fleet management, enable Operational Intelligence and keep firmware updated to ensure compatibility with mixed-printer environments.
