Label printer Honeywell PM45A Thermal transfer 300x300 DPI 300 mm/sec Wired Wireless

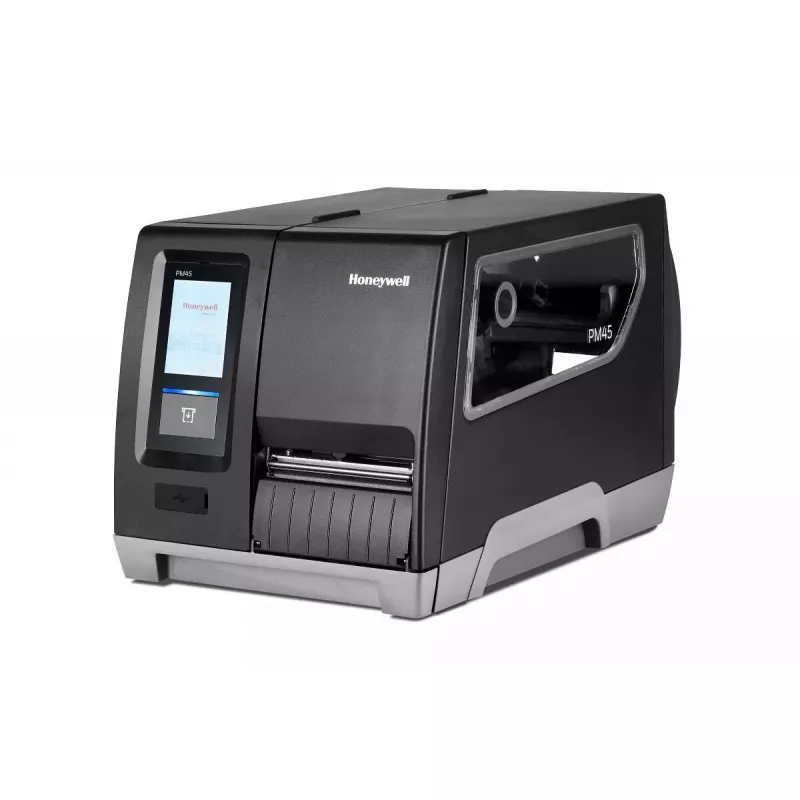

The Honeywell PM45A is an industrial thermal transfer label printer designed for smart labeling solutions in manufacturing, warehousing and supply chain management. It delivers 300 x 300 DPI print resolution and up to 300 mm/sec (14 ips) print speed to support high-volume printing of barcodes, text and images. The PM45A supports wired and wireless connectivity (Ethernet, Wi‑Fi, Bluetooth) and offers a rugged all‑metal print mechanism with easy-to-replace printhead and tool-free platen roller replacement.

Advantages

The PM45A provides precise print registration (up to ±0.5 mm) for small labels and components, wide media compatibility including 1-inch core ribbons, and enhanced connectivity options including WWAN for flexible site deployment. It supports multiple print languages and network protocols for straightforward integration into cloud or local systems. Embedded Smart Parse and Operational Intelligence software enable label format adjustments without backend changes and remote diagnostics and performance monitoring.

Suitable for

• High-volume barcode and label printing in manufacturing
• Warehouse and distribution centre labeling and track-and-trace
• Pharmaceutical and medical device label printing
• Food and beverage production and packaging lines
• Replacement of existing Honeywell or mixed-brand industrial printers

Key specifications

• Print technology: Thermal transfer
• Resolution: 300 x 300 DPI
• Maximum print speed: 300 mm/sec
• Maximum printing width: 105.7 mm
• Connectivity: Ethernet LAN, Wi‑Fi, Bluetooth (also WWAN capable)
• Display: LCD
• Product colour: Black

How to use

Install the PM45A on a stable surface, connect power and required network interfaces (wired or wireless), and load thermal transfer media and ribbons following the user manual. Use the LCD and built‑in firmware to select print language and network settings, or integrate via supported network protocols into your label management system. Adjust label formats and barcode positions on the printer using Smart Parse or through your software without needing backend programming changes.

Recommendations

For reliable long-term operation, use recommended thermal transfer ribbons (including 1-inch core where applicable) and maintain a clean printhead; perform tool-free platen roller and printhead replacement as needed to minimize downtime. Enable Operational Intelligence for remote monitoring and schedule media restocking based on usage metrics.
