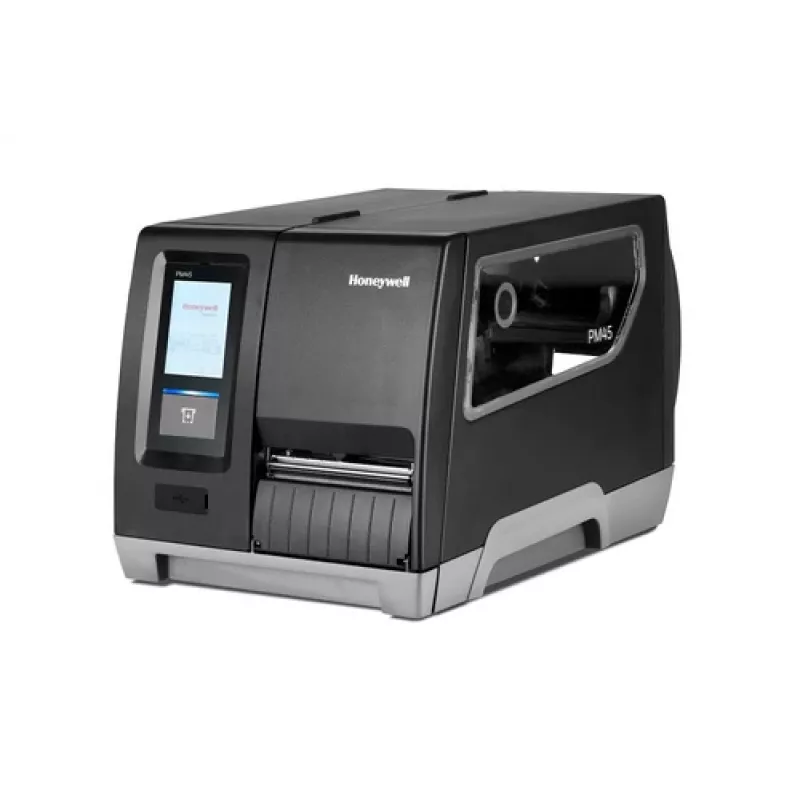

Label printer Honeywell PM45A Thermal transfer 203x203 DPI 350 mm/sec Wired Wireless

The Honeywell PM45A is a thermal transfer label printer designed for high-volume smart label solutions in manufacturing, warehousing, distribution and other supply-chain environments. It offers 203 x 203 DPI resolution, a maximum print speed of 350 mm/s (up to 14 ips), a maximum printing width of 108 mm and both wired and wireless connectivity to support automation and traceability workflows.

Advantages

The PM45A combines a durable all-metal print mechanism with easy-to-service features such as tool-free platen roller and printhead replacement to reduce downtime. It delivers accurate print registration (up to ±0.5 mm) for barcodes, text and images on small and large labels. Versatile connectivity includes Ethernet, Wi‑Fi and optional WWAN plus support for multiple print languages, RFID and various applicator/industrial interfaces, allowing integration into cloud or local systems. Embedded Smart Parse and Operational Intelligence software simplify label formatting and remote diagnostics while support for a broad range of media and 1-inch ribbon cores extends time between media changes.

Suitable for

• High-volume barcode and label printing in manufacturing
• Warehouse and distribution centre labelling and track-and-trace
• Pharmaceutical and medical device labelling requiring precise registration
• Food & beverage production and packaging lines
• Replacement of Honeywell or mixed-brand industrial printers

Key specifications

• Print technology: Thermal transfer
• Resolution: 203 x 203 DPI
• Maximum print speed: 350 mm/s (approx. 14 ips)
• Maximum printing width: 108 mm
• Connectivity: Ethernet LAN, Wi‑Fi, optional WWAN; wired and wireless supported
• Display: LCD
• Product colour: Black
• MPN: PM45A12000000200

How to use

Install the PM45A on a stable surface and connect power. Load thermal transfer ribbon and label media following the user guide so the media path is aligned with the platen rollers and printhead. Connect the printer to your network using Ethernet, Wi‑Fi or an available WWAN option, then install the Honeywell printer driver or configure the printer via its web interface. Use Smart Parse to adjust label object positions, barcode sizing and fonts without backend changes. For integration, select the appropriate print language and network protocol to match your system (cloud or local server).

Recommendations

Use ribbons and label stocks within the media specifications recommended by Honeywell and perform routine maintenance such as cleaning the printhead and replacing platen rollers as needed to maintain precise print registration and reliable operation.
