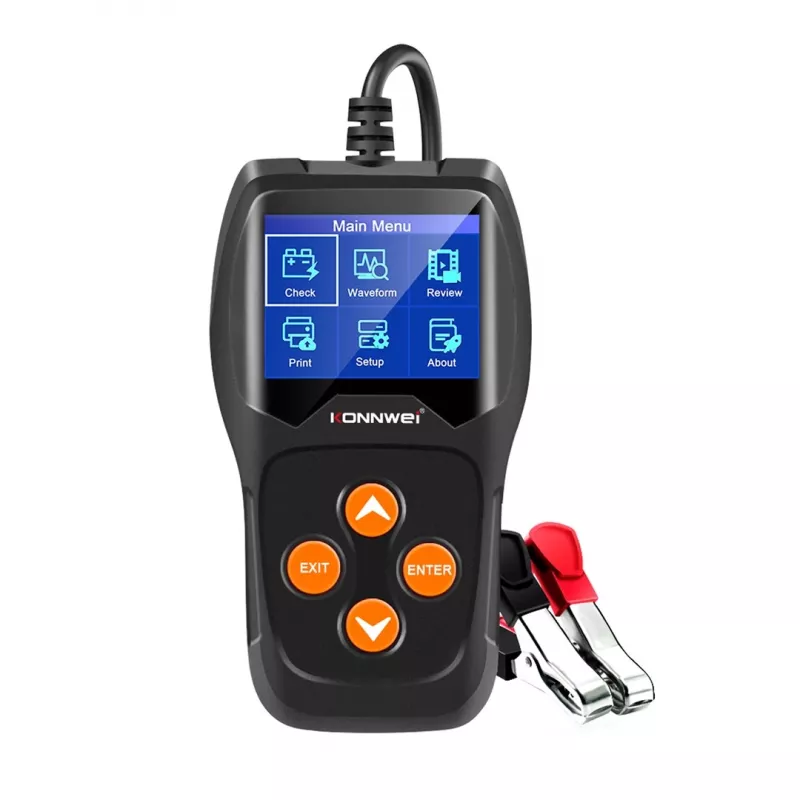

KONNWEI KW600 Battery Meter — 12V Vehicle Battery Tester with Color LCD, Cranking & Charging System Diagnostics

The KONNWEI KW600 stands apart from basic handheld testers by combining a high-resolution color LCD with full system diagnostics—battery health, cranking, and charging—in one compact tool. Unlike monochrome units that force you to interpret cryptic codes, the KW600 displays clear, color-coded results and supports ten international test standards, making it suitable for both professional workshops and home garages.

Highlights

• Color LCD screen for easy reading in all lighting conditions
• Tests 12V batteries from 100 to 2000 CCA across Flooded, AGM, GEL, and EFB types
• Performs battery health, cranking, charging, and ripple tests
• Supports CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and GB standards
• Powered directly by the vehicle battery—no internal battery needed
• USB connectivity for free lifetime software updates
• Built-in reverse polarity and over-voltage protection

In daily use

Connect the heavy-duty clamps to the battery terminals and the KW600 automatically powers on. Select the battery type and standard, then run a health test to get an immediate state-of-charge and state-of-health reading. The cranking test captures voltage drop during engine start to identify weak batteries, while the charging test verifies alternator output under load. The ripple test detects AC leakage that can damage modern electronics. Results are displayed with clear pass/fail indicators and numeric values, and the tool can store test records for later review via USB.

Full specifications

• Display: Color LCD
• Operating voltage: 8V - 16V DC
• Battery test range: 100 - 2000 CCA
• Supported battery types: Flooded, AGM Flat Plate, AGM Spiral, GEL, EFB
• Test standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
• Test functions: Battery health, cranking, charging, ripple
• Connectivity: USB (updates & data transfer)
• Protection: Reverse polarity, over-voltage
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -20°C to 70°C (-4°F to 158°F)
• Housing material: ABS plastic
• Cable length: approximately 100 cm
• Update method: Free lifetime updates via PC
• Supported languages: English, German, French, Spanish, Italian, Russian, and more
• Power source: Vehicle battery (no internal battery)

Final note

The KW600 delivers professional-grade battery diagnostics in a rugged, portable package. With its intuitive color display, broad vehicle coverage, and lifetime updates, it is an essential tool for anyone serious about battery maintenance and electrical system troubleshooting.
