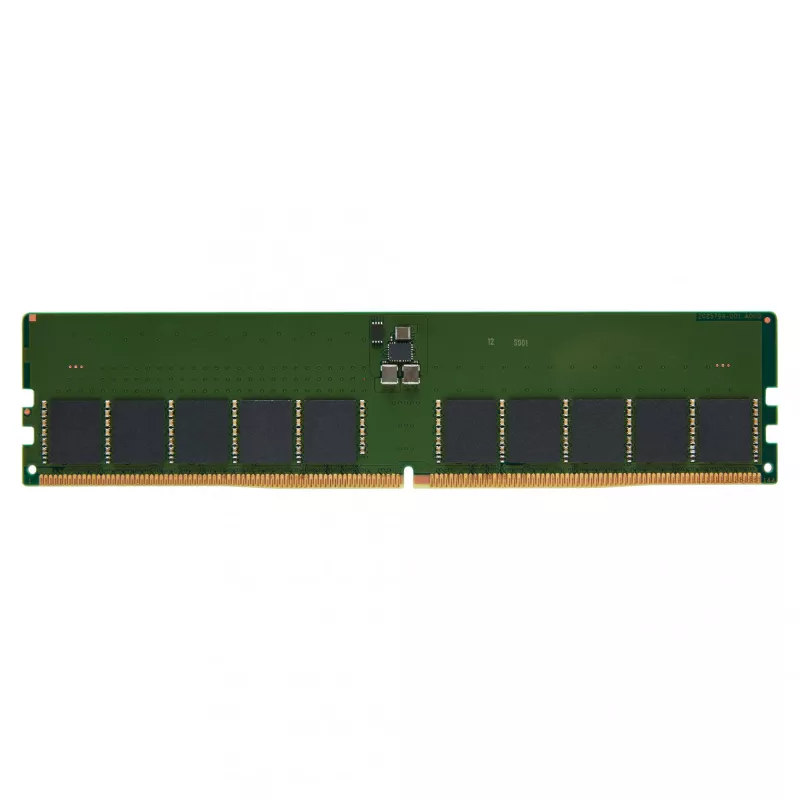

DDR5 32GB PC 5600 CL46 Kingston Server Premier ECC retail retail (KSM56E46BD8KM-32HA)

The Kingston KSM56E46BD8KM-32HA is a 32GB DDR5-5600 ECC memory module in a 288-pin DIMM form factor, designed primarily for server applications. It is organized as 4G x 72-bit (2Rx8) and built from twenty 2G x 8-bit FBGA components. The module operates at a JEDEC-standard timing of 46-45-45 with a nominal voltage of 1.1V and uses gold contact fingers for reliable connections.

Advantages

DDR5-5600 speed provides increased bandwidth compared with previous generations, while ECC support helps detect and correct single-bit memory errors to improve data integrity in server environments. The 32GB capacity and 288-pin DIMM form factor are suitable for high-density memory configurations. JEDEC-programmed SPD ensures compatibility with systems that follow standard DDR5 timings.

Suitable for

• Server memory upgrades and replacements
• Workloads requiring high memory capacity and reliability
• Enterprise and data center systems supporting DDR5 ECC DIMMs

Key specifications

• Capacity: 32 GB
• Memory type: DDR5
• Clock speed: 5600 MHz (DDR5-5600)
• CAS latency: CL46 (timing 46-45-45)
• Form factor: 288-pin DIMM
• Module organisation: 4G x 72-bit, 2Rx8
• Voltage: 1.1 V
• Error correction: ECC
• PCB/components: twenty 2G x 8-bit FBGA components
• Manufacturer part number (MPN): KSM56E46BD8KM-32HA
• EAN: 0740617336023

How to use

Power off the server and follow the system manufacturer’s instructions for accessing memory slots. Handle the DIMM by its edges, align the module with the 288-pin DIMM slot keyed notch, and press firmly until the retention clips engage. After installation, power on the system and verify that the BIOS/firmware recognises the DDR5-5600 ECC module and the full 32GB capacity. Ensure that the system supports ECC and the specified JEDEC timings.
