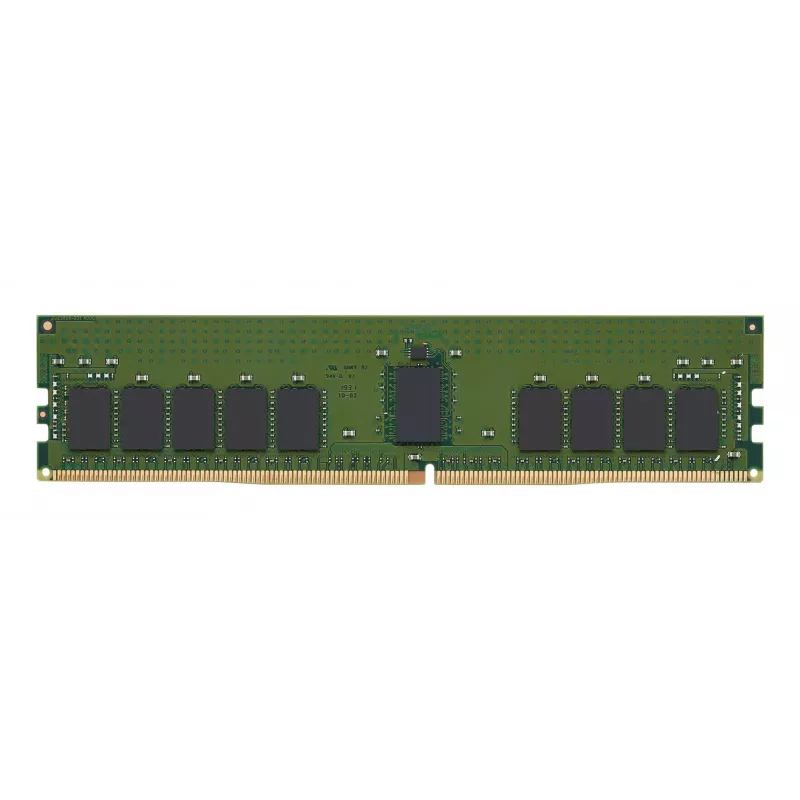

Kingston Technology KSM32RD8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC

Kingston Technology KSM32RD8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC
60 mo.
Kingston Technology KSM32RD8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC
R14,329
Kingston's KSM32RD8/32HD is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold cont... Read More
Stock 9 Code 2408646 Brand KINGSTON Model KSM32RD8/32HD Warranty 5 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Kingston's KSM32RD8/32HD is a 4G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/
parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Kingston Technology KSM32RD8/32HD. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22, ECC

Key Highlights
  • Power Supply: VDD = 1.2V
  • VDDQ = 1.2V
  • VPP = 2.5V
  • VDDSPD = 2.41V to 2.75V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported
  • Server 32 GB DDR4 3200 MT/s
  • 288-pin DIMM 1 x 32 GB
  • CAS latency: 22
  • 1.2 V
  • ECC
Specifications
Buffered memory type
Registered (buffered)
CAS latency
22
Compliance certificates
RoHS
Component for
Server
ECC
Yes
Height
31.2 mm
Internal memory
32 GB
Internal memory type
DDR4
JEDEC standard
Yes
Memory data transfer rate
3200 MT/s
Memory form factor
288-pin DIMM
Memory layout (modules x size)
1 x 32 GB
Memory ranking
2
Memory voltage
1.2 V
Module configuration
4096M x 72
Operating temperature (T-T)
0 - 85 °C
Programming power voltage (VPP)
2.5 V
Row active time
32 ns
Row cycle time
45.75 ns
SPD profile
Yes
Storage temperature (T-T)
-55 - 100 °C
Width
133.3 mm

Leaflet

Open Leaflet
Price history over the last 6 months
Kingston Technology KSM32RD8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC
Current
R14,329
Lowest
R14,209
Highest
R14,450
Change 24H
+R3   +0%
Week
+R71   +0%
Month
+R110   +1%
