Keystone module RJ45 to LSA Cat.6 UTP with locking clip and cable tie-free — DELOCK 90794, flat black/white, 16.1×30×19.4 mm

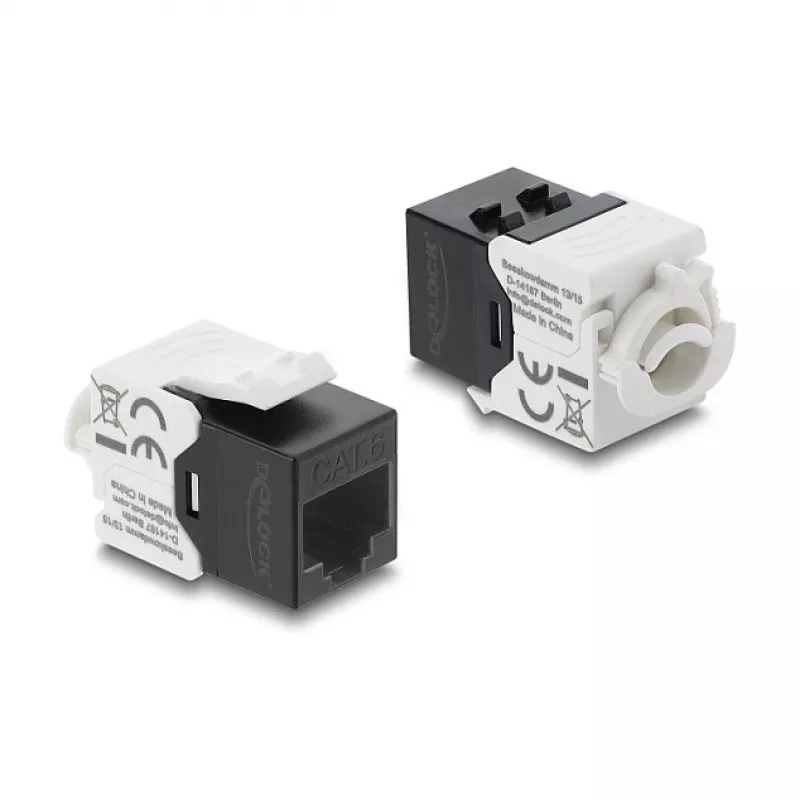

DELOCK Keystone module RJ45 to LSA Cat.6 UTP with locking clip and cable tie-free is a compact adapter for converting an RJ45 jack to LSA termination in Cat.6 unshielded twisted pair cabling. With a flat construction and dimensions of 16.1×30×19.4 mm, the module is designed for space-saving installation in keystone patch panels, faceplates and surface-mount boxes. The unit is supplied as a single piece in a polybag and is available in flat black/white finishes.

Advantages

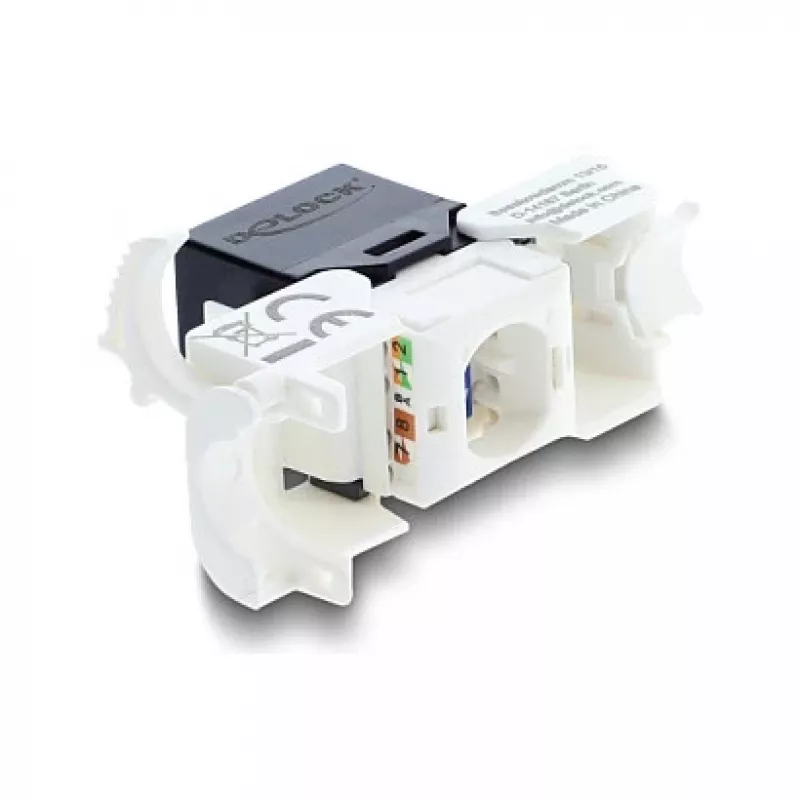

The module provides a tool-free and space-efficient solution for connecting RJ45 network cables to LSA termination blocks. An integrated locking clip on the rear secures the cable without the need for separate cable ties, reducing installation time and cable clutter. Its flat profile minimises protrusion in shallow housings while maintaining Cat.6 performance for UTP installations.

Suitable for

Key specifications

How to use

Prepare the Cat.6 UTP cable by stripping the outer jacket and arranging the conductors according to the required pinout. Insert the conductors into the LSA termination block and terminate them using an appropriate LSA punch-down tool. Route the cable so the integrated locking clip can engage and secure the cable without additional cable ties. Snap the module into the keystone slot of a patch panel, faceplate or surface-mount box until it locks into place. Connect an RJ45 plug to the front-facing jack to complete the link.

Recommendations

Use a compatible LSA punch-down tool and follow Cat.6 wiring standards to ensure reliable performance. Verify conductor placement and continuity after termination. Choose the module finish to match the installation environment and avoid excessive bending near the termination point to maintain signal integrity.
