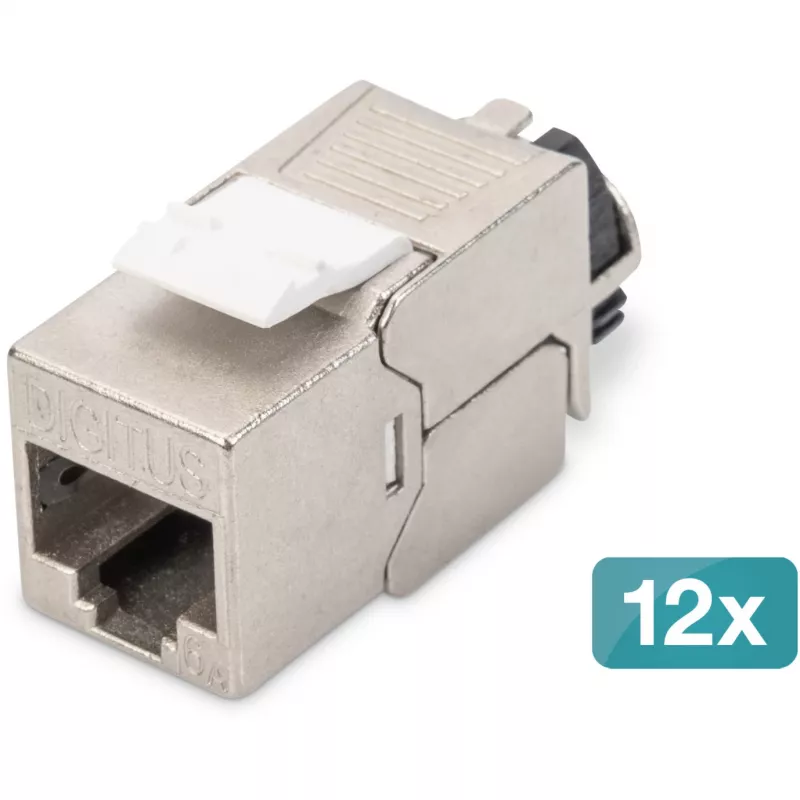

Keystone module DIGITUS CAT 6A shielded with intelligent cable manager, flat RJ-45, 14.5×34.5×21 mm — 12 pcs

The DIGITUS CAT 6A shielded keystone module set (12 pcs) is a compact, flat RJ-45 solution for structured cabling in patch panels, wall plates and keystone frames. Each module features a metalized housing with 360° shield contacting, a reclosable intelligent cable manager for strain relief and tool-free LSA insulation displacement connectors color-coded to EIA/TIA 568 A & B. With CAT 6A performance up to 500 MHz and support for 10GBase-T, the modules are intended for high-speed Ethernet applications and PoE deployment in professional installations. The small dimensions (14.5 × 34.5 × 21 mm) allow dense row installation in 19" 1U panels and compatibility with design-oriented junction boxes.

Advantages

These shielded CAT 6A modules combine full 360° shielding and nickel-plated zinc die-cast housing for reliable EMI protection and mechanical robustness. The integrated, reclosable intelligent cable manager secures cable routing and provides strain relief without additional parts, while tool-free LSA termination speeds up field assembly and reduces installation time. Contacts are gold-plated over nickel for consistent electrical contact and tested mating cycles ensure longevity in frequent-use environments. The flat RJ-45 profile supports installation in slim frames and design-compatible boxes.

Suitable for

• High-speed Ethernet networks (10GBase-T) in offices and data centers
• Structured cabling in patch panels, wall plates and keystone frames
• PoE and PoE+ powered devices including IEEE 802.3af/at/bt deployments
• Field assembly and retrofit projects requiring tool-free termination
• Installation in compact or design-compatible junction boxes

Key specifications

• Category: CAT 6A, 10GBase-T, up to 500 MHz

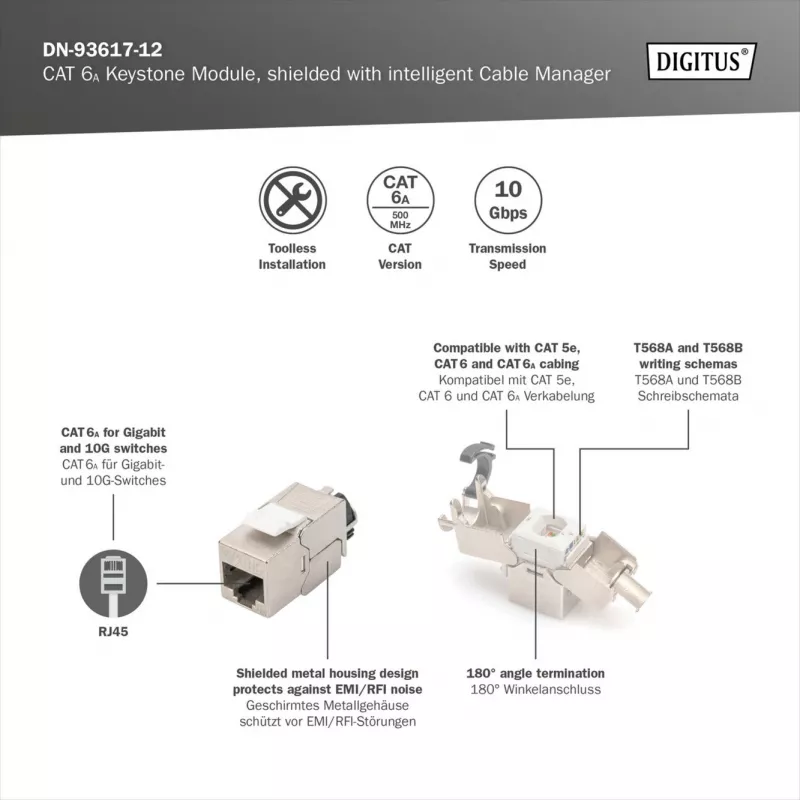

• Shielding: 360° shield contacting; metalized (nickel-plated zinc die-cast) housing
• Connector: RJ-45 8P8C, flat profile
• Termination: LSA insulation displacement connectors, color-coded EIA/TIA 568 A & B, tool-free
• Cable compatibility: Copper conductor AWG 26/7 – 22/1, stranded and solid (tested with AWG 22/1)
• Contact material and plating: Phosphor bronze contacts; nickel base with 0.5 μ gold plating
• Electrical: Dielectric strength 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Mechanical: Insertion force max. 30 N; holding force 7.7 kg between socket and plug; mating cycles ≥ 1000
• Operating temperature: -20 °C to +70 °C
• PoE support: IEEE 802.3 af/at/bt (PoE, PoE+, 4PPoE in permanent link)

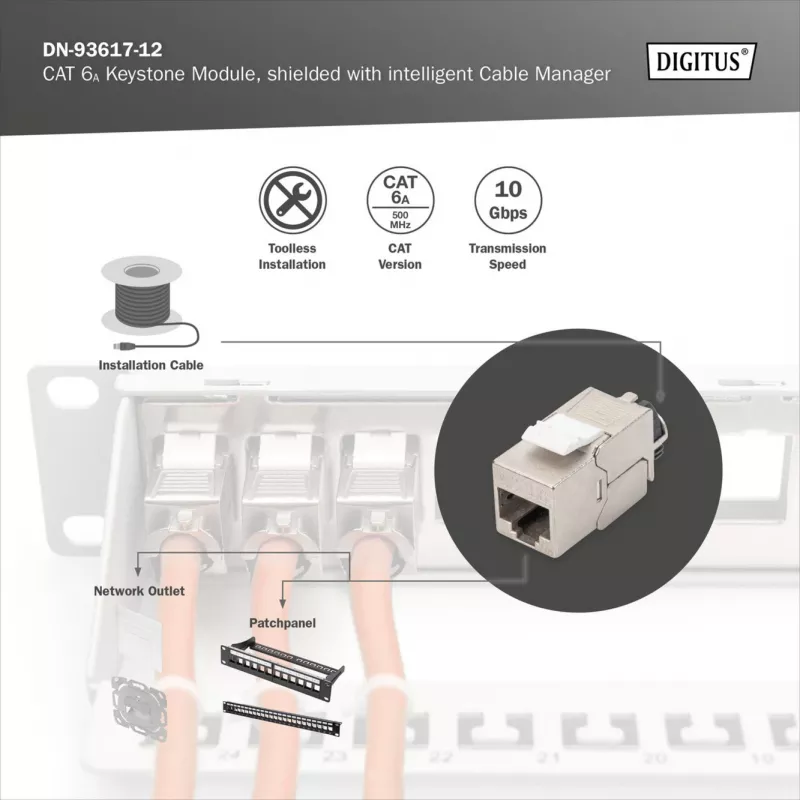

• Mounting: Suitable for distribution panels and junction boxes; row installation in 19" 1U panels

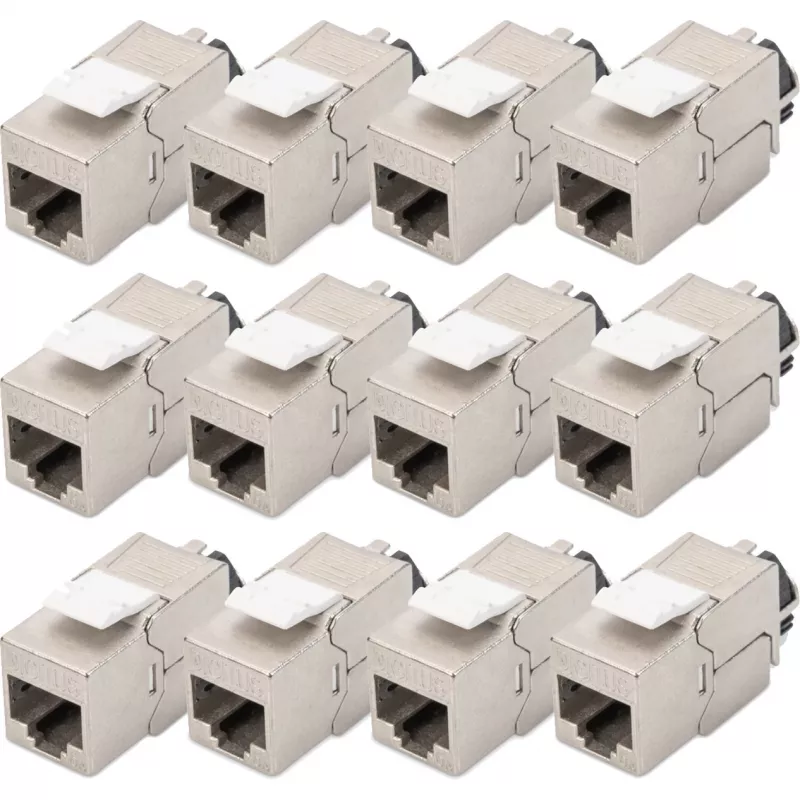

• Set contents and dimensions: 12 modules; 14.5 × 34.5 × 21 mm; flat design

How to use

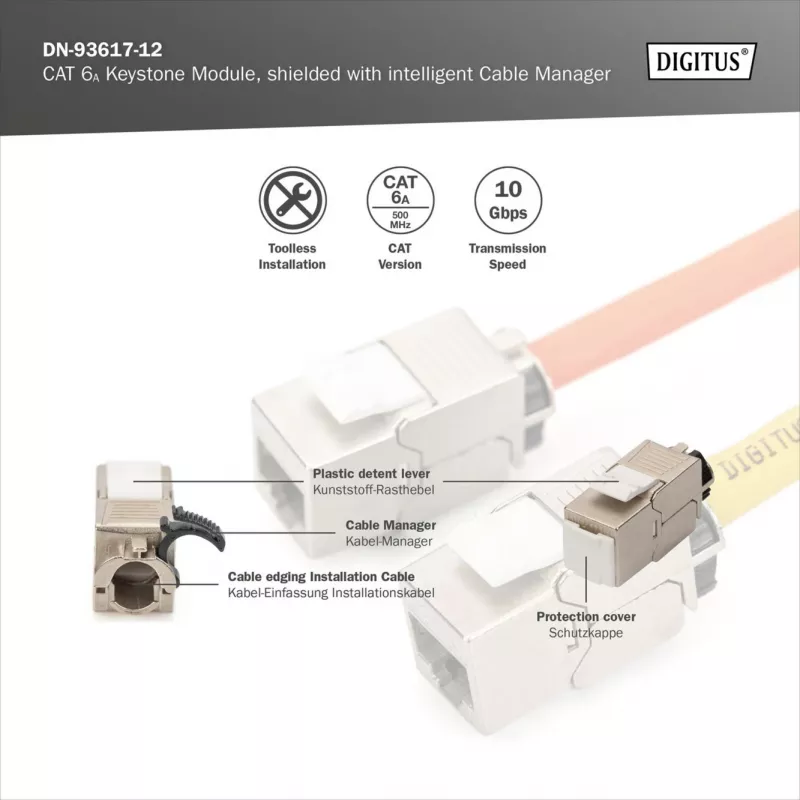

Prepare the flat or round copper cable by stripping the outer sheath to expose individual conductors. Open the reclosable intelligent cable manager, route the conductors into the color-coded LSA termination slots according to EIA/TIA 568 A or B, and close the cable manager to provide strain relief and cable fixing. Termination is performed tool-free via the insulation displacement connector. Insert the plug into the RJ-45 socket and verify the link with appropriate network testing equipment. For panel or wall-plate installation, snap the keystone modules into the compatible frames or plates and ensure 360° shield contact by connecting the module shield to the chassis ground.

Recommendations

Use solid AWG 22/1 installation cable for optimum CAT 6A performance and verify PoE power classes when deploying powered devices. Ensure proper grounding of the shielded modules in panels or distribution boxes to maintain EMI protection. For high-density 1U installations, allow sufficient airflow and follow recommended bend radius for flat cables to preserve signal integrity.
