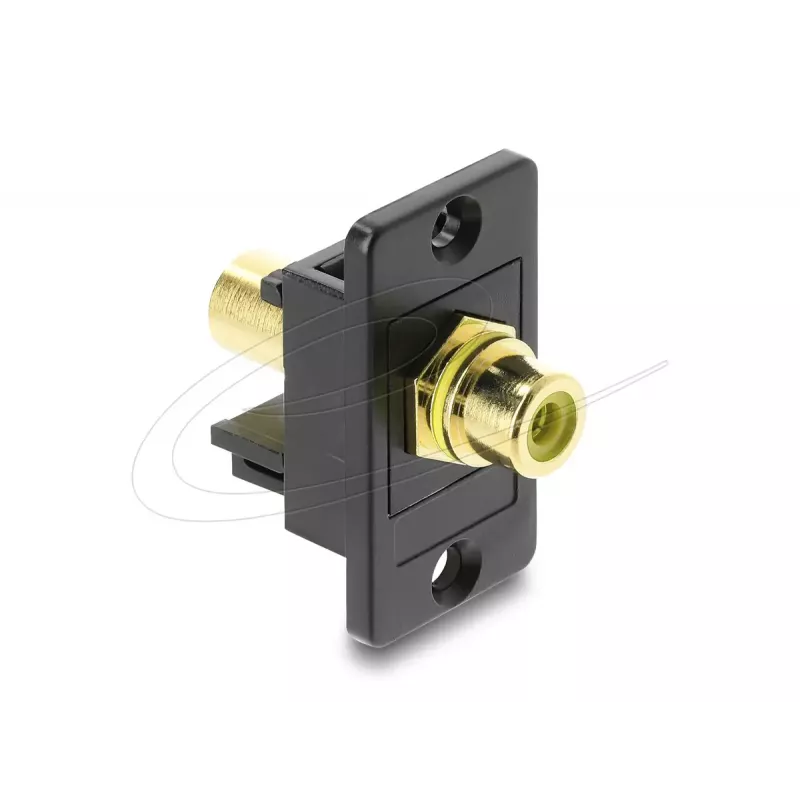

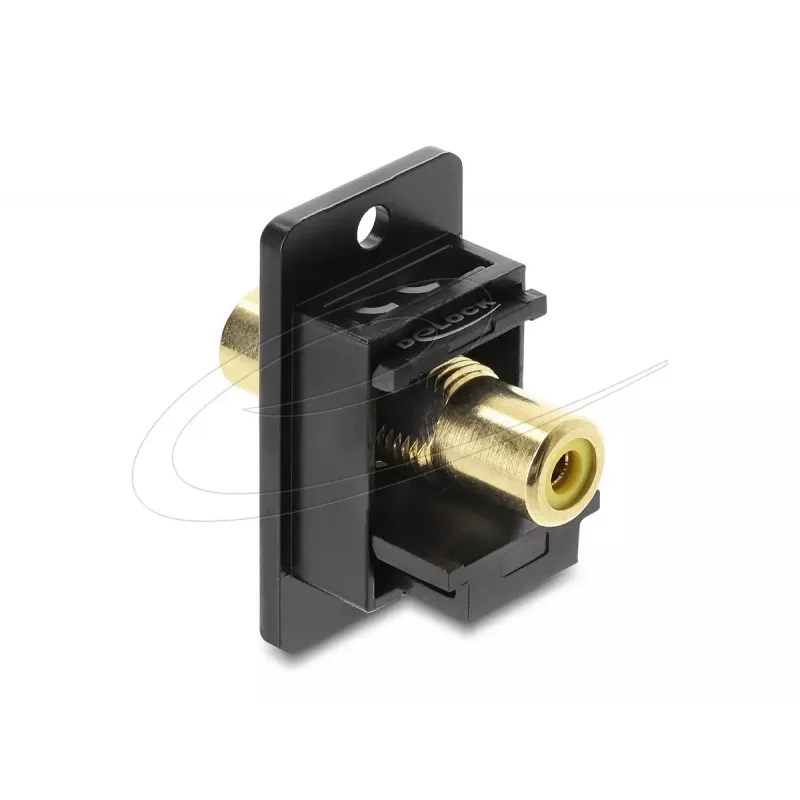

Keystone module DELOCK 91113 with RCA to RCA connectors, flat construction, black/yellow

This DELOCK 91113 keystone module is a flat panel-mount RCA-to-RCA connector designed for integration into keystone wall plates, panels or housings. Its compact, flat construction and colour coding (black/yellow) make it suitable for tidy audio or composite video terminations and modular AV installations.

Advantages

The flat construction minimises protrusion from wall plates or panels, while the RCA female-to-female configuration allows simple connection of standard RCA cables. Colour coding helps identify channels or signal types during installation, and the single-piece design provides an easy-to-install keystone module for AV distribution panels and small studio setups.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible keystone opening in a wall plate or panel until it snaps into place. Connect standard RCA cables to the female RCA jacks on each side to establish audio or composite video signal paths. Ensure proper channel identification using the colour coding when wiring multiple modules.

Recommendations

For reliable connections, use quality RCA cables and avoid excessive strain on the connectors. Match the black/yellow colour coding to your system’s channel mapping or labeling for consistent installation and maintenance.
