Keystone module DELOCK 90757 flat RJ-45 silver, 16.1×29.8×19.5 mm

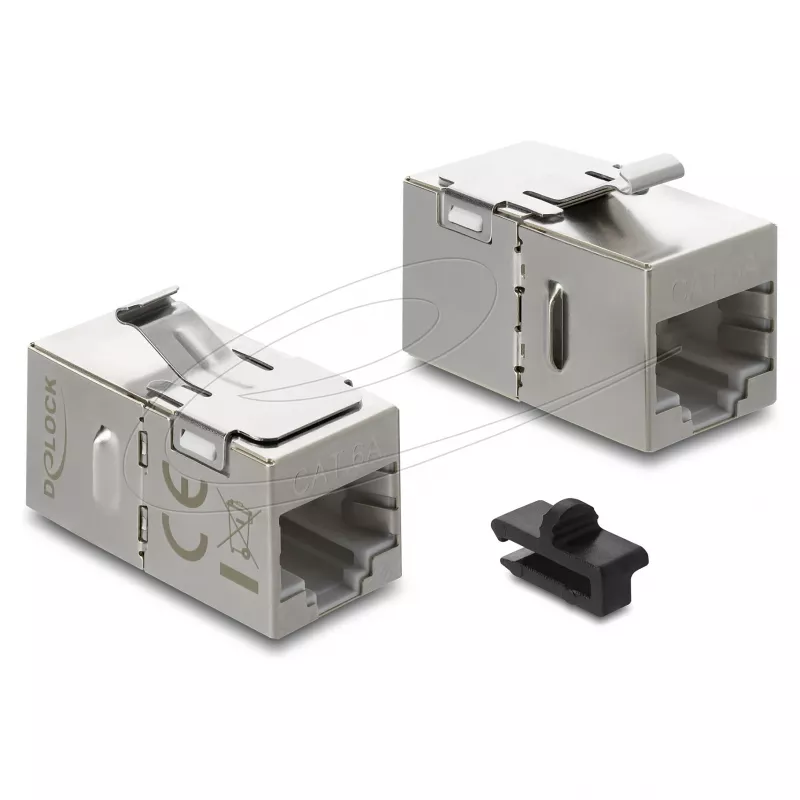

DELOCK 90757 is a flat keystone module with an RJ-45 female connector in a silver finish. Its compact dimensions (16.1 × 29.8 × 19.5 mm) and standardized keystone housing make it suitable for snap-in mounting in keystone patch panels, faceplates, surface-mount boxes and other modular network installation accessories. The module provides a shielded RJ-45 interface compatible with twisted pair cabling and is supplied individually in a polybag. A removable plastic clip can be attached to the module latch for additional mechanical stability.

Advantages

The flat design reduces depth requirements behind wall plates and in shallow enclosures, enabling installation where space is limited. Shielding and gold-plated contacts improve signal integrity and corrosion resistance, while the metal latch and optional plastic clip secure the connection. Standardized keystone dimensions ensure compatibility with a wide range of mounting frames and panels for easy, tool-free snap-in installation.

Suitable for

Key specifications

How to use

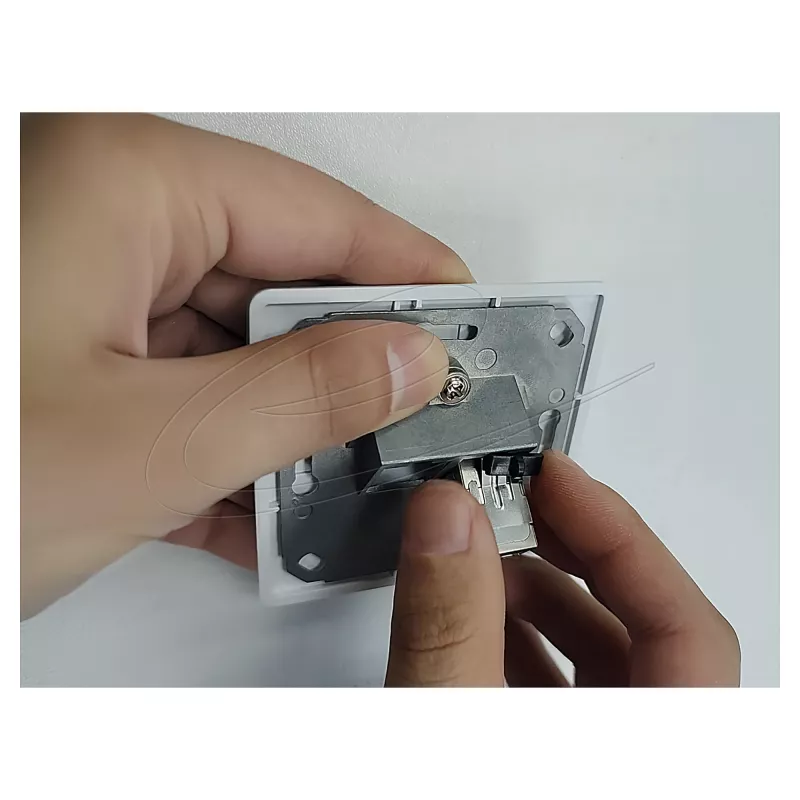

Terminate the shielded twisted-pair cable to a compatible RJ-45 female rear termination (punchdown or IDC as required by the adapter design) following the correct wiring scheme (T568A or T568B). Insert the module into a compatible keystone opening until the metal latch engages and, if desired, attach the supplied plastic clip to the module latch for extra retention. Ensure the cable shield is properly grounded at the installation point when used in shielded network environments.

Recommendations

Use this flat RJ-45 keystone module in Class-compliant Cat6A cabling runs where space behind faceplates or in enclosures is restricted. For optimal performance, observe proper shielding termination and use the module with compatible keystone frames and shielded patch panels to maintain overall system grounding and EMI protection.
