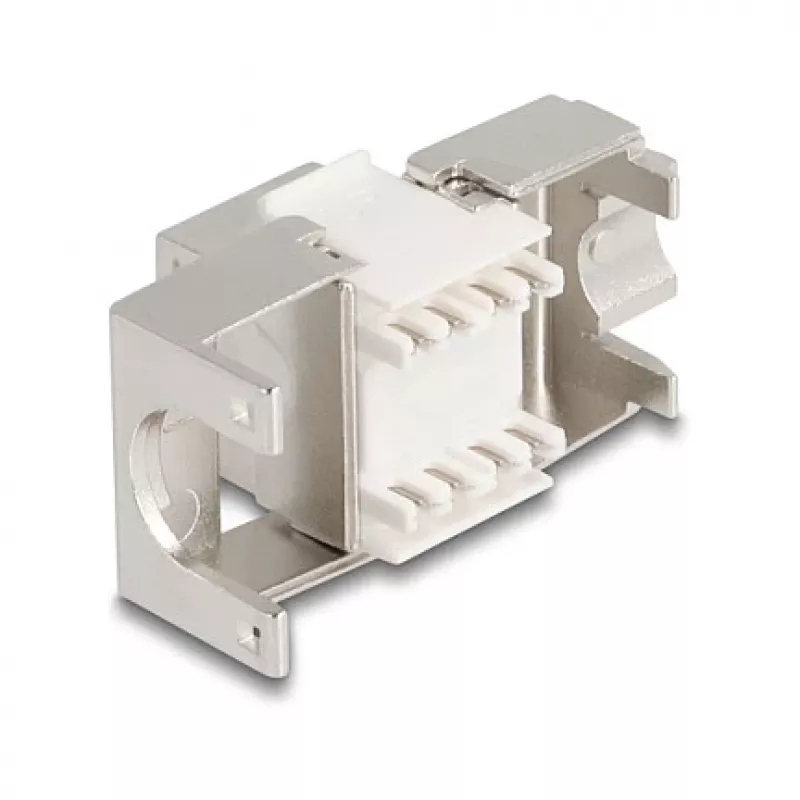

Keystone module DELOCK 90723 — flat RJ-45 insert, silver/white, 16×28.5×22.6 mm

DELOCK 90723 keystone module is a flat RJ-45 insert designed for low-profile network terminations. The compact module measures 16 × 28.5 × 22.6 mm and is finished in silver/white. Supplied as a single piece in a polybag, it is intended for snap-in mounting in keystone holders such as patch panels, wall plates or surface-mount boxes where a slimline connector is required for Cat6a cabling.

Advantages

The slimline, short-body design reduces depth requirement and enables installations in tight spaces without compromising on RJ-45 compatibility. The flat RJ-45 female interface supports standard keystone mounting and accepts LSA/22–24 termination styles suitable for Cat6a cabling. The compact dimensions and neutral silver/white finish make the module easy to integrate into a variety of keystone housings and faceplates.

Suitable for

Key specifications

How to use

Terminate the network cable onto the module using the LSA punchdown method or compatible termination tool for 22–24 AWG conductors, following Cat6a wiring standards for pair orientation and pair untwist limits. After termination, insert the module into the keystone opening of the patch panel, wall plate or surface-mount box until it snaps into place. Ensure the module is fully seated and the cable routing does not place excessive strain on the termination.

Recommendations

Use the module in installations where a reduced depth keystone is required. For best performance, follow Cat6a installation practices: keep pair untwist minimal near the termination, maintain proper cable bend radius, and use appropriate grounding and cable management. Verify terminations with a network tester after installation.
