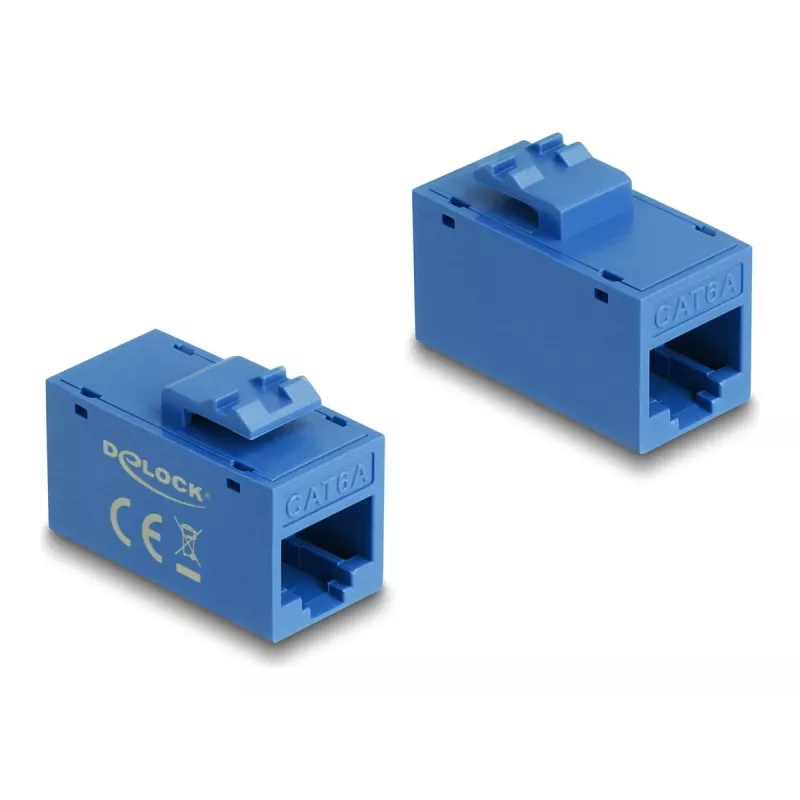

Keystone module DELOCK 90642 — flat RJ-45 insert, blue, 16.2×30×20.5 mm

DELOCK 90642 is a flat keystone module with an RJ-45 female connector designed for modular network installations. The blue plastic insert measures 16.2 × 30 × 20.5 mm and provides a standardized RJ-45 port suitable for mounting in keystone patch panels, face plates or surface-mount boxes. It enables neat termination of Ethernet twisted-pair cables and simple snap-in installation where standard keystone openings are used.

Advantages

The flat form factor reduces protrusion behind face plates and in shallow housings, while the standardized keystone dimensions ensure compatibility with common mounting frames and panels. The RJ-45 female interface provides a universal connection point for Ethernet patch cords and simplifies the organization of network cabling. The blue colour offers a clear visual identification in multi-port installations.

Suitable for

Key specifications

How to use

Insert the keystone module into a compatible keystone opening of a patch panel, face plate or surface-mount box until it snaps into place. Terminate the twisted-pair cable using a compatible RJ-45 termination method on the opposite end (punchdown block or pre-terminated patch cords as required). Connect an Ethernet patch cable to the RJ-45 female port to establish the network link. Ensure the module is seated securely to maintain reliable contact and alignment.

Recommendations

For reliable performance, use this module with properly prepared twisted-pair cables and compatible keystone housings or panels. Avoid excessive bending behind the face plate and verify the port alignment after installation. Use colour coding consistently to match site cabling plans.
