Keystone module DELOCK 86609 — flat RJ-45, black, 16.4×37.5×22 mm

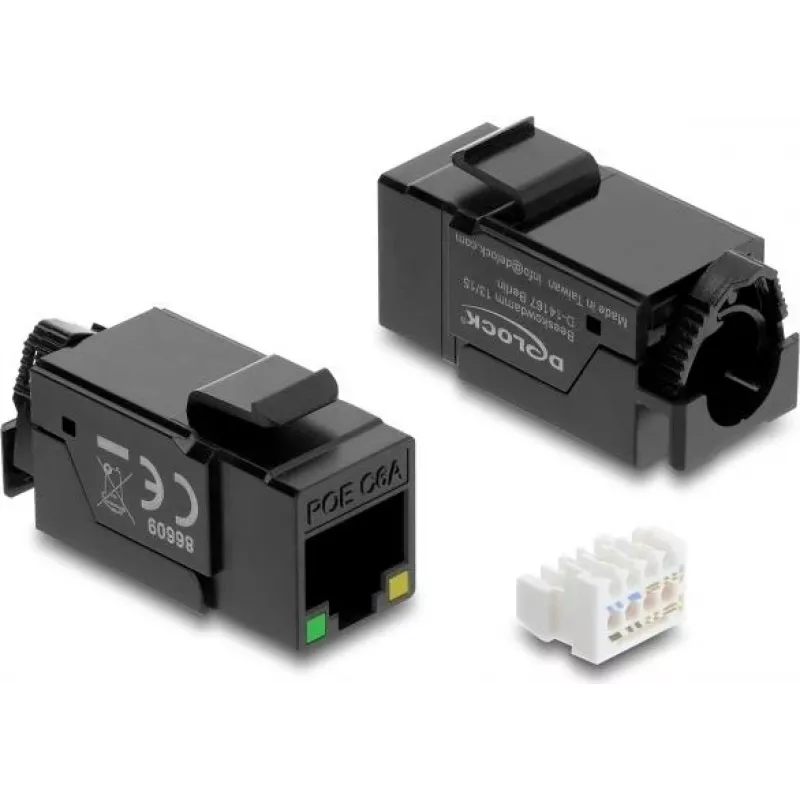

DELOCK 86609 keystone module is a compact, flat RJ-45 insert in black designed for snap-in mounting into keystone panels, face plates or surface-mount boxes. With dimensions of 16.4 × 37.5 × 22 mm it provides a space-saving RJ-45 interface for terminating Ethernet twisted-pair cable. The module supports shielded connections and includes a tool-free LSA termination area for direct cable termination. Integrated PoE detection LEDs indicate the presence and type of Power-over-Ethernet supply, and a rear locking clip secures the network cable without the need for cable ties.

Advantages

The module’s flat form factor and standardised keystone dimensions enable easy snap-in installation in common panels and wall plates. Shielded construction meets Cat.6A performance expectations and helps maintain signal integrity in environments with electromagnetic interference. The tool-free LSA termination simplifies installation and reduces setup time, while the integrated PoE indicator LEDs provide immediate visual confirmation of PoE presence and class. The built-in rear locking clip secures the cable for a tidy, strain-relieved connection without additional fastening materials.

Suitable for

• Structured cabling installations in offices, server rooms and communication cabinets
• Keystone patch panels and modular face plates requiring a flat RJ-45 interface
• Outlet boxes and surface-mount boxes where space is limited
• Environments where PoE-powered devices are used and quick PoE detection is needed

Key specifications

• Connector: 1 × RJ-45 jack (8P/8C)
• Termination: 1 × LSA, tool-free
• Category: Cat.6A specification
• Shielding: Shielded (STP)
• PoE detection: Integrated LEDs indicating presence and type of PoE
• Pinout: TIA-568A/B compatible
• Dimensions: 16.4 × 37.5 × 22 mm (W × D × H)
• Mounting: Keystone snap-in compatible
• Colour: Black

How to use

Prepare the twisted-pair cable by stripping the outer jacket and untwisting pairs only as far as needed for termination. Terminate conductors into the tool-free LSA termination area following the chosen TIA-568A or TIA-568B pinout. After termination, snap the module into the keystone opening of a patch panel, face plate or surface-mount box until it locks in place. Connect an RJ-45 patch cable to the module’s front jack to establish the network link. Use the rear locking clip to secure the cable for strain relief without requiring additional cable ties.

Recommendations

Use appropriate shielded twisted-pair cable and ensure proper grounding when deploying the shielded module to maintain Cat.6A performance. Verify PoE type and power requirements of connected devices; use the integrated LEDs to confirm PoE presence before powering sensitive equipment. Avoid excessive untwisting of pairs and follow structured cabling best practices for reliable performance.
