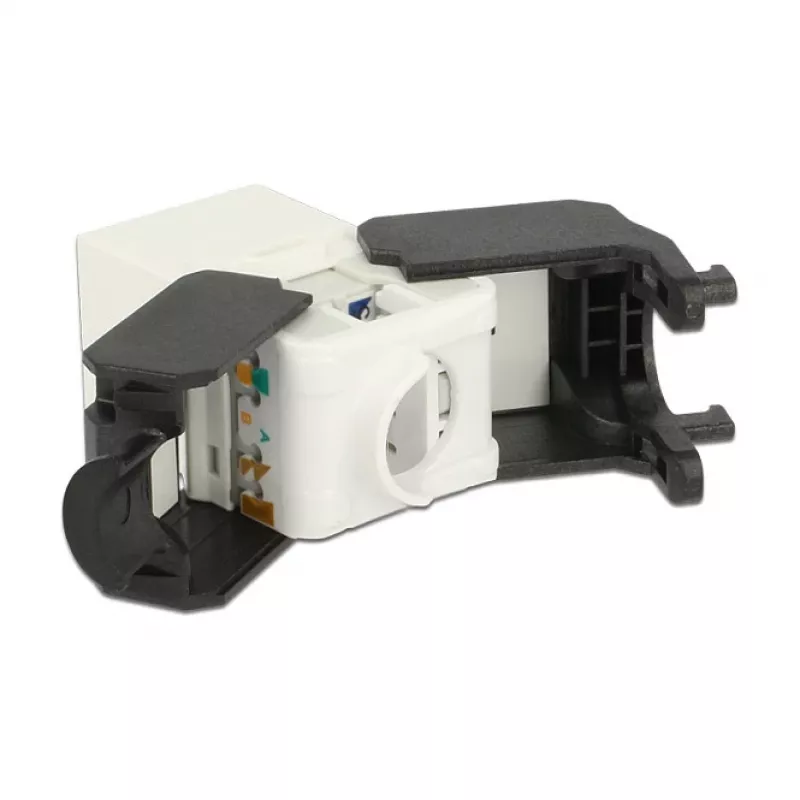

Keystone module DELOCK 86266, RJ-45 to LSA, black/white, 16×37.8×22.5 mm

DELOCK 86266 keystone module provides an RJ-45 to LSA connection in a compact housing (16 mm width, 37.8 mm depth, 22.5 mm height). Available in black and white finishes, this module combines a standard RJ-45 jack with LSA-style termination suitable for structured cabling systems, patch panels, faceplates and surface-mount boxes. The module's standardised keystone dimensions allow easy snap-in mounting into keystone frames and panels, enabling straightforward Ethernet terminations for twisted pair cabling.

Advantages

The keystone module offers a compact and standardised solution for converting twisted pair cable to an RJ-45 interface while preserving professional LSA termination practice. Its snap-in keystone form factor ensures compatibility with common keystone panels and faceplates, simplifying installation and minimizing required tools. Two colour options—black and white—facilitate consistent visual organisation in installations and make it easier to match existing panels or faceplates.

Suitable for

• Structured cabling installations in offices and server rooms
• Patch panels and keystone wall plates
• Surface-mount boxes and small enclosures
• Ethernet terminations for twisted pair (UTP/STP) cables

Key specifications

• Connector: RJ-45 jack to LSA termination
• Housing dimensions: 16 × 37.8 × 22.5 mm (W × D × H)
• Mounting type: standard keystone snap-in
• Colour options: black and white
• Application: twisted pair cable to RJ-45 Ethernet terminations

How to use

Prepare the twisted pair cable by stripping the outer jacket to the appropriate length and arrange the individual conductors according to the chosen wiring standard. Terminate the conductors into the LSA contacts of the module using an appropriate punch-down or LSA tool, ensuring each conductor is fully seated. Snap the keystone module into a compatible keystone opening on a patch panel, faceplate or surface-mount box until it locks into place. Plug an RJ-45 connector from the network device or patch cable into the front jack to complete the Ethernet link.

Recommendations

For reliable results, use appropriate LSA/punch-down tooling and verify wiring with a cable tester after termination. Select the module colour that matches or contrasts your panel for easier identification, and avoid exposing the module to excessive mechanical stress during installation.
