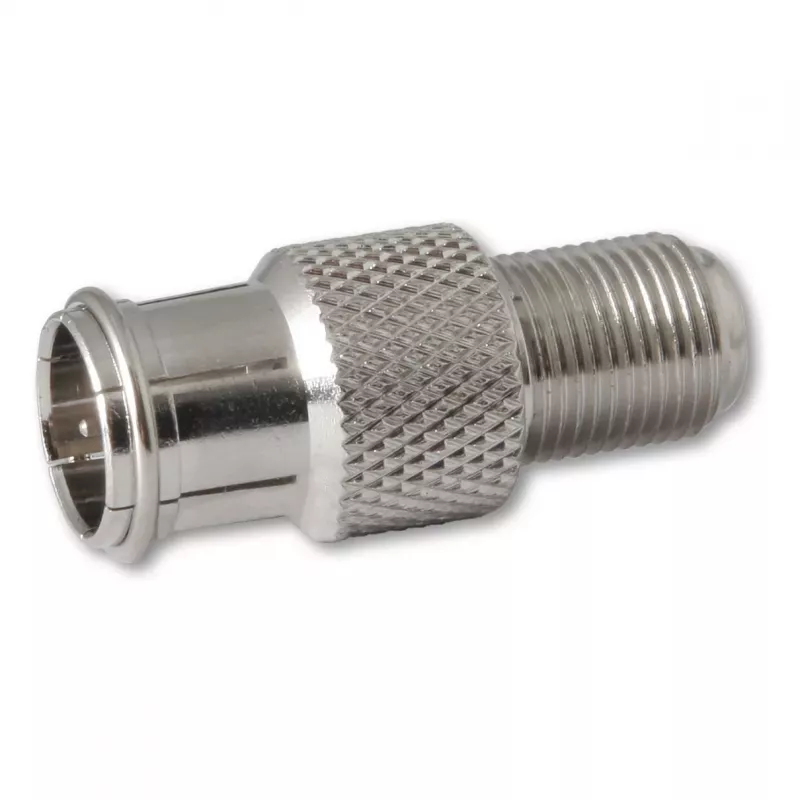

Kathrein EMU 05 F-Male Test Connector

The Kathrein EMU 05 is a high-quality F-male test connector designed for professional use in SAT, cable TV, and terrestrial TV systems. It serves as a termination plug for unused F-ports, effectively preventing signal reflections and interference to ensure optimal system performance. Manufactured by Kathrein, a trusted brand in RF technology, this connector is ideal for measurement and system optimization tasks.

Advantages

• Prevents signal reflections and interference by terminating unused F-ports
• High shielding effectiveness >100 dB for excellent signal integrity
• Wide frequency range from 5 to 2400 MHz covering all common applications
• Robust metal housing for durability and reliable performance
• Easy screw-on installation without special tools

Suitable for

• Terminating unused F-connector ports in SAT, cable TV, and terrestrial TV systems
• Measurement and system optimization in RF installations
• Professional installers and technicians requiring reliable signal termination

Key specifications

• Connector Type: F-Male
• Impedance: 75 Ohm
• Frequency Range: 5 - 2400 MHz
• Return Loss: >20 dB
• Shielding Effectiveness: >100 dB
• Housing Material: Metal
• Installation: Screw-on
• DC Pass-Through: No
• Signal Type: RF (Radio Frequency)
• Compatibility: Universal F-connector standard

Recommendations

For best results, use the Kathrein EMU 05 to terminate all unused F-ports in your system. This simple step can significantly improve signal quality and reduce interference. Always ensure a secure screw-on connection for optimal shielding.
