Kaiser LED Lighting Unit RB 40D

The Kaiser LED Lighting Unit RB 40D is a professional-grade LED lighting system designed for repro photography, digitization, and copy work. Featuring two adjustable light heads with 40 LEDs each, it delivers a total of 2400 lumens of daylight-balanced light at 5000 K with a high CRI >95, ensuring accurate color reproduction. The stepless dimming (0-100%) allows precise control, and each head can be dimmed independently via the integrated control unit. The aluminum housing ensures durability and efficient heat dissipation, while the flicker-free operation and low heat emission protect sensitive originals. The unit mounts easily on Kaiser copy stands (RS 1, RS 2, RS X, RS A) using clamping brackets. Power is supplied via a mains adapter (100-240V AC, 50/60 Hz) with a 2.5 m cable.

Advantages

High-quality LED lighting with excellent color rendering (CRI >95) and stepless dimming for precise illumination control. Flicker-free and low heat emission ensure safe handling of delicate documents and artwork. Robust aluminum construction and easy mounting on compatible copy stands.

Suitable for

• Repro photography and digitization of documents, books, and artwork
• Copy work and product photography
• Studio lighting for small to medium-sized objects

Key specifications

• Light Source: LED
• Number of Light Heads: 2
• LED Count per Head: 40
• Total LED Count: 80
• Color Temperature: 5000 K (Daylight)
• CRI: >95
• Power Consumption per Head: 12 W
• Total Power Consumption: 24 W
• Luminous Flux per Head: 1200 lm
• Total Luminous Flux: 2400 lm
• Dimming: Stepless, 0-100%
• Control: Integrated control unit with separate dimming for each head

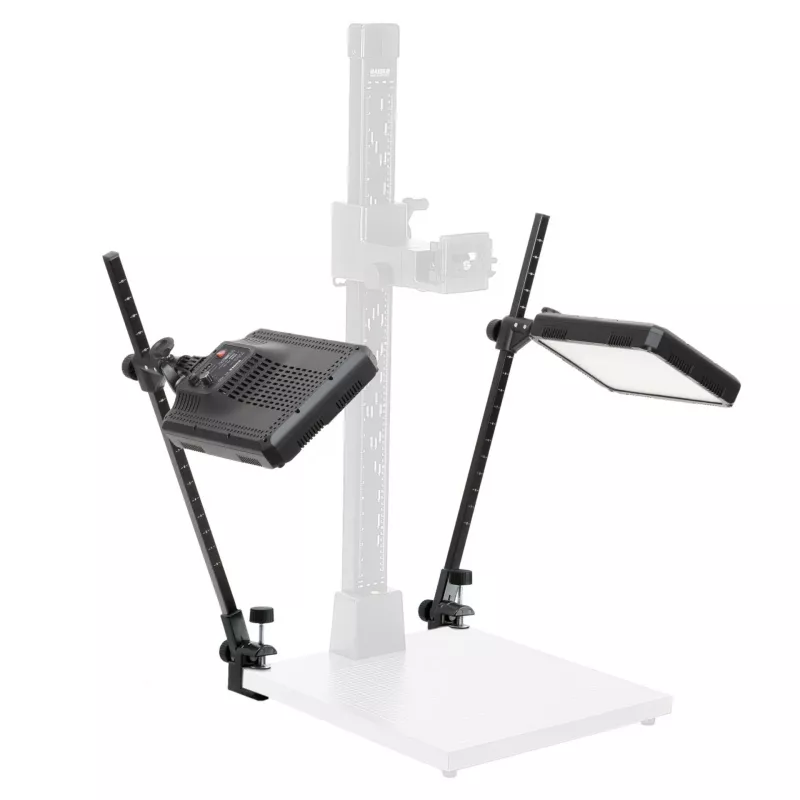

• Mounting: Clamping brackets for Kaiser copy stands (RS 1, RS 2, RS X, RS A)
• Housing Material: Aluminum
• Power Supply: Mains adapter, 100-240V AC, 50/60 Hz
• Power Cable Length: Approx. 2.5 m
• Operating Temperature: 0°C to 40°C
• Beam Angle: Wide, even illumination

Recommendations

For optimal results, pair with a Kaiser copy stand and use the stepless dimming to adjust brightness according to your subject. Ideal for archival digitization and professional reproduction work.
