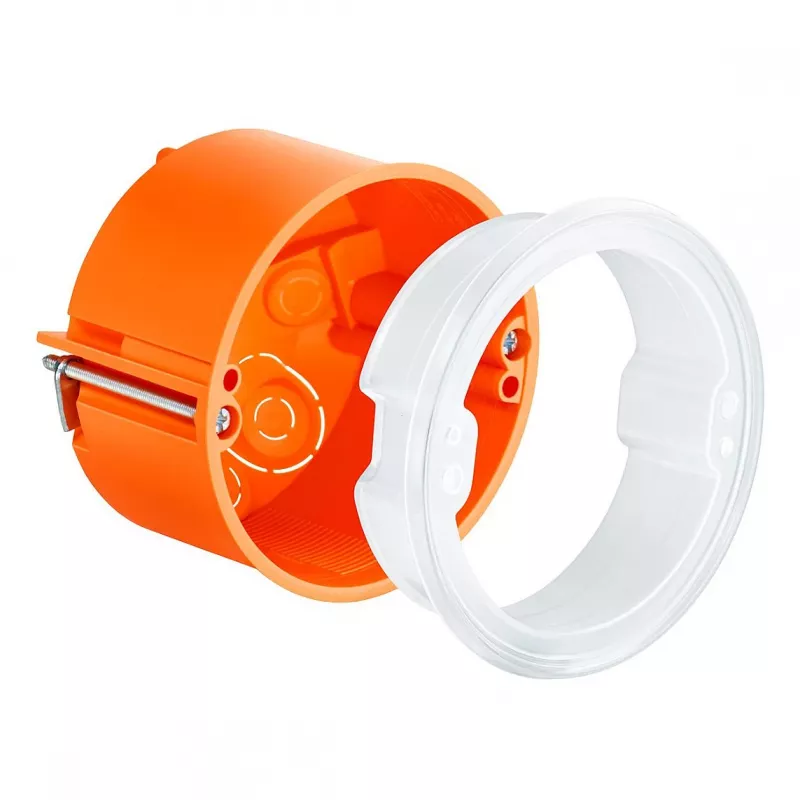

KAISER ELEKTRO 9075-01 74mm x 74mm x 50mm Flush-Mounted Device Box for Hollow Wall/Plasterboard, Halogen-Free, IP20

The KAISER ELEKTRO 9075-01 is a high-quality flush-mounted device box designed for installation in hollow walls and plasterboard. With an outer diameter of 74 mm, an installation opening diameter of 68 mm, and a depth of 50 mm, this box provides a secure and reliable housing for standard single device inserts such as switches and sockets. Manufactured from halogen-free plastic, it ensures safety and environmental compliance. The box features 8 flexible membrane cable entries, accommodating conduit sizes up to M25, and is air-tight to prevent drafts. Its IP20 protection class makes it suitable for indoor use. The flame-retardant and halogen-free properties enhance fire safety.

Advantages

This device box offers easy installation with its flush-mount design and flexible cable entries. The air-tight construction improves energy efficiency by reducing air leakage. Halogen-free material ensures low smoke and toxic gas emission in case of fire, making it ideal for residential and commercial buildings. The robust plastic housing provides long-lasting durability.

Suitable for

• Installation of standard switches and sockets in plasterboard walls
• Hollow wall applications in drywall construction
• Indoor electrical installations requiring IP20 protection

Key specifications

• Brand: KAISER ELEKTRO
• Model: 9075-01
• EAN: 4013456213104
• Type: Device Box
• Installation: Flush-mounted, for hollow wall/plasterboard
• Outer Diameter: 74 mm
• Installation Opening Diameter: 68 mm
• Depth: 50 mm
• Material: Halogen-free plastic
• Protection Class: IP20
• Flame Retardant: Yes
• Air-tight: Yes
• Halogen-free: Yes
• Cable Entries: 8 flexible membrane entries
• Conduit Entry Size: Up to M25
• Number of Device Inserts: 1

Recommendations

For optimal performance, pair this device box with compatible KAISER ELEKTRO accessories and ensure proper installation according to local electrical codes. Suitable for use with standard 68 mm hole saws for precise cutouts.
