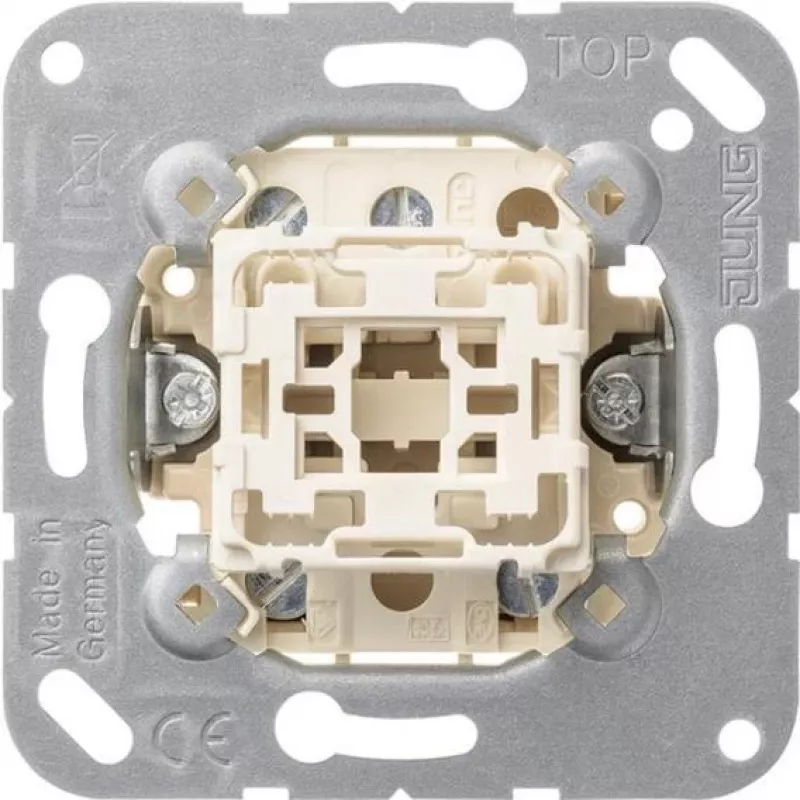

JUNG 506-20U Universal Rocker Switch, 20 AX, 250 V AC, Flush-Mounted, Thermoplastic, Insert Only

The JUNG 506-20U is a high-quality universal rocker switch designed for flush-mounted installation. This switch insert (without cover plate and frame) is suitable for ohmic and inductive loads, offering reliable switching performance for various applications. With a rated current of 20 AX and a voltage of 250 V AC, it is ideal for demanding electrical installations.

Advantages

Robust thermoplastic housing ensures durability and long service life. Screw terminals provide secure and easy connection. The universal switch function (Off/Changeover) offers flexibility for different circuit configurations. Compact design with a mounting depth of 32 mm fits standard flush-mounted boxes.

Suitable for

• Residential and commercial lighting control
• Switching of ohmic and inductive loads
• Integration into JUNG A, CD, LS, and SL series systems

Key specifications

• Switch Type: Rocker Switch
• Switch Function: Universal (Off/Changeover)
• Number of Poles: 1-pole
• Rated Current: 20 AX
• Rated Voltage: 250 V AC
• Mounting Type: Flush-mounted
• Connection Type: Screw Terminals
• Number of Terminals: 3 (L, L1, L2)
• Material: Thermoplastic
• Protection Class: IP20
• Operating Temperature: -5 to +40 °C
• Installation Depth: 32 mm
• Standards: VDE

Recommendations

For complete installation, pair this insert with a compatible JUNG rocker/cover and frame from the A, CD, LS, or SL series. Ensure proper wiring according to local electrical codes.
