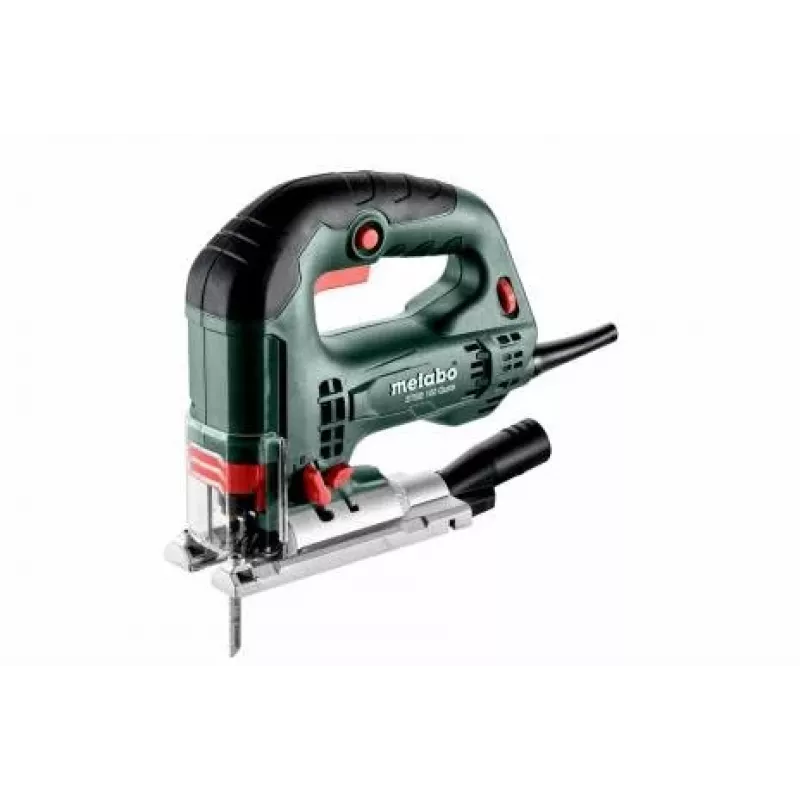

Jigsaw Metabo STEB 100 Quick

The Metabo STEB 100 Quick jigsaw is a compact top-handle electric saw designed for precision cutting tasks. Equipped with a 710 W motor and a maximum idle stroke rate of 3100 spm, this lightweight 2.1 kg tool delivers controlled cutting performance. It offers a cutting depth up to 100 mm in wood and a bevel capacity of 45° for angled cuts. The jigsaw includes Metabo Quick tool-free blade change with automatic ejection, a non-slip soft-grip top handle for comfortable guidance, and electronic speed control for matching stroke rate to different materials.

Advantages

The STEB 100 Quick provides precise and material-appropriate sawing through a combination of variable stroke rate, selectable pendulum action and a low-lying blade guide with spring support. Metabo Quick allows fast, tool-free blade changes and automatic ejection, reducing downtime. Built-in Vario-Tacho-Constamatic (VTC) full-wave electronics maintain a nearly constant stroke rate under load for consistent cutting performance. Additional features such as selectable chip blowing and the ability to connect an all-purpose vacuum cleaner help keep the cutting line clear and the work area cleaner.

Suitable for

• Precision straight and curved cuts in wood and panel materials
• Bevel cutting up to 45° for joinery and trim work
• Fast blade changes during renovation or workshop work
• Work that requires dust extraction or a clear view of the cut line

Key specifications

• Motor power: 710 W
• Maximum idle stroke rate: 3100 spm
• Maximum cutting depth in wood: 100 mm
• Bevel capacity: 0–45°
• Weight: 2.1 kg (approx.)
• Top-handle design with non-slip soft-grip surface
• Variable stroke rate and selectable pendulum action
• Tool-free blade change with automatic ejection (Metabo Quick)
• Chip blowing function and dust extraction port compatible with universal vacuum cleaners
• Non-detachable protective glass that can be pushed down for extraction and chip protection

How to use

Before use, select an appropriate saw blade for the material and ensure it is correctly inserted using the Metabo Quick system; the blade will lock in place and automatically eject when released. Adjust the variable stroke rate and pendulum action to match the material — lower speed and reduced pendulum for fine or hard materials, higher speed and more pendulum for fast cuts in softer materials. Set the bevel angle up to 45° when angled cuts are required and secure the workpiece. Use the chip blowing function or connect a compatible vacuum cleaner to keep the cut line visible. Maintain a steady feed without forcing the tool to ensure clean cuts and prolonged blade life.

Recommendations

Use sharp, material-appropriate blades and check blade condition regularly. For guided straight cuts, pair the jigsaw with an appropriate precision guide rail or guiding device accessory. Wear suitable eye and hearing protection and follow general safety rules for powered saws. Keep the protective glass in place for chip protection and lower it when using dust extraction for better removal of debris.
