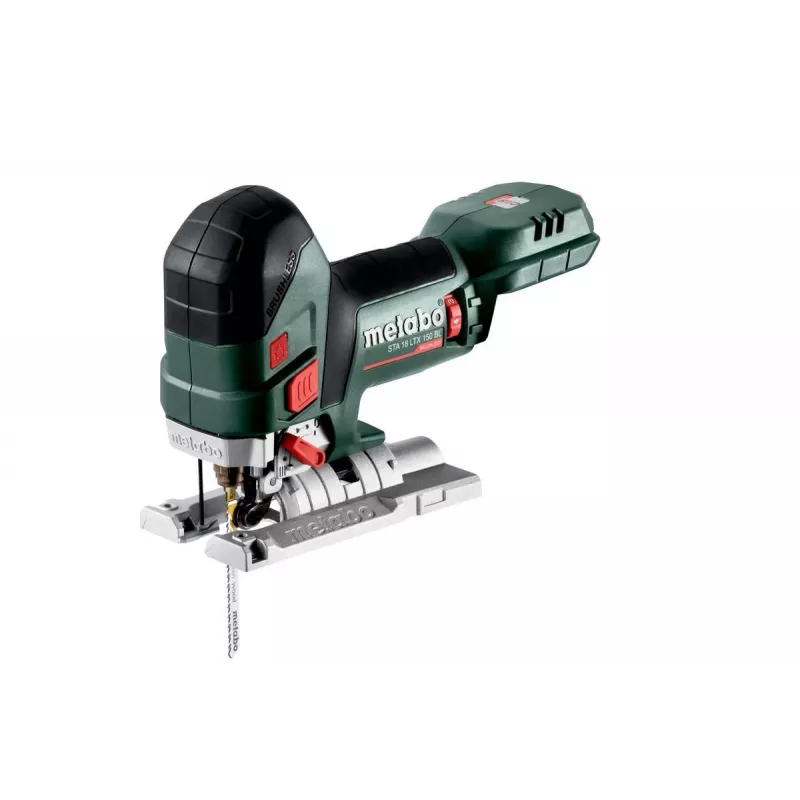

Jigsaw Metabo STA 18 LTX 150 BL 3500 spm 1.9 kg

The Metabo STA 18 LTX 150 BL is a cordless jigsaw designed for demanding cutting tasks. Powered by an 18 V battery and a brushless motor, it delivers up to 3500 strokes per minute while weighing only 1.9 kg. The tool offers a cutting depth in wood of up to 150 mm and bevel settings from -45° to 45°, allowing angled and straight cuts. Built-in features such as an LED work light, chip blowing, tool-free blade change and a low-lying blade guide support precise and efficient work.

Advantages

The brushless motor provides constant stroke numbers under load and increased efficiency for faster cutting progress. The saw has a soft-grip surface and an ergonomic design for comfortable handling in various working positions. Metabo Quick enables tool-free saw blade changes with automatic ejection, while restart protection prevents unintentional start-up after a battery change. Additional features include chip-blowing for a clear view of the cutting line, integrated LED lighting, a robust die-cast aluminum transmission housing for durability, and the ability to connect an all-purpose vacuum cleaner for dust extraction.

Suitable for (tasks / use cases)

• Curved and straight cutting of wood and wood-based panels
• Bevel cuts and mitres with settings from -45° to 45°
• On-site carpentry, renovation and fitting work
• Detail cutting where visibility and precision are required
• Work requiring quick blade changes and mobile operation

Key specifications

• Battery voltage: 18 V
• Idle stroke rate: up to 3500 spm
• Weight: 1.9 kg (without battery)
• Maximum cutting depth in wood: 150 mm
• Bevel angle range: -45° to 45°
• Brushless motor for increased efficiency and constant performance
• Tool-free blade change system with automatic ejection
• Integrated LED work light and chip-blowing function
• Dust extraction port compatible with all-purpose vacuum cleaners
• Durable die-cast aluminum transmission housing

How to use

Fit a charged 18 V Metabo battery into the jigsaw and select the appropriate blade for the material and cut type. Set the desired stroke rate and bevel angle between -45° and 45° as needed. Use the soft-grip handle to guide the saw, keep the workpiece securely clamped, and activate the chip-blowing and LED light functions for improved visibility. For blade replacement, engage Metabo Quick for tool-free removal and insertion with automatic ejection. Observe restart protection: the tool will not start unintentionally after battery changes.

Recommendations

Use blades matched to the material (wood, laminate, or metal) and the required tooth pitch for clean cuts. Secure the workpiece, wear appropriate eye and hearing protection, and connect a vacuum cleaner for dust reduction when working indoors. Switch off the LED when cutting from below to avoid glare. Store the tool and accessories in the metaBOX for safe transport and organization.
