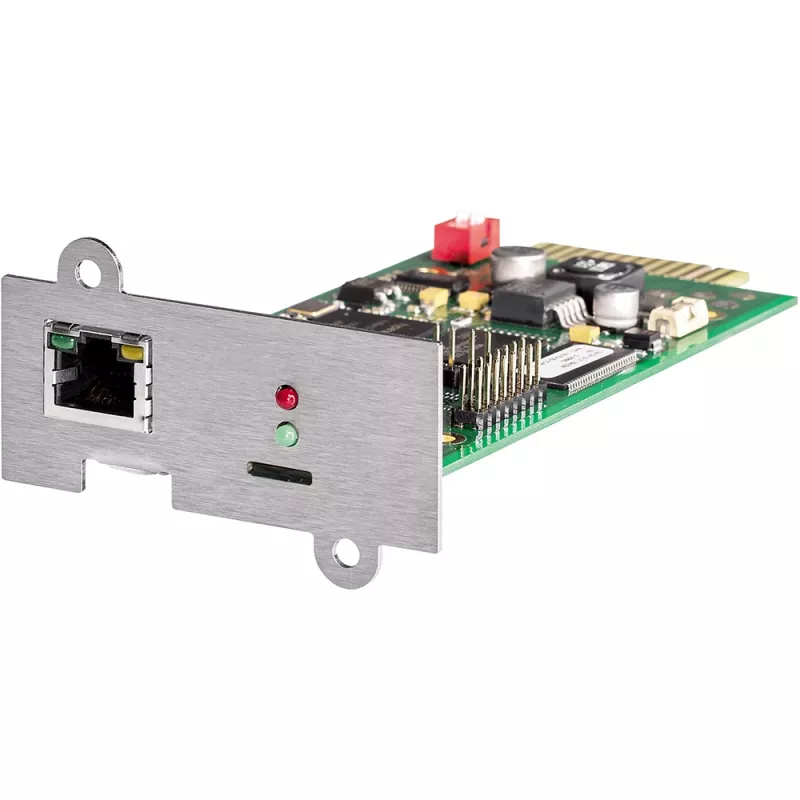

Legrand CS141B SK, Network management card, Green, Grey, RFC 1628, ARM, 800 MHz, 512 MB

Legrand CS141B SK, Network management card, Green, Grey, RFC 1628, ARM, 800 MHz, 512 MB
Legrand CS141B SK, Network management card, Green, Grey, RFC 1628, ARM, 800 MHz, 512 MB
R10,402
The network interfaces for managing UPS do not require any external software. They include a proprietary system capable of real-time control of the operation of the UPS and managing numerous events (power failure, overload, bypass, problem, etc.) and as a result executing a series of actions.Availab... Read More
Stock Out Of Stock Code 93616 Brand LEGRAND Model 310931 Warranty 2 Years

Shipping & Returns

The network interfaces for managing UPS do not require any external software. They include a proprietary system capable of real-time control of the operation of the UPS and managing numerous events (power failure, overload, bypass, problem, etc.) and as a result executing a series of actions.
Available in external and internal version (in this case it is inserted in a dedicated slot in the UPS).
Supply voltage 9 - 30 VDC (power supply included in external versions).

Legrand CS141B SK. Product type: Network management card, Product colour: Green, Grey, MIB support: RFC 1628. Management protocols: SNMP v2/v3, Supported network protocols: IPv4, IPv6, HTTP, HTTPS, DNS, DHCP, SMTP, NTP, SFTP, UPSTCP (UNMS), MODBUS over IP, RCCMD. Interface type: RJ-45, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Input voltage: 12 V, Input current: 0.15 A. Certification: CE, UL / NEMKO

Key Highlights
  • Event log with date and time
  • Memorising the trend of the main operating data, complete with date and time
  • E-mail transmission
  • Accomplishment of scheduled actions
  • Shutdown on remote computers
  • Transmission of SNMP trap messages
  • Turning the UPS off and on
  • Transmitting “Wake On LAN (WOL)” signals
  • Compatible with SNMP protocol
  • Data and configuration display via the Internet browser (Internet Explorer, Mozilla Firefox, Opera, etc…)
  • 10/100Mbit Base-T Ethernet link (half-duplex and full-duplex) with self-recognition function
  • DHCP Function
  • Network management card
  • 66 g
  • Green, Grey
Specifications
Built-in display
No
Cabling technology
10/100
Certification
CE, UL / NEMKO
Depth
120 mm
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Flash memory
512 MB
Height
29 mm
Input current
0.15 A
Input voltage
12 V
Interface type
RJ-45
LED indicators
Yes
Management protocols
SNMP v2/v3
MIB support
RFC 1628
Networking standards
IEEE 802.3, IEEE 802.3u
Operating temperature (T-T)
0 - 70 °C
Processor family
ARM
Processor frequency
800 MHz
Product colour
Green, Grey
Product type
Network management card
Quantity per pack
1 pc(s)
RAM capacity
128 MB
Storage temperature (T-T)
0 - 70 °C
Supported network protocols
IPv4, IPv6, HTTP, HTTPS, DNS, DHCP, SMTP, NTP, SFTP, UPSTCP (UNMS), MODBUS over IP, RCCMD
Syslog
Yes
Web-based management
Yes
Weight
66 g
Width
60 mm

Leaflet

Open Leaflet
