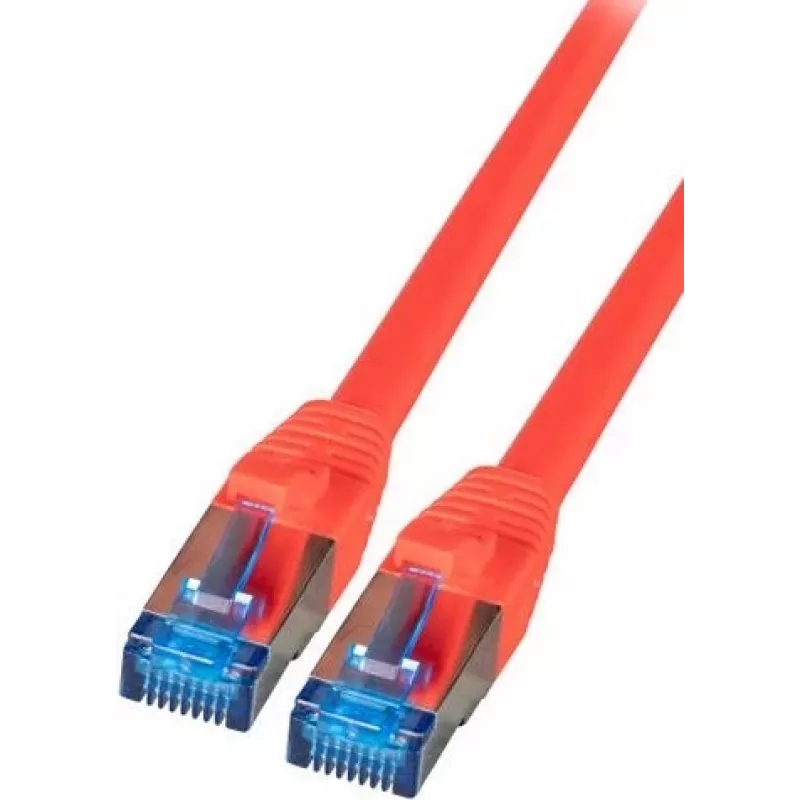

IT-BUDGET Full Copper Premium Patch Cable - Super Flex TPE - Cat.6A - 500MHz - LSZH - PoE+ - AWG 27 - Red - 0.50 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance network cable designed for demanding environments. With Cat.6A certification, it supports 10 Gigabit Ethernet (10GBASE-T) and operates at a bandwidth of 500 MHz. The cable features full copper conductors (AWG 27) and a super flexible TPE jacket, ensuring durability and easy installation even in tight spaces. It is LSZH (Low Smoke Zero Halogen) rated for safety and supports PoE+ (IEEE 802.3at) for power over Ethernet applications.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its stranded construction and TIA/EIA-568B wiring. The super flexible TPE jacket allows for tight bends without performance loss, making it ideal for data centers and office networks. Its full copper conductors guarantee reliable data transmission and compliance with industry standards.

Suitable for

• Data centers requiring high-density cabling
• Office networks with frequent reconfiguration
• PoE+ devices such as IP cameras, access points, and VoIP phones
• 10GBASE-T applications over short distances

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Full Copper
• Conductor Gauge: AWG 27
• Jacket Material: TPE (Thermoplastic Elastomer)
• Jacket Flexibility: Super Flexible
• Fire Safety Standard: LSZH (Low Smoke Zero Halogen)
• Power over Ethernet (PoE) Support: PoE+ (IEEE 802.3at)
• Cable Length: 0.50 m
• Cable Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Cable Construction: Stranded

Recommendations

For optimal performance, use this cable with Cat.6A compatible switches and network cards. It is backward compatible with Cat.6, Cat.5e, and Cat.5 networks. Ensure proper cable management to maintain bend radius and avoid kinking.
