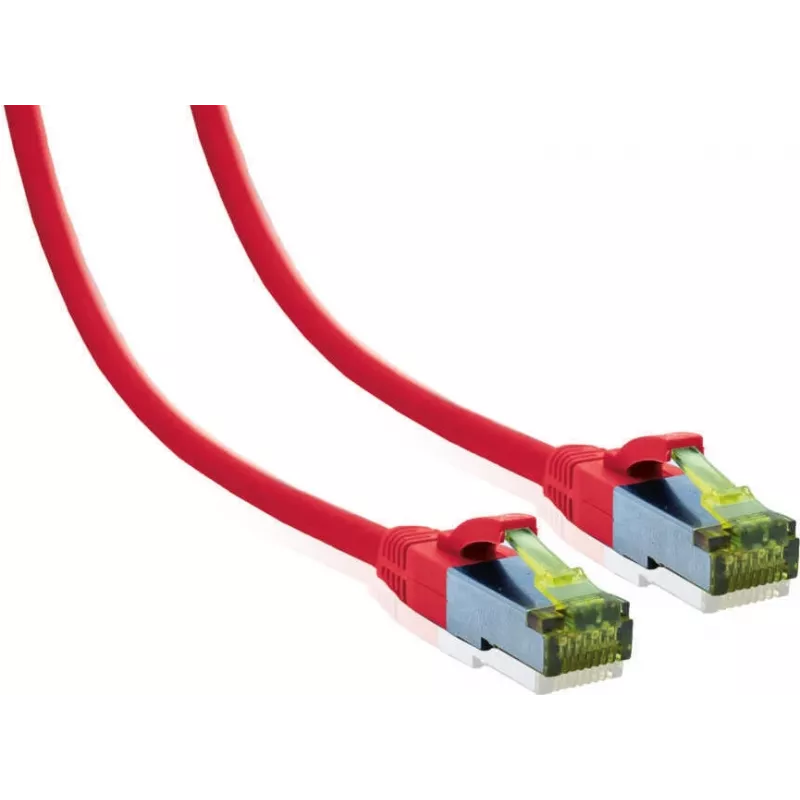

IT-BUDGET Full Copper Premium Patch Cable - Cat.6A with Cat.7 Raw Cable - 600 MHz - Halogen-Free - PoE+ - 10Gbit - Red - 20 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance network cable designed for demanding data center and enterprise environments. It combines Cat.6A performance with a Cat.7 raw cable construction, delivering exceptional bandwidth and reliability. With full copper conductors, S/FTP shielding, and halogen-free jacket, this cable ensures optimal signal integrity and safety.

Advantages

Full copper conductors guarantee maximum conductivity and signal quality. The S/FTP shielding (PiMF) provides excellent protection against electromagnetic interference. Halogen-free jacket reduces toxic smoke in case of fire. PoE+ support enables power and data over a single cable. 600 MHz bandwidth and 10 Gbps data rate future-proof your network.

Suitable for

• Data centers
• Office networks
• Home networks
• PoE applications (e.g., IP cameras, access points)
• High-speed server connections

Key specifications

• Cable Type: Patch Cable
• Cable Standard: Cat.6A (Category 6A)
• Raw Cable Standard: Cat.7 (Category 7)
• Conductor Material: Full Copper (Cu)
• Shielding: S/FTP (PiMF)
• Bandwidth: 600 MHz
• Data Transfer Rate: 10 Gigabit Ethernet (10GBase-T)
• PoE Support: PoE+ (IEEE 802.3at)
• Jacket Material: LSZH (Low Smoke Zero Halogen) / Halogen-free
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Cable Length: 20 m
• Color: Red
• Conductor Construction: Stranded
• AWG: 26 AWG
• Wiring Standard: TIA/EIA 568B
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with Cat.6A or higher compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for structured cabling systems requiring high reliability and low latency.
