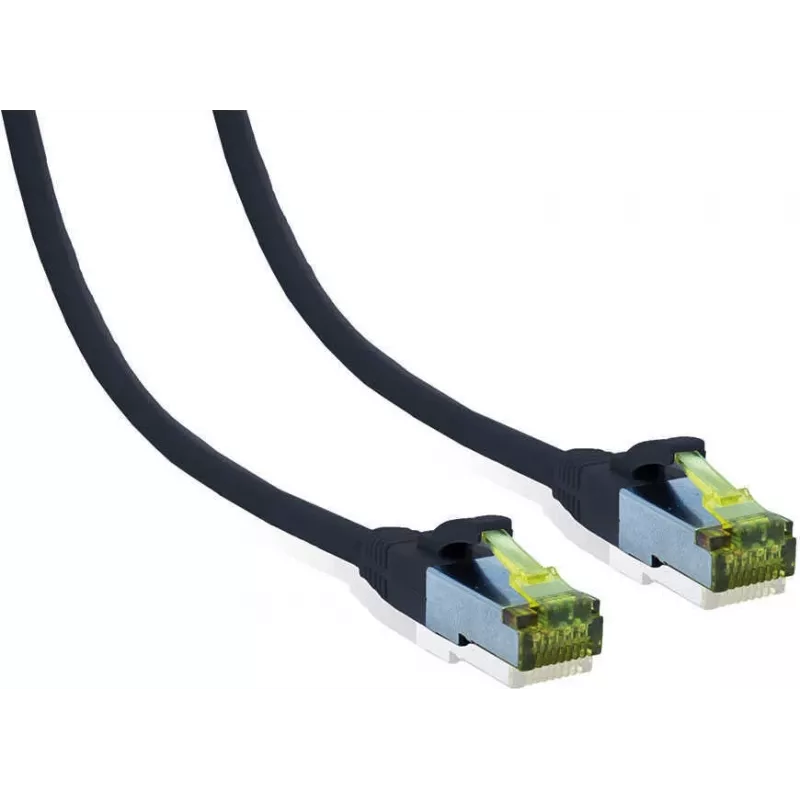

IT-BUDGET Full Copper Premium Patch Cable - Cat.6A with Cat.7 Raw Cable - 600 MHz - Halogen-Free - PoE+ - 10Gbit - Black - 0.5 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Ethernet cable designed for demanding network environments. It combines Cat.6A performance with a Cat.7 raw cable construction, ensuring superior signal integrity and reliability. With 600 MHz bandwidth and support for 10 Gigabit Ethernet, this cable is ideal for data centers, server rooms, and professional installations.

Advantages

This patch cable offers exceptional value with its full copper conductors, S/FTP shielding, and LSZH jacket. It supports PoE, PoE+, and PoE++ for powering devices like IP cameras and access points. The stranded construction provides flexibility for easy routing in tight spaces.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• High-speed data transmission up to 10 Gbps
• Power over Ethernet applications (PoE/PoE+/PoE++)
• Environment requiring low smoke and zero halogen materials

Key specifications

• Ethernet Category: Cat.6A (Class EA) with Cat.7 raw cable
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBase-T)
• Bandwidth: 600 MHz
• Shielding: S/FTP (PiMF) - Pairs in Metal Foil, Overall Braided Shield
• Conductor Material: 100% Copper (Full Copper)
• Conductor Gauge: AWG 26/7 stranded
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Connector Type: RJ45 (8P8C) with gold-plated contacts
• Length: 0.5 meters
• Color: Black
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10
• Operating Temperature: -20°C to 60°C
• Outer Diameter: Approx. 6.0 - 6.5 mm

Recommendations

For optimal performance, use this cable with Cat.6A or higher compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is halogen-free, making it suitable for use in ventilated areas where safety is a priority.
