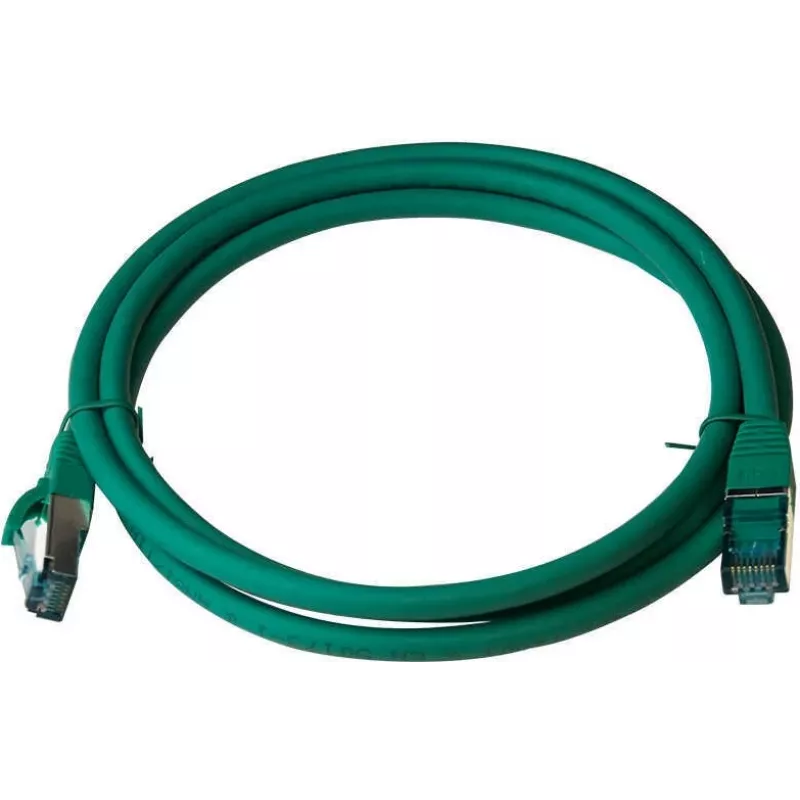

IT-BUDGET Full Copper Premium Patch Cable Cat.6A 500 MHz LSZH PoE+ AWG 26/7 Green 0.50 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A (Class EA) patch cable designed for demanding network environments. With a bandwidth of 500 MHz, it supports 10 Gigabit Ethernet (10GBASE-T) and is fully backward compatible with lower categories. The cable features full copper stranded conductors (AWG 26/7) for excellent signal integrity and flexibility. Its LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, complying with IEC 60332-1 flame retardancy. PoE+ (IEEE 802.3at) support allows power and data transmission over a single cable, ideal for IP cameras, VoIP phones, and wireless access points. The cable is terminated with RJ45 connectors wired to TIA/EIA 568B standard. Color: Green. Length: 0.50 m.

Advantages

Full copper conductors provide superior conductivity and durability compared to copper-clad aluminum (CCA). LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it suitable for public and industrial areas. PoE+ capability simplifies installation by eliminating separate power cables. Stranded conductors offer flexibility for frequent movement and tight spaces.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Home and office networking
• PoE+ devices such as IP cameras, access points, and VoIP phones
• 10GBASE-T applications

Key specifications

• Cable Standard: Cat.6A (Class EA)
• Frequency: 500 MHz
• Conductor: Full Copper, AWG 26/7 (stranded)
• Jacket: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Length: 0.50 m
• Color: Green
• Connectors: RJ45 Male to RJ45 Male
• Wiring: TIA/EIA 568B
• Pairs: 4
• Application: 10 Gigabit Ethernet (10GBASE-T)
• Flame Retardancy: IEC 60332-1
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance in high-speed networks, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain signal integrity.
