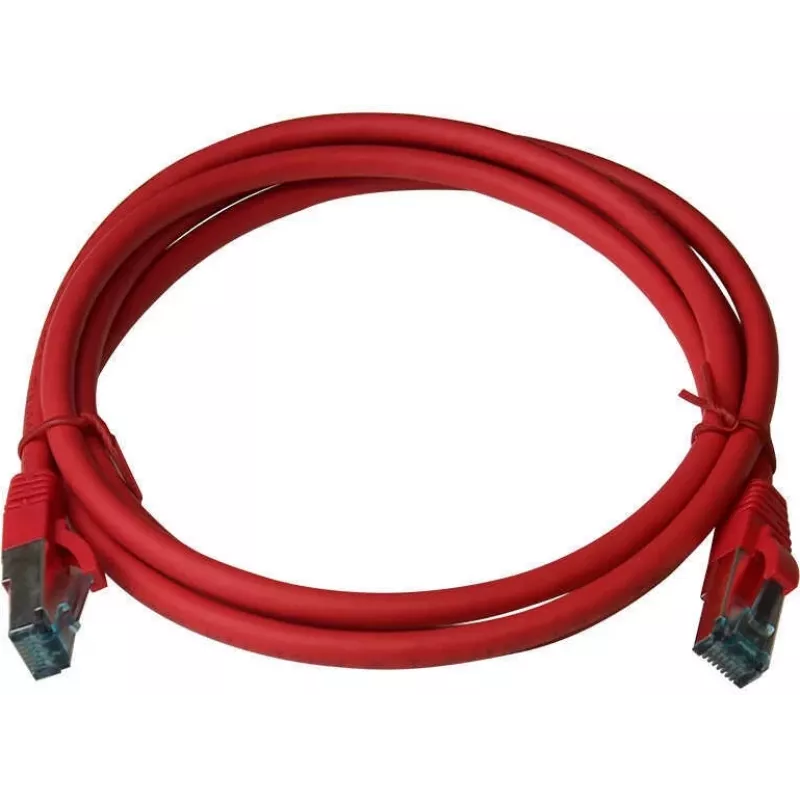

IT-BUDGET Full Copper Premium Patch Cable - Cat.6A - 500 MHz - Halogen-Free - PoE+ - AWG 26/7 - Red - 1.50 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A Ethernet cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures fast and reliable data transmission. The full copper conductors (26 AWG stranded) provide excellent signal integrity, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces. PoE+ compliant, it can power devices such as IP cameras and wireless access points. Ideal for data centers, server rooms, and professional LAN installations.

Advantages

Full copper construction ensures superior conductivity and durability compared to CCA (Copper-Clad Aluminum) cables. The Cat.6A standard supports 10 Gbps speeds over the full 100-meter distance, making it future-proof for high-bandwidth applications. LSZH jacket reduces toxic smoke and fumes in case of fire, complying with safety regulations. Stranded conductors provide flexibility for frequent movement and patching.

Suitable for

• Data centers and server rooms
• Enterprise local area networks (LAN)
• 10 Gigabit Ethernet (10GBASE-T) connections
• Power over Ethernet Plus (PoE+) devices
• High-density patching environments

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Category 6A)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Material: Full Copper
• Conductor Gauge: 26 AWG
• Conductor Type: Stranded (7-wire)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Cable Length: 1.50 m
• Color: Red
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA 568B
• Number of Pairs: 4
• Application: LAN, Ethernet
• Backward Compatibility: Cat.6, Cat.5e, Cat.5
• Certifications: RoHS, CE

Recommendations

For optimal performance, use with Cat.6A compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for both horizontal and patch cord applications.
