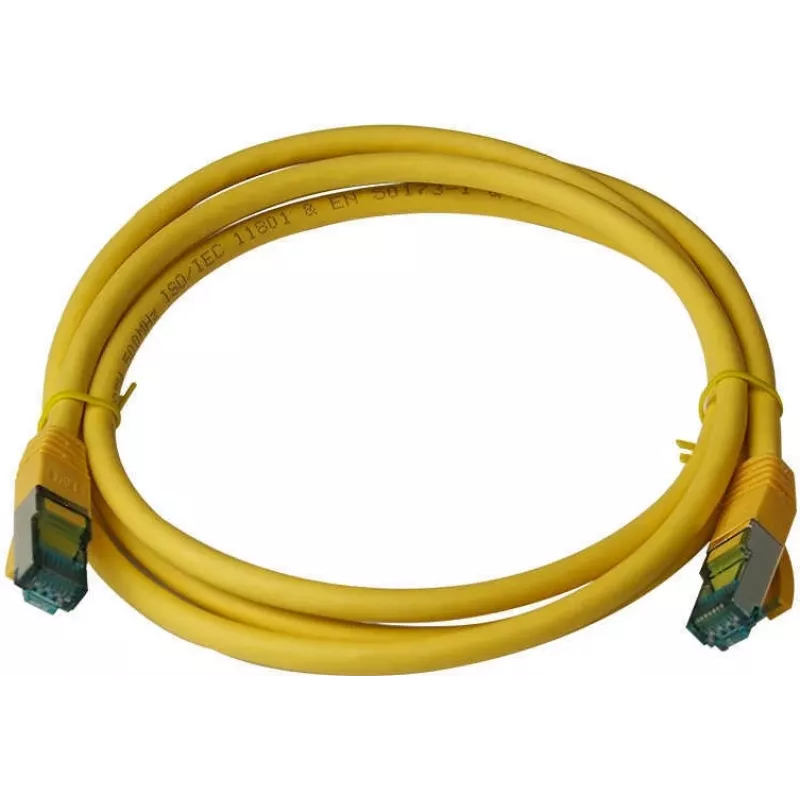

IT-BUDGET Full Copper Premium Patch Cable - Cat.6A - 500 MHz - Halogen-Free - PoE+ - AWG 26/7 - Yellow - 0.15 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A Ethernet cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures fast and reliable data transmission. It features full copper conductors (AWG 26/7 stranded) and a U/UTP design, making it ideal for PoE+ applications. The LSZH (Low Smoke Zero Halogen) jacket provides safety in case of fire, and the yellow color aids in easy identification. At 0.15 m, it is perfect for short connections in patch panels or between devices in a rack.

Advantages

Full copper conductors ensure superior signal integrity and performance compared to copper-clad aluminum (CCA) cables. The Cat.6A standard supports 10 Gigabit Ethernet over the full 100-meter distance, but this short 0.15 m cable is optimized for high-density patching. The LSZH jacket reduces toxic smoke and fumes in case of fire, making it suitable for public and commercial buildings. PoE+ support allows power and data over a single cable, simplifying installations for devices like IP cameras and wireless access points.

Suitable for

• Data center patching
• Server room connections
• Network switches to patch panels
• PoE+ devices (IP cameras, VoIP phones, access points)
• 10GBASE-T networks

Key specifications

• Cable Type: Patch Cable
• Network Category: Cat.6A (Category 6A)
• Bandwidth: 500 MHz
• Data Rate Support: 10 Gigabit Ethernet (10GBASE-T)
• Conductor Material: Full Copper
• Conductor Gauge: AWG 26
• Conductor Construction: Stranded (7 strands)
• Number of Conductors: 8 (4 pairs)
• Cable Shielding: U/UTP (Unshielded Twisted Pair)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Cable Length: 0.15 m
• Cable Color: Yellow
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Scheme: T568B Straight-Through
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance in high-speed networks, use this Cat.6A patch cable with compatible 10GBASE-T equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is not suitable for outdoor or direct burial applications.
