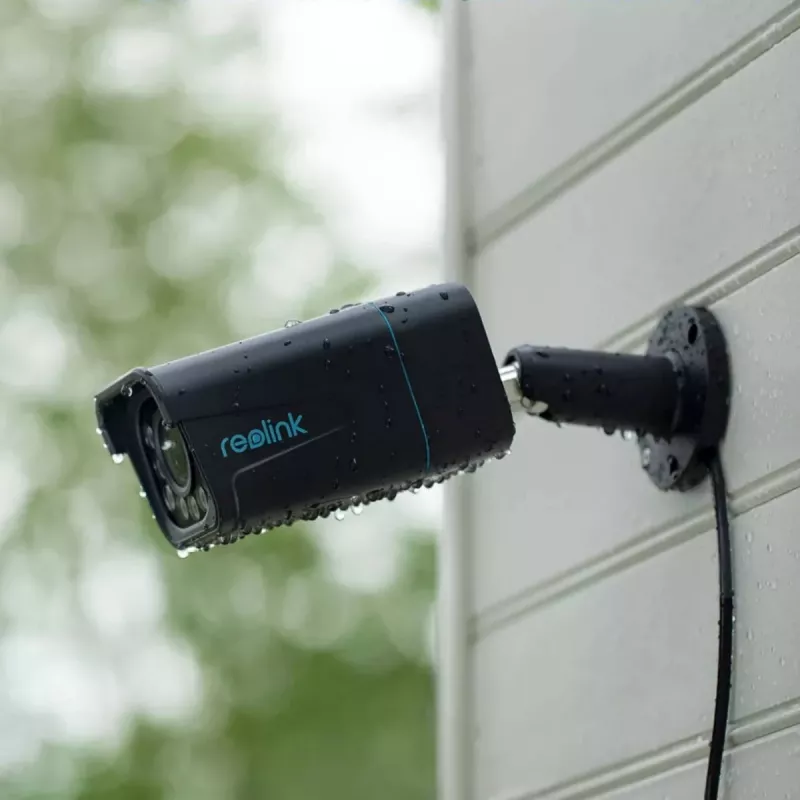

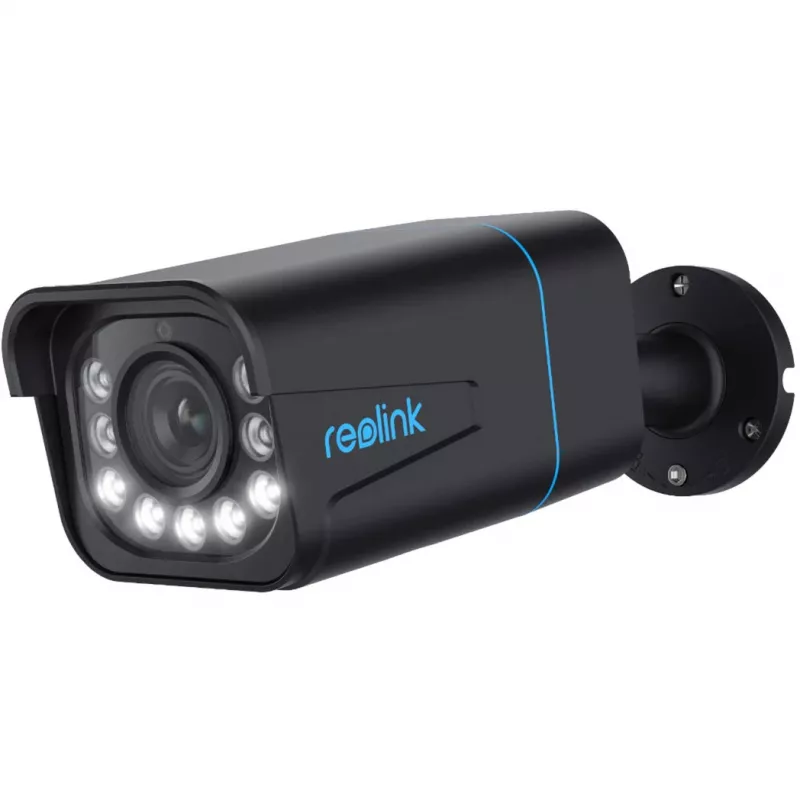

IP security camera Reolink P430 Standard — bullet, 8 MP (3840×2160), 5× optical zoom, IP67, PoE/DC, microSD up to 256 GB

Reolink P430 Standard is a wired IP bullet camera designed for indoor and outdoor surveillance. It integrates an 8 MP CMOS sensor with a maximum resolution of 3840×2160 and a 5× optical zoom (focal length 2.7–13.5 mm). The camera supports H.265 compression at up to 25 fps, IR night vision up to 30 m, two-way audio with built-in microphone and speaker, and local storage on a microSD card up to 256 GB. The housing is weatherproof (IP67) and the unit can be powered via PoE or DC (12/48 V), with a maximum power consumption of 12 W.

Advantages

The camera provides high-resolution 8 MP video and a 5× optical zoom for clear close-up details while preserving image quality. H.265 compression reduces bandwidth and storage usage. IP67-rated housing allows use in outdoor environments, and dual power options (PoE and DC) simplify installation. Two-way audio and integrated IR LEDs enable communication and monitoring in low-light conditions.

Suitable for

• Home exterior and interior monitoring
• Small business and retail surveillance
• Parking lots and entrances
• Perimeter and property protection

Key specifications

• Camera type: Wired IP bullet camera
• Image sensor: 1 × CMOS, 1/2.8" optical sensor size
• Resolution: Up to 3840 × 2160 (8 MP)
• Frame rate: 25 fps
• Lens: 2.7–13.5 mm, 5× optical zoom, maximum aperture f/1.6
• Viewing angles: Vertical 17–55°, Horizontal 31–100°

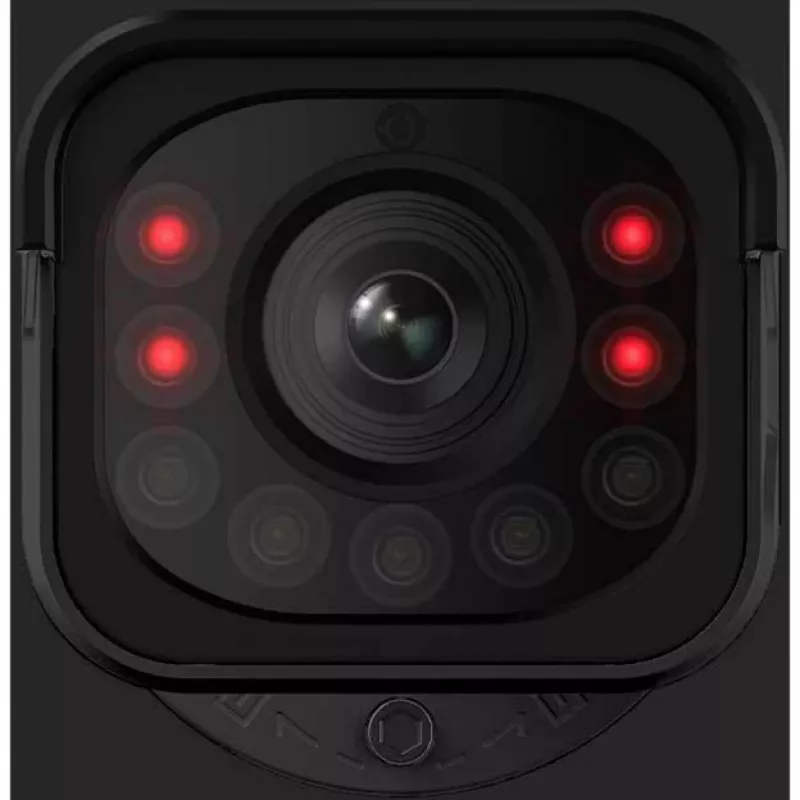

• Night vision: IR LEDs (4), range up to 30 m, wavelength 850 nm
• Video compression: H.265
• Audio: Built-in microphone and speaker; 2-way audio; bit rate range 64–8192 Kbit/s
• Storage: microSD card support up to 256 GB (card reader integrated)
• Network: Fast Ethernet (RJ-45); supported protocols include TCP/IP, HTTP, HTTPS, RTSP, RTMP, ONVIF and others
• Power: PoE (IEEE 802.3af) or DC (12/48 V), max 12 W
• Operating conditions: Temperature -10 to 50 °C, humidity 10–90% (non-condensing)
• Dimensions & weight: 238 × 80 × 72 mm; weight 838 g
• Mounting: Wall mount; mounting kit and LAN (RJ-45) cable included

How to use

Mount the camera using the supplied mounting kit on a stable wall surface and route the network cable to the camera’s RJ-45 port. Provide power either via PoE switch/injector (IEEE 802.3af) or a compatible DC power supply (12 V or 48 V) connected to the DC-in jack. Insert a compatible microSD card (up to 256 GB) for local recording if required. Configure network settings and user accounts through the Reolink app or a supported management system using the camera’s IP address and available protocols (ONVIF, RTSP, etc.). Adjust zoom and viewing angle using the lens controls in the app or management software and verify night vision and two-way audio operation.

Recommendations

For reliable outdoor performance, install the camera under minimal direct exposure to heavy rain when possible and use PoE for simpler single-cable installation. Format microSD cards in the camera before first use and limit recorded frame rate or enable H.265 to reduce storage consumption. Regularly check firmware updates and use secure credentials and HTTPS when configuring remote access.
