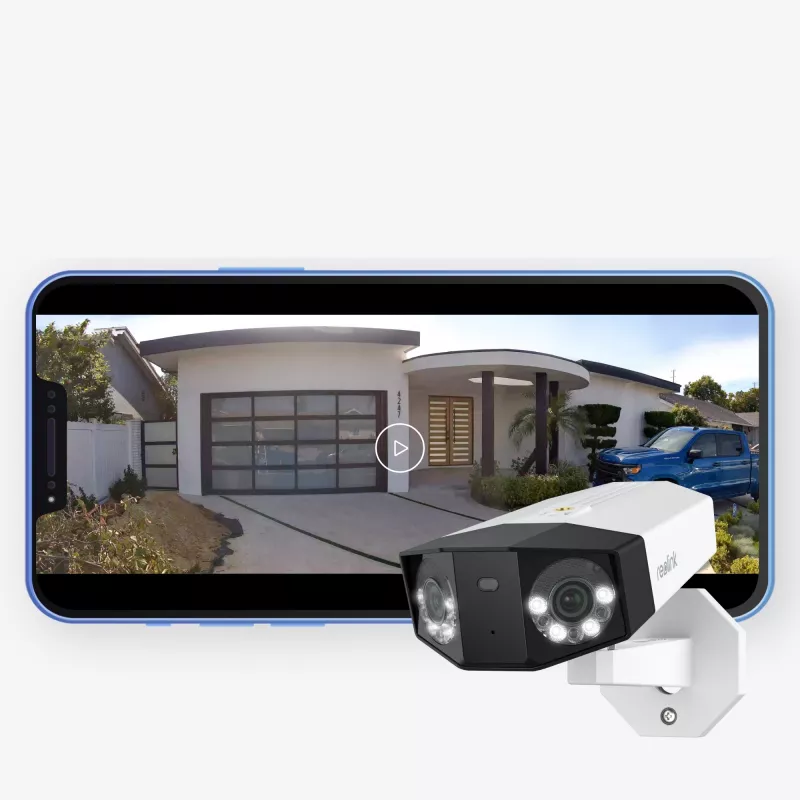

IP security camera Reolink DUO Series P750 outdoor bullet 16 MP 7680×2160 CMOS 1/2.7 inch 2.8 mm 180°×55° PoE IP67 built-in light mic speaker

First 16MP UHD Dual-Lens PoE security camera provides a 180° panoramic view for wide-area monitoring. The camera features dual-lens design with 16MP resolution (7680 x 2160) on a 1/2.7" CMOS sensor and supports wired Ethernet LAN with Power over Ethernet (PoE). Built for outdoor use, the device is IP67 rated and comes in white or black finish.

Advantages

The dual-lens configuration and 180° panorama reduce blind spots and allow a single camera to cover large scenes. High 16MP UHD resolution delivers detailed images suitable for identification and evidence. PoE connectivity simplifies installation by combining power and network over one cable. IP67 weatherproofing and a bullet wall form factor make the camera suitable for outdoor mounting. Integrated spotlight night vision and motion tracking improve detection and recording quality after dark.

Key specifications

• Image sensor: CMOS 1/2.7"
• Resolution: 16 MP (7680 x 2160)

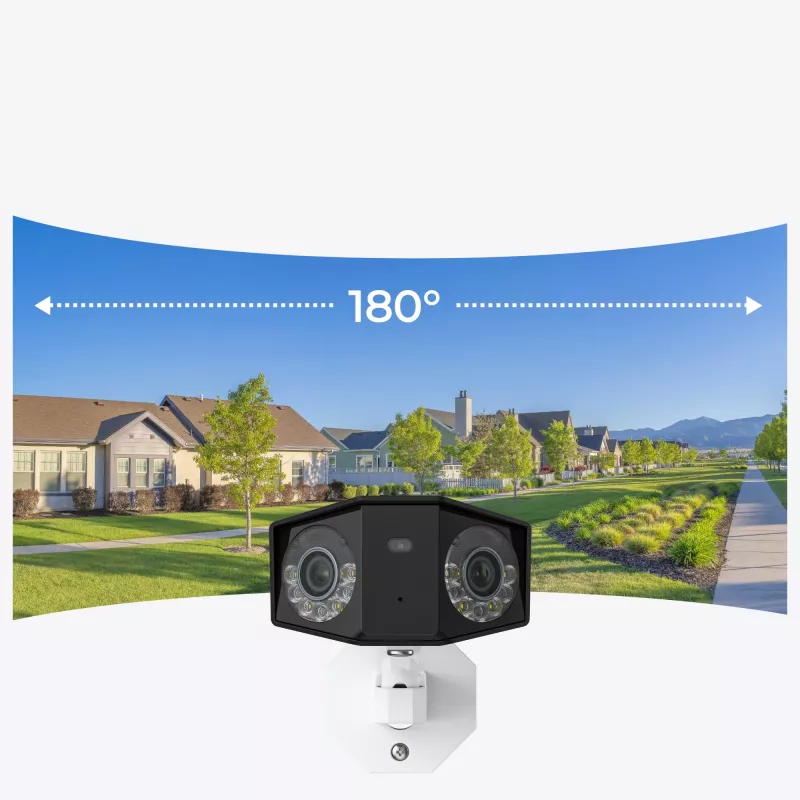

• Field of view: 180° panoramic
• Night vision: IR up to 30 m; spotlight-assisted
• Connectivity: Wired Ethernet LAN, PoE
• Housing: Bullet wall mount
• Weather rating: IP67
• Colors: White, Black
• Weight: 680 g

How to use

Mount the camera on a stable wall or surface using appropriate anchors for the chosen substrate and align to cover the desired panorama. Connect the camera to a PoE-capable network switch or injector using an Ethernet cable to supply power and data. Configure the camera through the provided software or web interface: set resolution, enable motion tracking and spotlight night vision, and adjust recording schedules or alerts. Regularly check seals and cable entries to maintain IP67 protection.

Recommendations

For optimal coverage, install the camera at a height that balances field of view and identification needs (typically 2.5–4 m). Use a PoE switch rated for the camera's power draw and ensure firmware is kept up to date. For extended night performance, combine the spotlight night vision with proper scene lighting and position to avoid direct glare into the lens.
