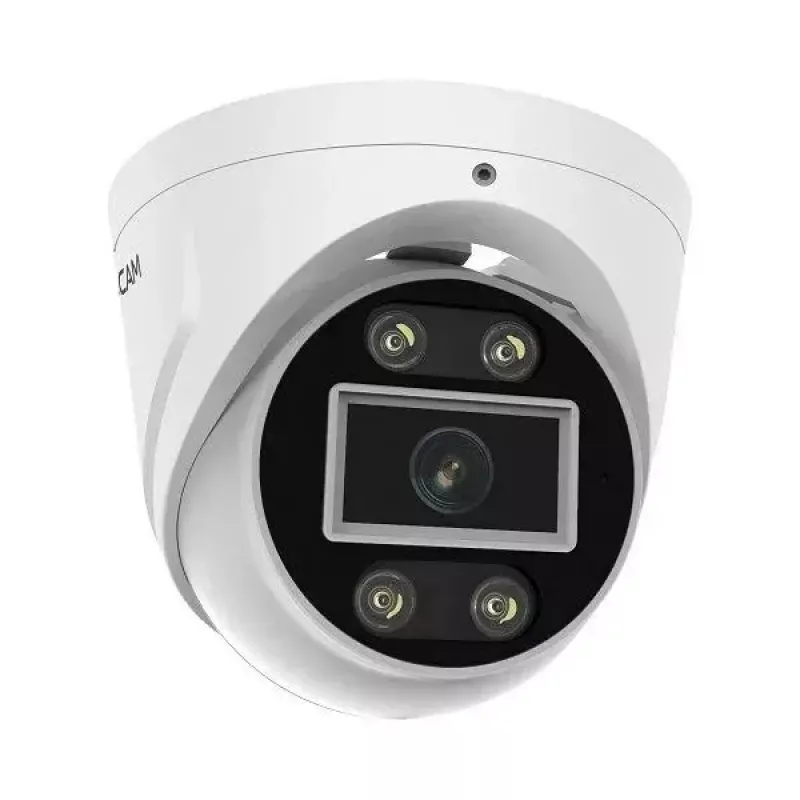

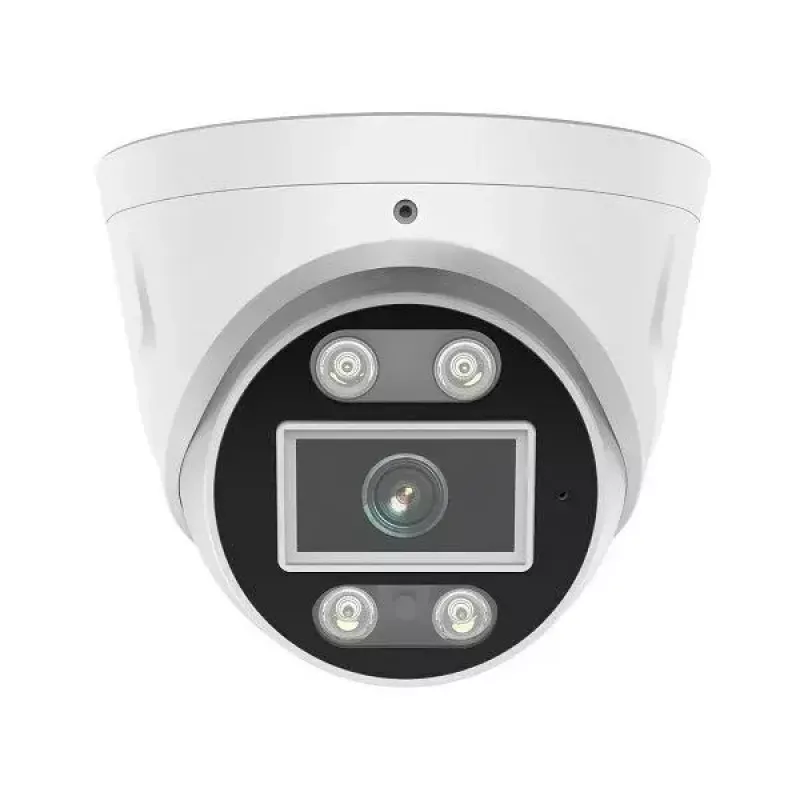

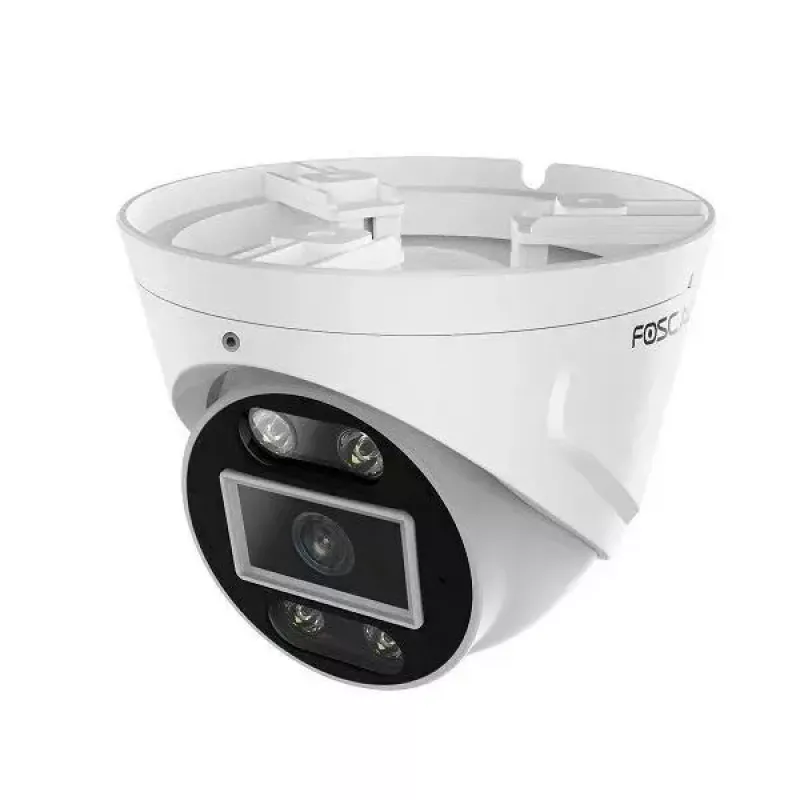

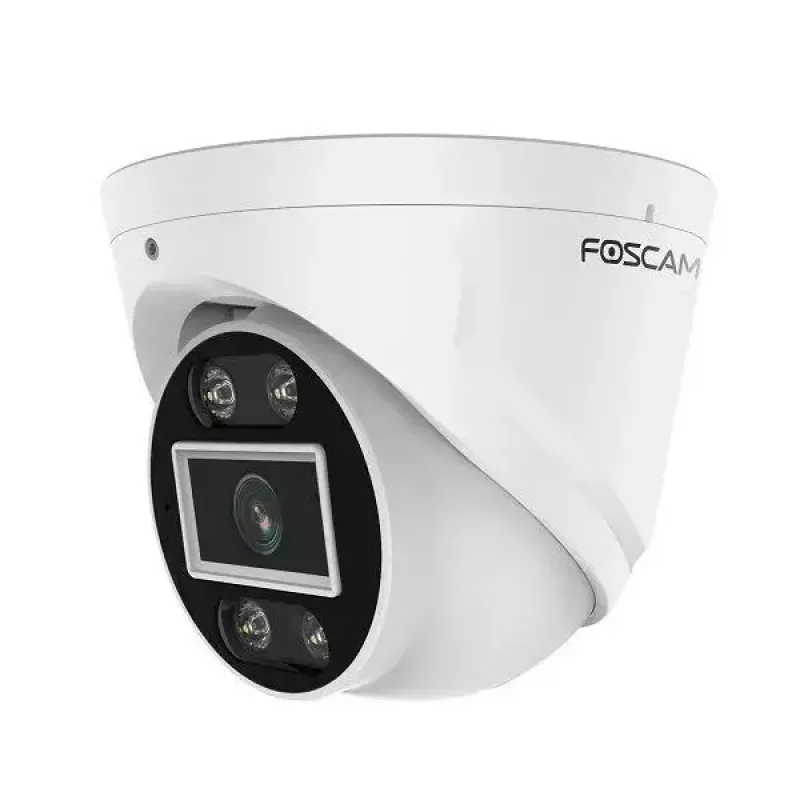

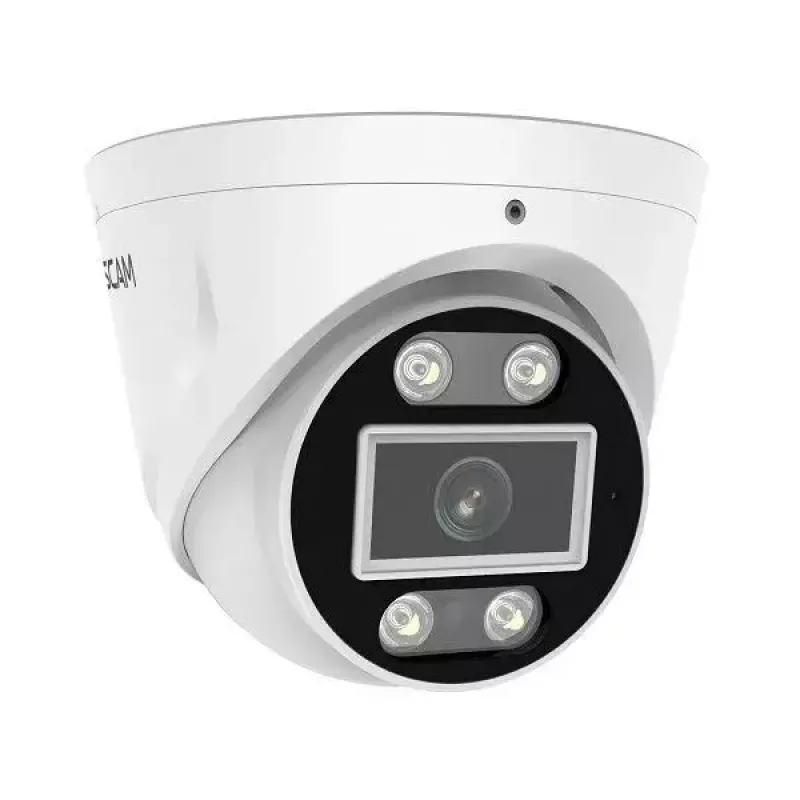

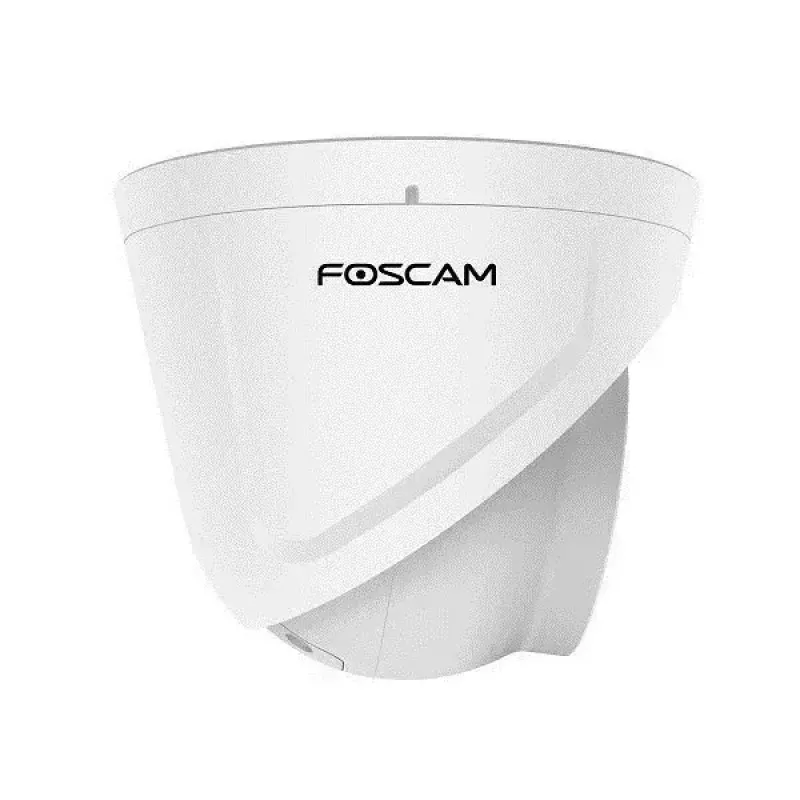

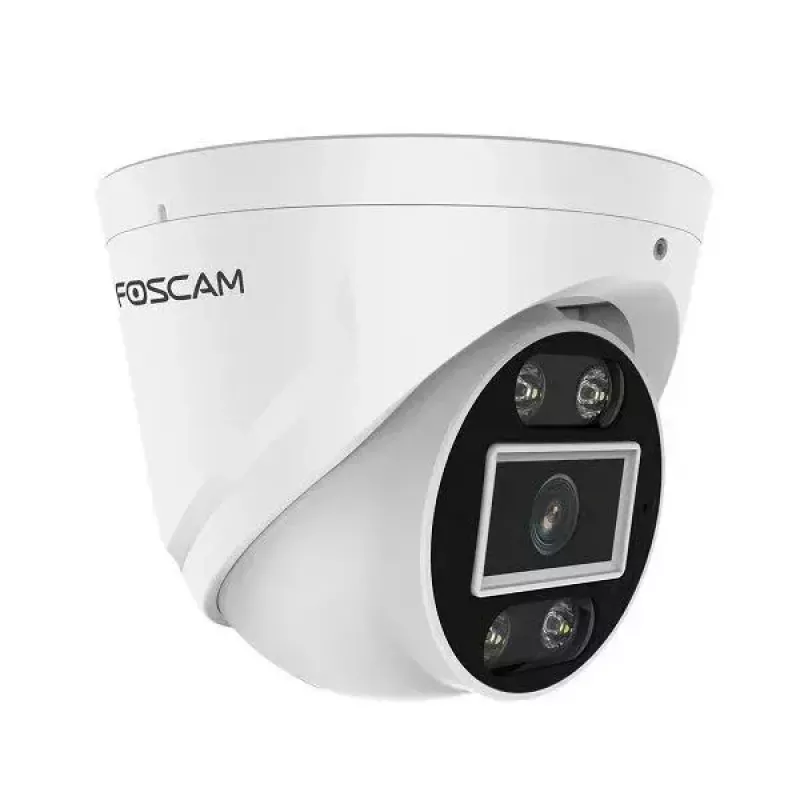

IP security camera Foscam T5EP 5MP PoE dome, 3072×1728, 4 mm lens, PoE (IEEE 802.3af), IP66, night vision 20 m, microSD up to 256 GB

The FOSCAM T5EP is a 5 MP PoE IP security camera in a dome form factor designed for outdoor wall mounting. It features weatherproof construction with an IP66 rating, built-in illumination and night vision up to 20 m, integrated audio (two-way speaker and microphone), a built-in siren, and local microSD storage support. The camera supports wired Ethernet with IEEE 802.3af PoE, H.264+ video compression, and multiple network protocols for remote streaming and notifications.

Advantages

The camera offers high-resolution 5 MP imaging with WDR and adjustable saturation, infrared LEDs for night operation, and a built-in light to improve image quality in low light. PoE power simplifies installation by combining data and power over a single cable. Vehicle detection, motion detection and e-mail alerts provide basic intelligent surveillance functions, while compatibility with Amazon Alexa and Google Assistant enables integration with smart-home systems.

Suitable for

• Outdoor perimeter monitoring for homes and small businesses
• Driveways and parking areas with vehicle detection
• Entries and exterior doors requiring weatherproof surveillance

Key specifications

• Type: IP security camera, dome
• Image sensor: 1× CMOS, 5 MP total
• Maximum resolution: 3072 × 1728 pixels; supported mode: 1080p
• Lens: fixed 4 mm focal length, horizontal 78°, diagonal 94°, vertical 43.6°
• Aperture: f/2.1; digital zoom: 6×
• Video formats: H.264+; frame rate: 25 fps
• Day/night: yes; IR LEDs (4) with night vision up to 20 m; built-in light
• Wide Dynamic Range (WDR): yes
• Audio: built-in microphone and speaker; 2-way audio; AAC
• Siren: built-in, 100 dB; alert via e-mail
• Storage: integrated microSD card slot, up to 256 GB
• Network: Fast Ethernet (RJ-45), multicast streaming, protocols IP/TCP/UDP/SMTP/FTP/DHCP/RTSP; IEEE 802.3af PoE
• Power consumption (max): 5 W; DC output 12 V, 1 A
• Operating conditions: temperature -20 to 50 °C; humidity 10–80% (operating)
• Ingress protection: IP66; weatherproof for outdoor placement
• Dimensions (H×W×D): 100 × 110 × 110 mm; weight: 380 g

How to use

Mount the dome camera on an exterior wall using the included screws and follow the manual for secure installation. Connect the camera to a PoE-enabled switch or injector via the RJ-45 Ethernet cable to supply power and network. Configure the device through the supplied software or a web interface, set motion and vehicle detection zones, and insert a compatible MicroSD card for local recording if required. Ensure network settings (DHCP or static IP) and e-mail alert parameters are correct for remote notifications.

Recommendations

Avoid direct contact with water to prevent electrical damage. For reliable operation, place the camera under minimal exposure to heavy spray and perform periodic inspections of seals and cable entries; use an appropriate PoE power source and keep firmware updated.
